Description

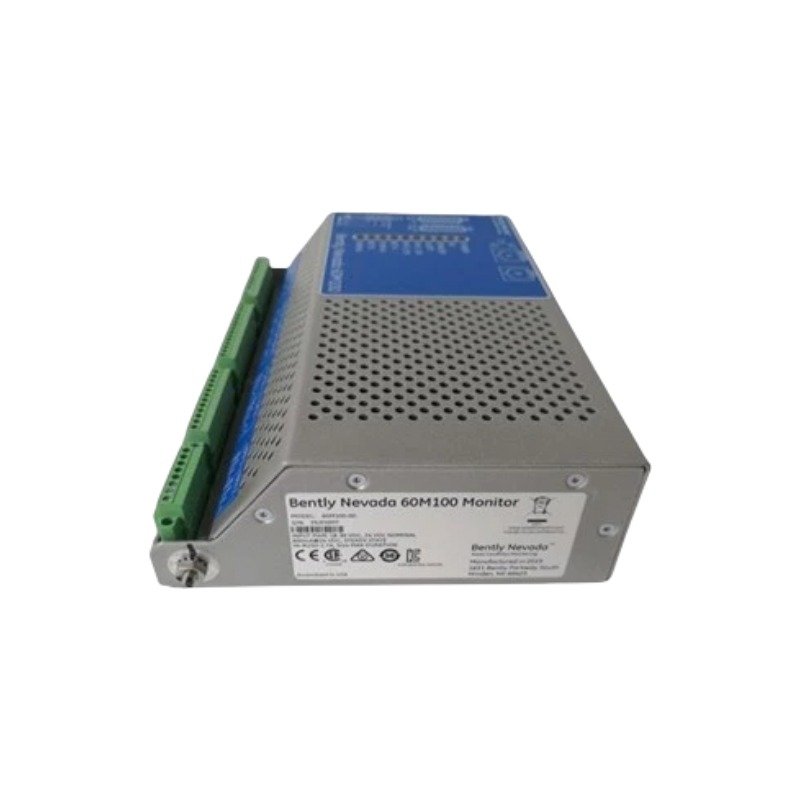

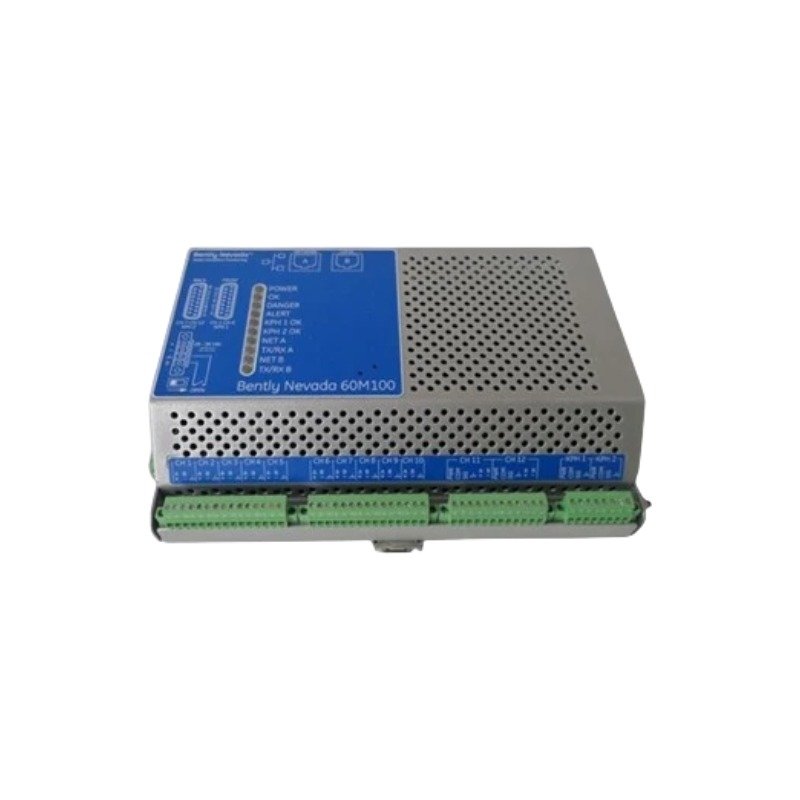

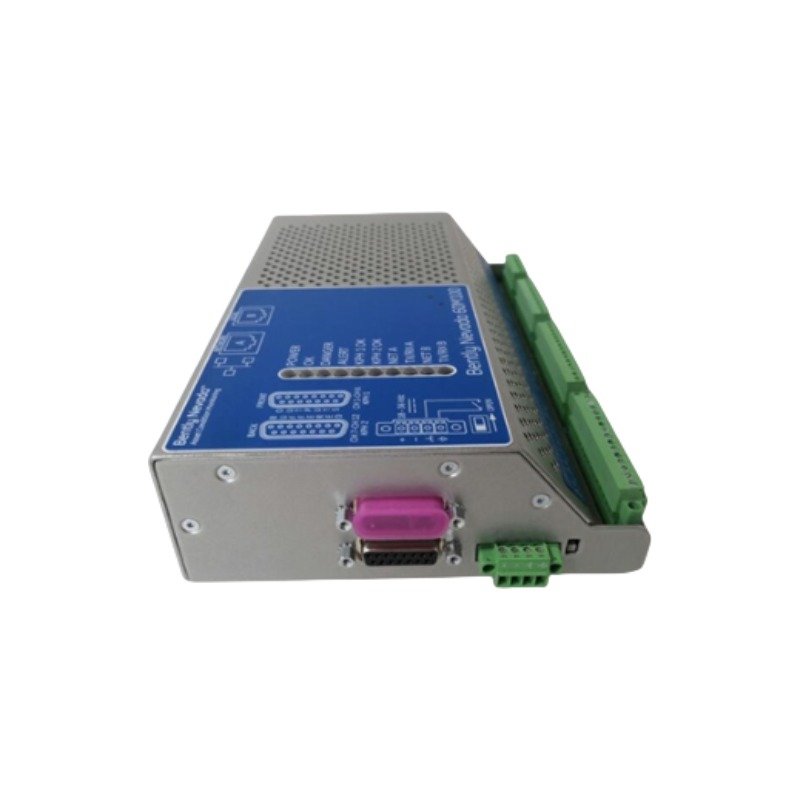

Configured for machinery protection and shaft dynamic measurement in Bently Nevada 3500 internal networks, the Bently Nevada 60M100-00 (60M100 Internal Data Manager) provides direct physical/electrical execution. The module handles high-speed digital communications between the backplane bus and diagnostic host processors, enabling continuous capture of dynamic waveform data alongside static proportional parameters without interrupting core transient protection capabilities.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The hardware evaluates dynamic variables across critical mechanical sub-assemblies, focusing on tower sway, main bearings, main rotors, generator bearings, and multi-stage gearboxes including internal bearings and gear meshes. Concurrently, the system incorporates real-time gap voltage validation (-10 VDC targets) to diagnose proximity transducer health. Furthermore, advanced cross-talk suppression protocols safeguard dense multichannel arrays. Consequently, this architecture allows accurate digitization of high-frequency rotor dynamics and debris sensor transients, preventing electrical noise from corrupting high-reliability turbine assets.

Frequently Asked Questions

Q: How does the 60M100-00 handle external data transmission to host diagnostic suites?

A: The system transmits data via Ethernet TCP/IP connections using proprietary protocols, thereby establishing a direct digital link to external ADAPT software platforms.

Q: What specific mechanical components does this module monitor?

A: The module executes concurrent tracking of tower sway, main rotor dynamics, generator grounding integrity, debris monitoring metrics, and localized bearing or gear mesh profiles.

Field Installation Guidelines

• Mount the unit securely on standard industrial structural supports, ensuring proper alignment to facilitate passive thermal dissipation.
• Route all instrumentation signal cables through dedicated, isolated conduits in order to prevent electromagnetic cross-talk from high-voltage generator lines.
• Terminate the external shielding of all sensor cables at a single-point instrument ground, thus maintaining signal integrity across long physical runs.
