Description

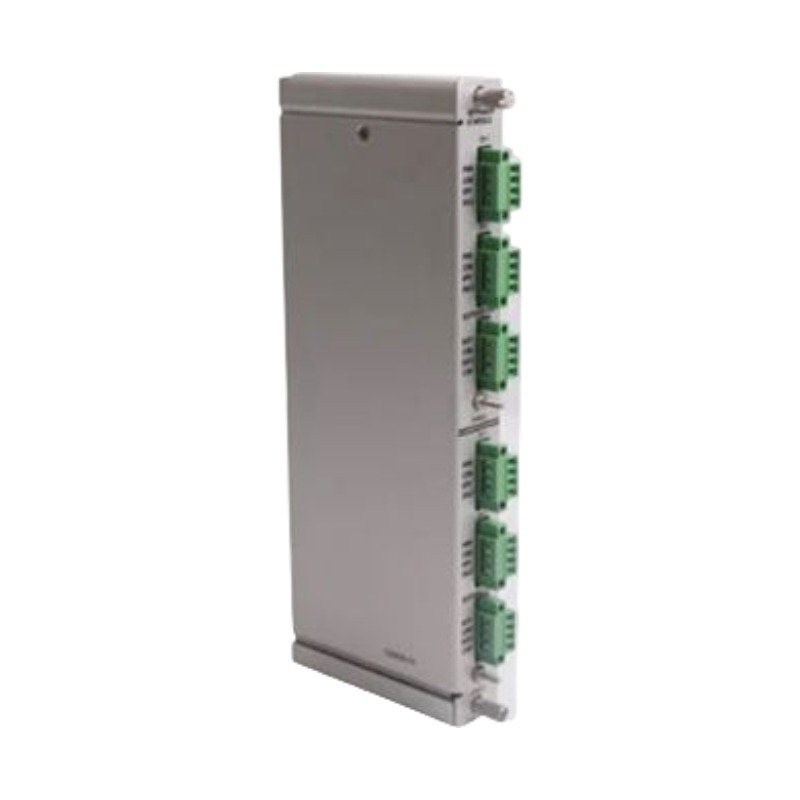

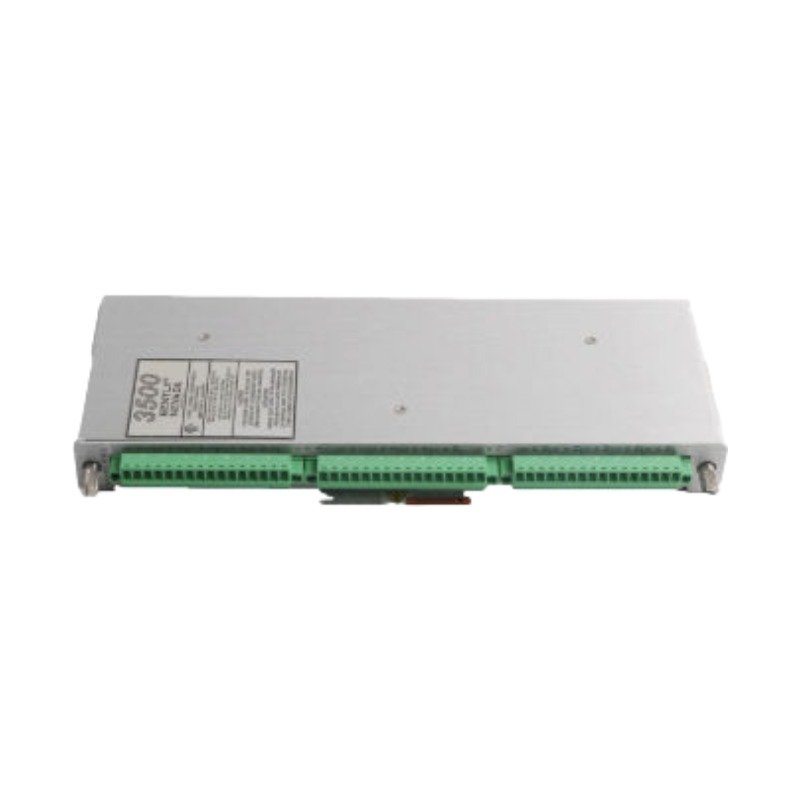

Configured for high-speed machinery monitoring and steady-state wave form data acquisition in the 3500 Monitoring System, the Bently Nevada 146031-02, also cataloged as the 3500/22M Transient Data Interface Module, provides direct physical/electrical execution. This module processes static and dynamic signals from proximity probes, seismic transducers, and acceleration sensors mounted on rotating machinery. The component passes these digitized values to the system backplane and external communication networks without degrading signal fidelity.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 3500/22M executes continuous eddy-current probe scaling across all connected channels to translate raw voltage changes into precise micron-level physical displacement. During initial power-up and runtime diagnostic loops, the internal microprocessor triggers automated gap voltage validation (-10 VDC targets) to verify probe calibration and detect sensor open or short circuits. Cross-talk suppression algorithms isolate high-frequency adjacent signals, ensuring clean data collection during severe rotor dynamics events such as machine surge or critical speed transitions.

Frequently Asked Questions

Q: Does the 3500/22M module support hot-swap replacement during active system monitoring?

A: Yes. Technicians can execute a hot-swap replacement of the main module under live backplane power without interrupting the operation of adjacent monitoring modules, provided the associated rack protection functions are temporarily bypassed.

Q: What causes a configuration mismatch error upon inserting the 146031-02 into an older 3500 rack?

A: This error indicates a firmware flash compatibility conflict. The rack interface software and the backplane main controller firmware must match or exceed the minimum baseline version required by the M-series hardware architecture.

Field Installation Guidelines

• Shield Grounding Protocol: Terminate all coaxial and twisted-pair instrument shields exclusively at the 3500 rack common ground bar. Never ground the shield at both ends to prevent the formation of ground loops that induce 50/60 Hz electrical noise.
• Physical Alignment: Insert the module into the designated slot along the card guide rails until the rear connectors lock completely into the backplane. Tighten the two integrated captive panel screws to a torque rating of 0.56 N-m to maintain grounding continuity.
• Signal Separation: Route the dynamic signal cables through dedicated, isolated low-voltage conduits. Maintain a minimum clearance distance of 150 mm from high-voltage AC power lines to avoid electromotive induction artifacts in the vibration data streams.
