Description

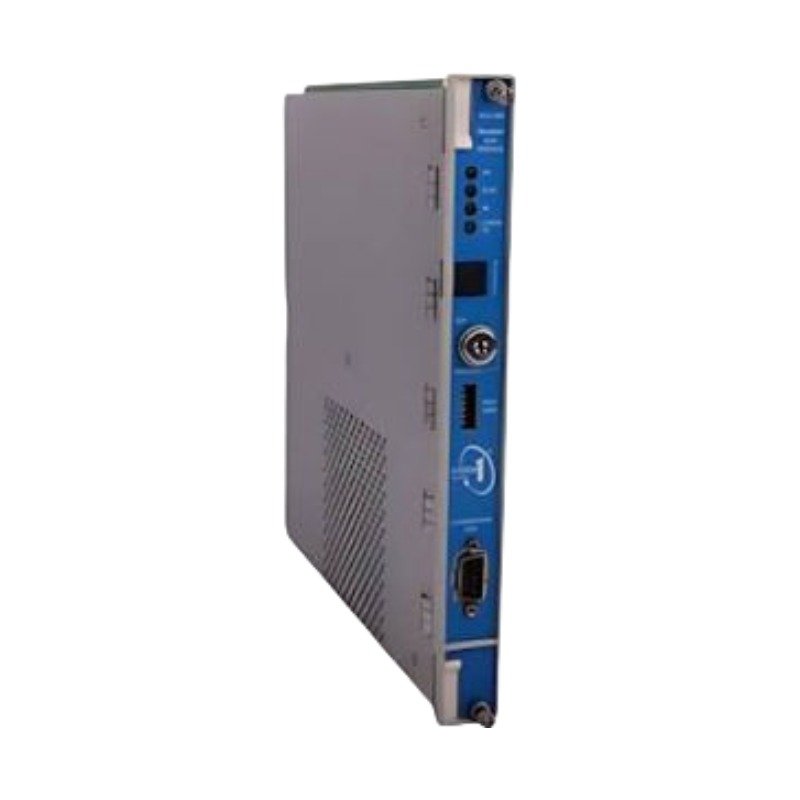

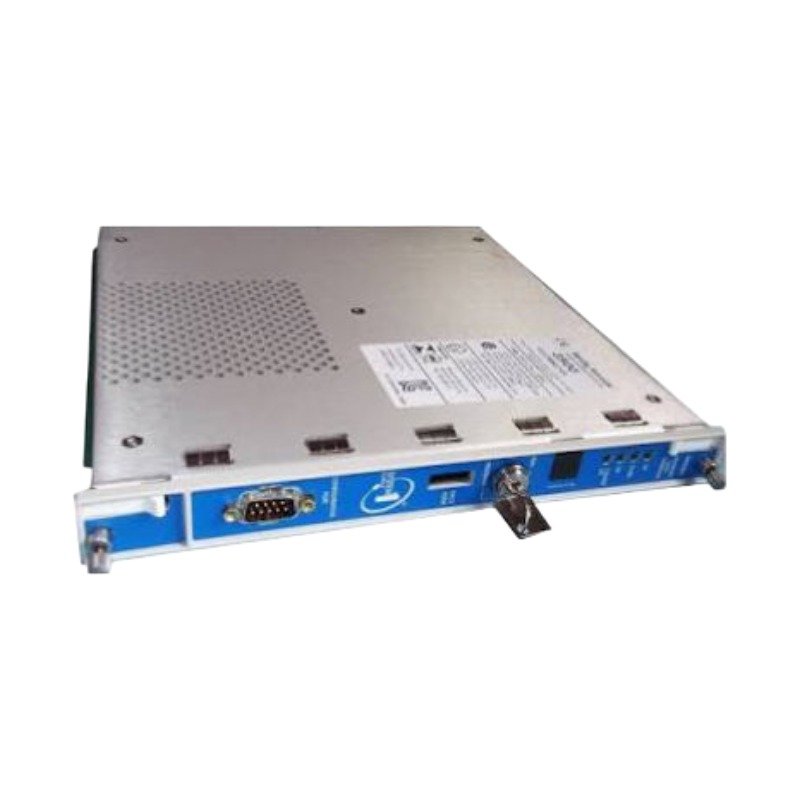

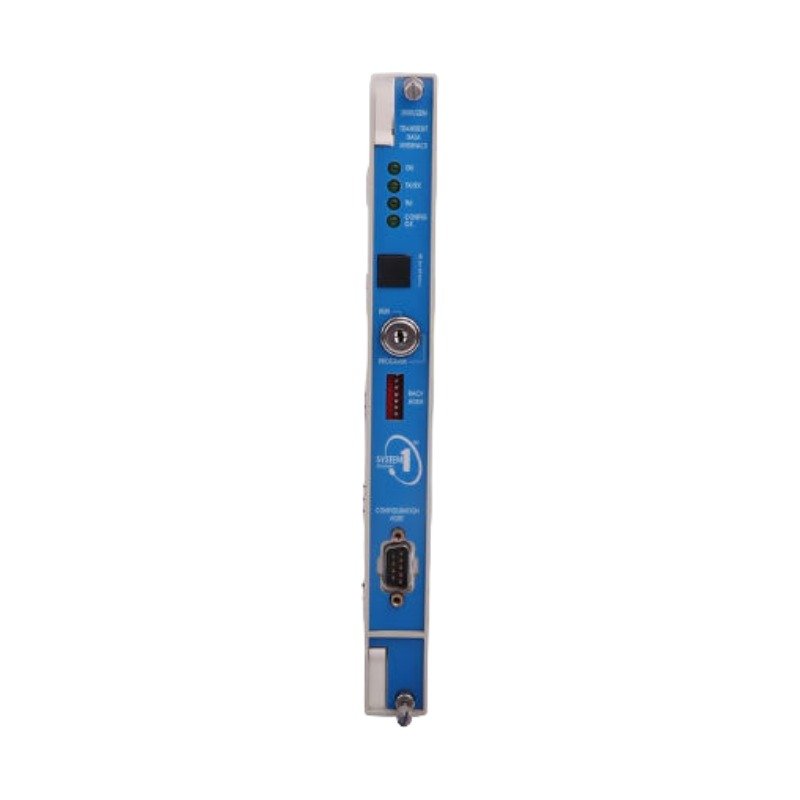

Configured for high-speed machinery monitoring and dynamic waveform data acquisition in the 3500 Monitoring System, the Bently Nevada 288055-01, also cataloged as the 3500/22M Transient Data Interface Module, provides direct physical/electrical execution. This updated hardware variant processes continuous static and dynamic signals from proximity probes, velocity transducers, and accelerometers mounted on rotating machinery assets. The component translates these physical inputs into digitized data packets and routes them across the system backplane and dedicated Ethernet interfaces without compromising data continuity.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 3500/22M executes continuous eddy-current probe scaling to precisely track micro-inch shaft displacement under harsh operating conditions. Consequently, the module runs continuous gap voltage validation (-10 VDC targets) across all input channels to verify field sensor calibration and detect structural probe drift. During rapid machine acceleration, the onboard processor activates cross-talk suppression filters to neutralize adjacent sensor field interference, capturing clean phase and amplitude metrics during critical rotor dynamics transitions.

Frequently Asked Questions

Q: How does the 288055-01 variant differ from older 146031 series 3500/22M modules during backplane communication?

A: The 288055-01 utilizes upgraded communication internal circuitry that minimizes data latency. However, it requires updated 3500 Rack Configuration Software versions to recognize the specific board revision during network mapping.

Q: Can the 288055-01 module operate reliably if the redundant power supply fails?

A: Yes. The module draws power directly from the dual-redundant 3500 backplane. If one power supply drops voltage, the module transfers its full load to the secondary supply line with zero data loss or communication interruption.

Field Installation Guidelines

• Shield Grounding Protocol: Terminate all coaxial transducer shields at the instrumentation ground bus inside the 3500 rack enclosure. Never ground the shield at the sensor housing end because dual-ended grounding introduces ground loops that corrupt vibration waveforms.
• Physical Slot Alignment: Slide the module firmly along the rack chassis guides until the heavy-duty rear pin connectors mate squarely with the backplane. Tighten the top and bottom captive screws to 0.56 N-m of torque to establish structural bonding and electrical chassis grounding.
• Ethernet Cabling Separation: Route the dedicated transient data Ethernet cables through grounded steel conduit channels. Keep these lines at a distance greater than 200 mm from variable speed drive output lines to prevent electromagnetic noise coupling into the transient data streams.
