Description

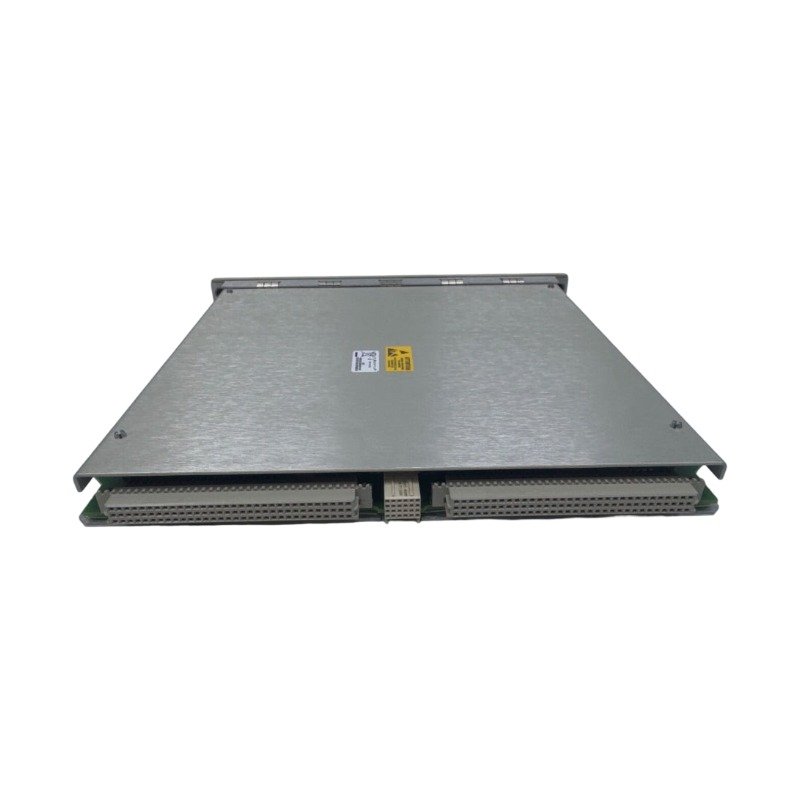

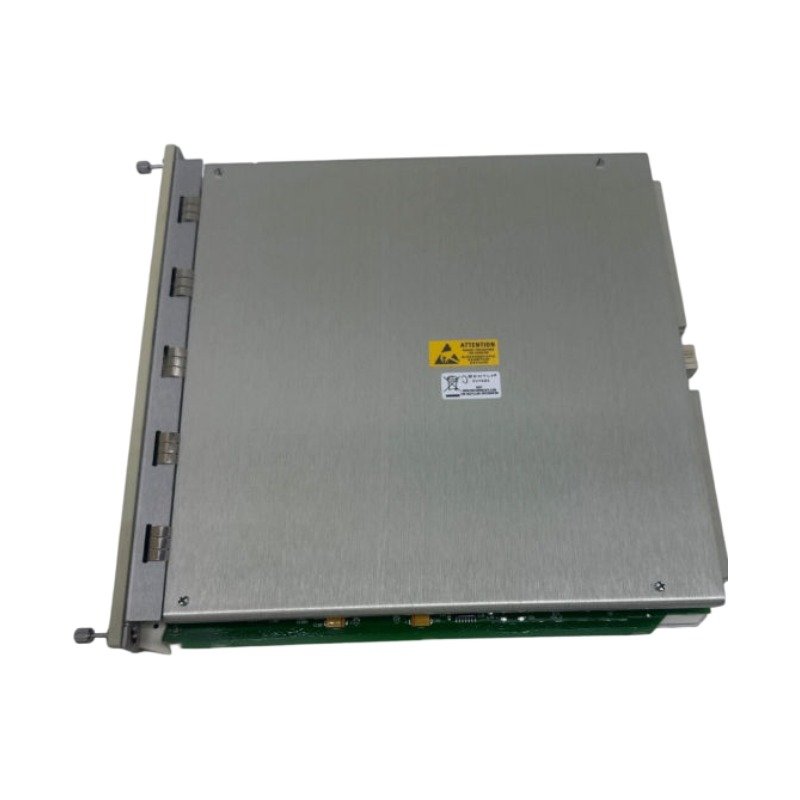

The Bently Nevada 3500/22M 138607-01 serves as the primary 3500/22M Transient Data Interface utilized to execute steady-state and transient machinery dynamic data acquisition across Bently Nevada 3500 Machinery Protection System platforms.

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The 138607-01 processing architecture handles the high-resolution vector calculations necessary to reconstruct intricate rotor dynamics during machine state changes. By reading native backplane signals from neighboring proximity monitors, the module manages internal eddy-current probe scaling protocols to track precise micro-inch shaft displacement. To ensure measurement integrity under multi-shaft environments, the card provides active cross-talk suppression between adjacent sensor circuits. Furthermore, the instrument requires precise gap voltage validation during loop commissioning to ensure that the sensor static DC offset targets the -10 VDC linear region, thereby protecting against clipped or distorted waveform captures during transient surge events.

Frequently Asked Questions

Q: What differentiates the 3500/22M 138607-01 module from the legacy 3500/20 Rack Interface Module?

A: The 3500/22M 138607-01 integrates the basic rack control tasks of a standard RIM with high-bandwidth communication hardware, enabling direct high-resolution transient waveform capture for diagnostic software without needing an external processing computer.

Q: How does the module handle a hardware configuration switchover when in run mode?

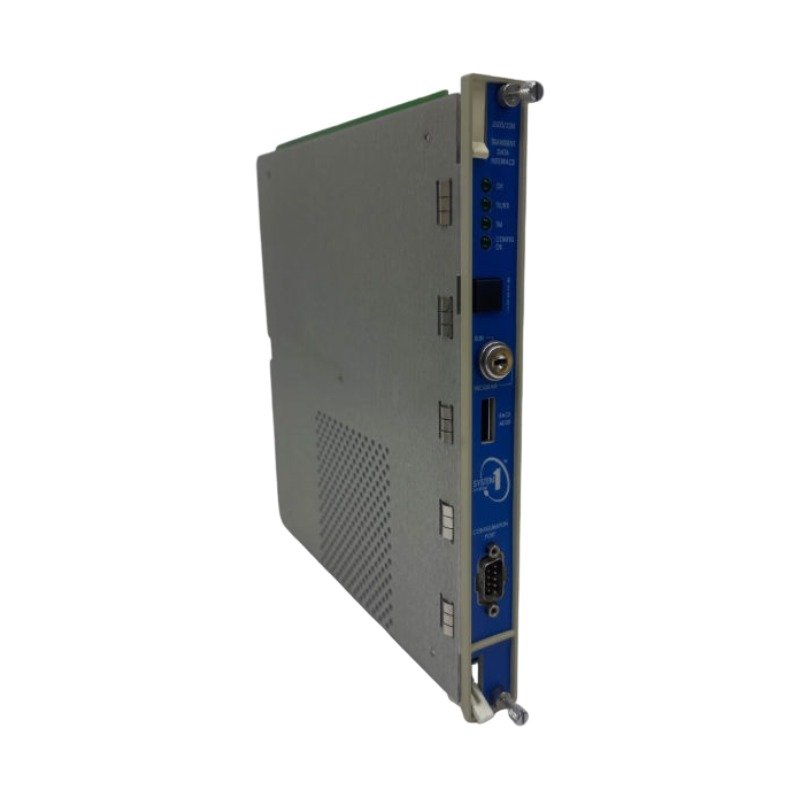

A: The front panel includes a physical four-position configuration keylock. Setting this switch to “RUN” locks the current configuration profile into non-volatile memory, preventing accidental parameter rewrites while maintaining a processing latency under 100 milliseconds across the rack bus.

Field Installation Guidelines

• Install the 138607-01 card exclusively into Slot 1 of the front 3500 chassis, directly situated next to the system power supply modules, to establish primary backplane master control.
• Verify that the 3500 rack chassis ground connection connects to the plant earth grid using a minimum 14 AWG copper strap to isolate the low-voltage diagnostic circuitry from common-mode noise.
• Disconnect all external communication links and completely disengage the top and bottom card ejector tabs prior to extracting the interface module during maintenance procedures.
• Tighten the two integrated front panel thumbscrews to ensure uniform backplane multi-pin connector alignment and prevent intermittent signal bus faults.
