Description

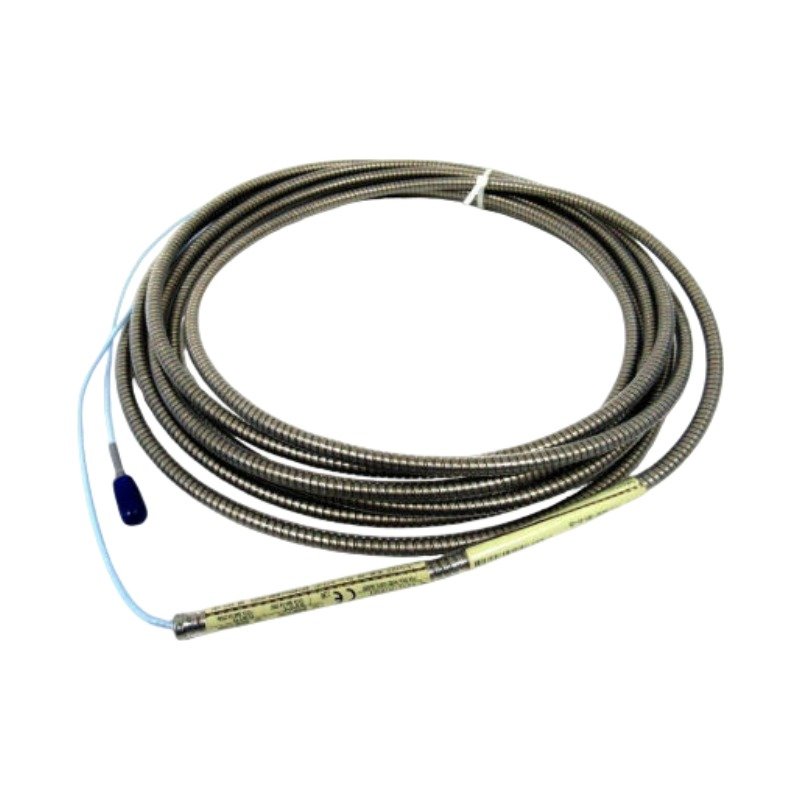

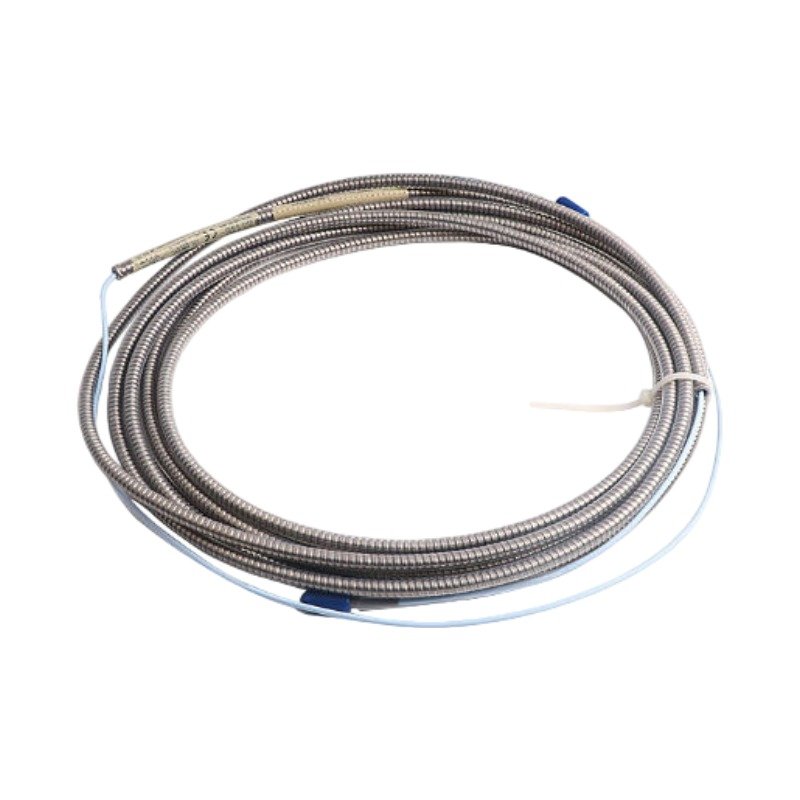

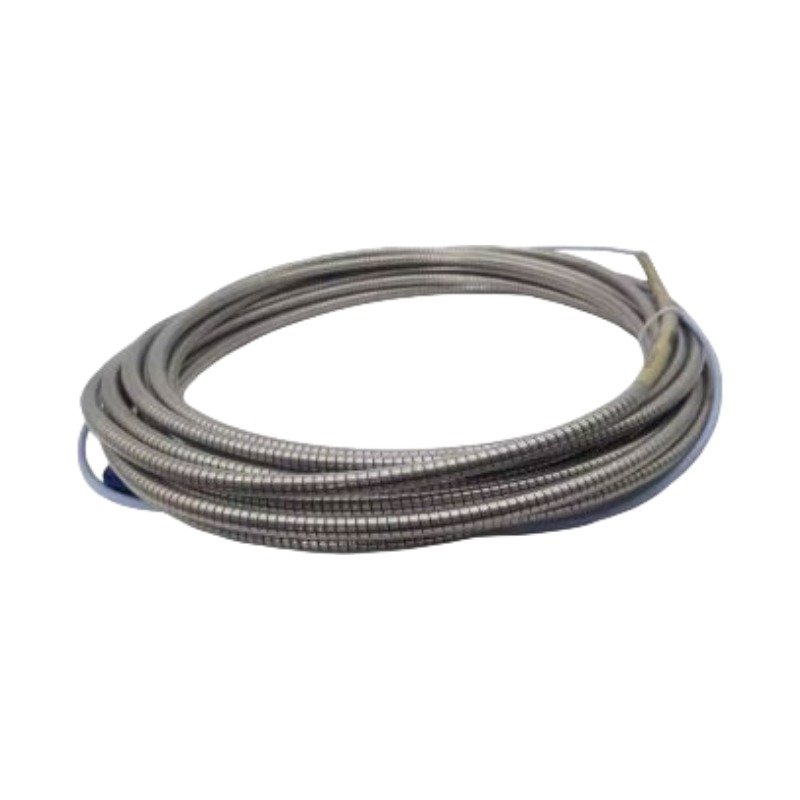

The Bently Nevada 330930-065-01-05, also cataloged as the 330930 Proximity Extension Cable, operates as a dedicated hardware component for high-frequency signal transmission between a 3300 NSv proximity probe and a matching Proximitor sensor within 3300 or 3500 Machinery Protection System platforms.

Suffix Breakdown & Model Matrix

The alphanumeric variables specify the mechanical length, material configuration, and agency regulatory compliance parameters for this 3300 NSv Series cable assembly:

• 065 (Cable Length Option): 6.5 meters (21.3 feet) nominal physical cable length.
• 01 (Connector and Cable Option): Standard coaxial cable construction with miniature coaxial ClickLoc connectors at both termination ends.
• 05 (Agency Approval Option): Multiple hazardous area certifications including CSA, ATEX, and IECEx approvals for Zone 0/1/2 environments.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Integration

The engineered 75-ohm coaxial media matches the precise impedance profiles of the companion sensor loops. Consequently, the extension link prevents signal degradation, facilitating linear eddy-current probe scaling across tight machine clearances. Maintaining low-loss signal propagation permits stable gap voltage validation (-10 VDC targets) during continuous displacement verification. Furthermore, the high-density braided shield design enforces localized cross-talk suppression, insulating microvolt-level vibration waveforms from surrounding electromagnetic interference fields inside crowded rotor dynamics pathways.

Frequently Asked Questions

Q: Can the 330930-065-01-05 extension cable be interchanged with standard 3300 XL 8 mm transducer system components?

A: No, the 3300 NSv transducer system utilizes a distinct 75-ohm circuit design optimized for small target diameters and narrow counterbores. Interchanging this cable with 3300 XL 5 mm or 8 mm systems alters the system impedance, which causes severe scaling errors.

Q: What action must technicians take if the dynamic voltage signal becomes intermittent when the cable is physically flexed?

A: Intermittent signal output indicates an internal core fracture or a compromised ClickLoc terminal pin. Technicians must replace the extension assembly immediately; field splicing or mechanical soldering of the coaxial line is strictly prohibited to preserve calibration accuracy.

Field Installation Guidelines

• Connector Protection Execution: Ensure the gold-plated ClickLoc connectors remain free of dirt and moisture before mating. Snap the connections together completely and slide the standard silicone connector protector sleeve over the interface.
• Bending Radius Management: Route the coaxial line through protective conduits, maintaining a strict minimum physical bend radius of 25.4 mm to prevent core deformation and signal phase shifts.
• Terminal Isolation Protocol: Secure the cable body using insulated clamps to prevent mechanical rubbing against the machinery housing, which can induce static electrical noise on the data loop.
• Conduit Clearance Allocation: Provide sufficient clearance within structural junction boxes to accommodate the 6.5-meter coiled slack without squeezing or pinching the FEP insulation layers.
