Description

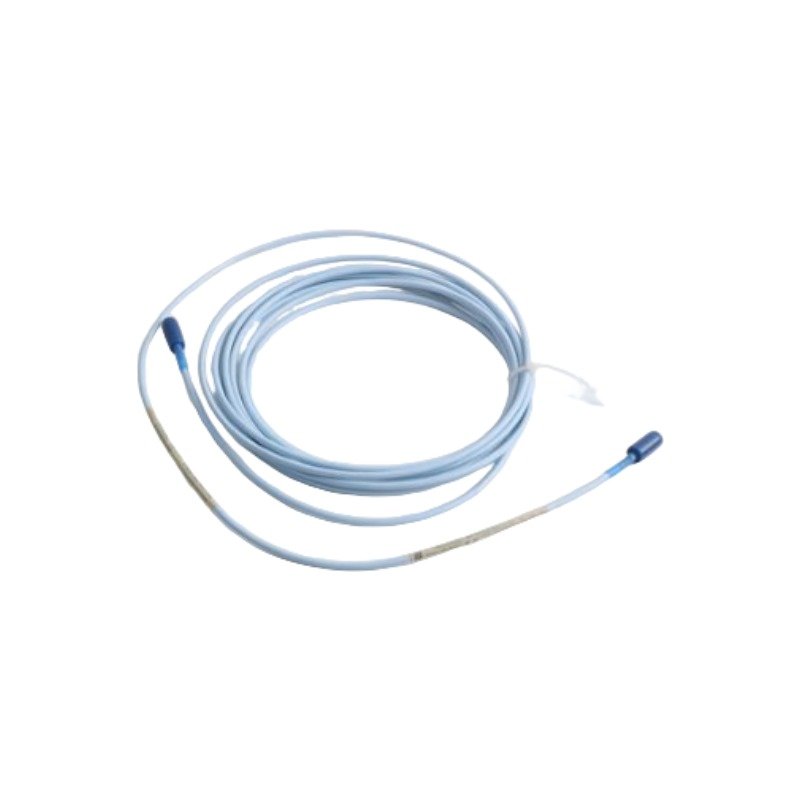

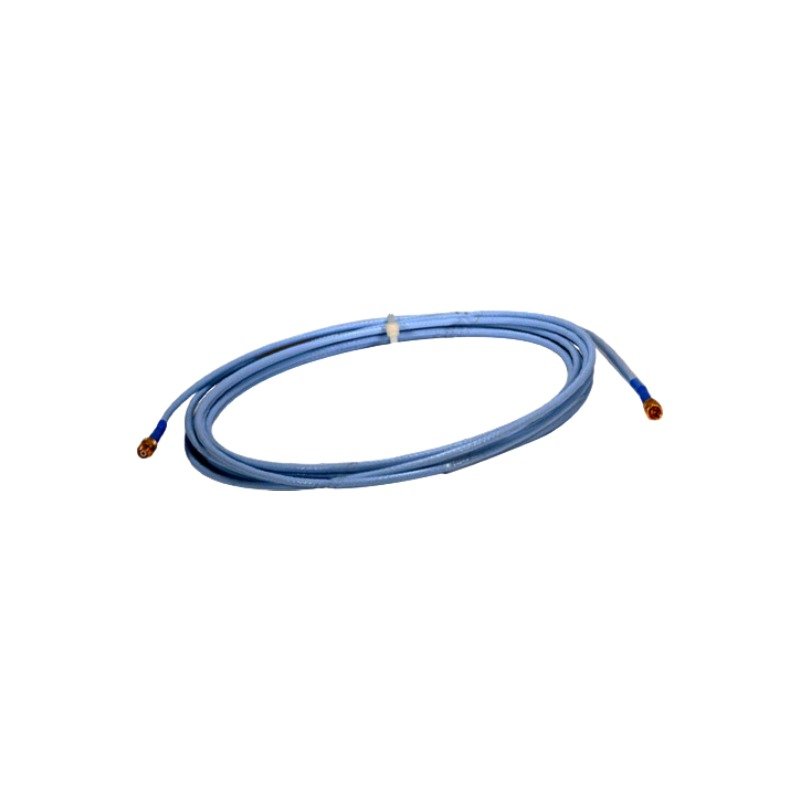

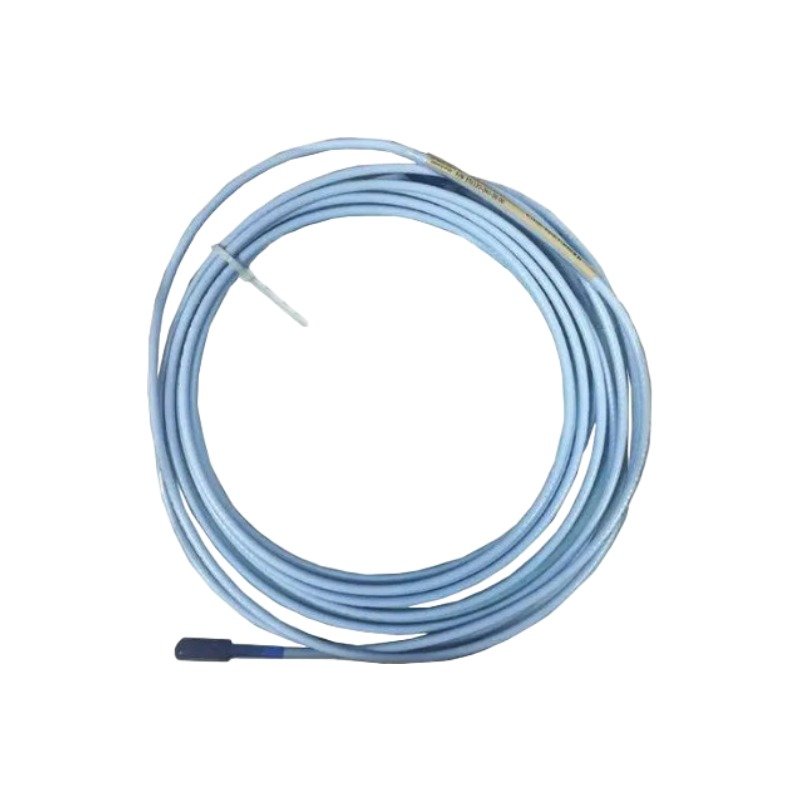

The Bently Nevada 330130-045-00-00, also cataloged as the 330130 Standard Extension Cable, operates as a dedicated hardware component for connecting proximity sensor elements to primary signal-conditioning units within 3300 XL Proximity Transducer System platforms. Specifically, the cable bridges the distance between the 8 mm eddy-current probe head and the remote Proximitor sensor module. Consequently, it maintains continuous, low-loss electrical continuity for high-frequency RF signals, enabling accurate shaft vibration and axial position readings to transmit across industrial turbomachinery environments without signal degradation.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 330130-045-00-00 Standard Extension Cable provides the exact internal impedance and physical length properties required to sustain accurate eddy-current probe scaling metrics. During ongoing equipment inspection loops, the electrical properties of the 4.5-meter line ensure that gap voltage validation reliably centers on target -10 VDC marks without introducing impedance-induced phase variations. Therefore, keeping transmission characteristics uniform over the complete temperature range prevents signal drift from injecting distortion into dynamic rotor dynamics tracking. Furthermore, the specialized double-shielded outer jacket structure delivers superior cross-talk suppression between adjacent transducer conduits, blocking electromagnetic fields from corrupting critical keyphasor or position readings inside the turbine supervisory instrumentation circuit.

Frequently Asked Questions

Q: Can the 330130-045-00-00 extension cable be modified or shortened manually in the field if the length exceeds installation paths?

A: No. The total electrical length of the proximity transducer system must maintain exact calibration limits (such as a 5.0-meter or 9.0-meter total loop system). Cutting or altering the 4.5-meter cable physical path alters the loop capacitance, which completely shifts the calibration curves and compromises measurement accuracy.

Q: Is this extension cable compatible with older, non-XL Bently Nevada 3300 series proximity elements?

A: Yes. The 330130 hardware platform is fully backward-compatible with standard 3300 series 5 mm and 8 mm proximity transducer setups. Consequently, it integrates directly with legacy proximity hardware components without requiring custom modifications.

Field Installation Guidelines

1. First, feed the extension cable through the dedicated machinery protection conduit, ensuring that the path prevents physical compression or sharp twists.
2. Next, respect the minimum structural bend radius limit of 25.4 mm (1.0 inch) at all times to prevent micro-fracturing of the inner coaxial core material.
3. Subsequently, mate the male and female miniature ClickLoc connectors by hand, pressing firmly together until the integrated locking mechanism engages with a physical click.
4. Finally, insulate the completed coaxial connector junction with self-fusing silicone tape or specialized insulation sleeving to prevent the metallic shell from making contact with the machine ground.
