Description

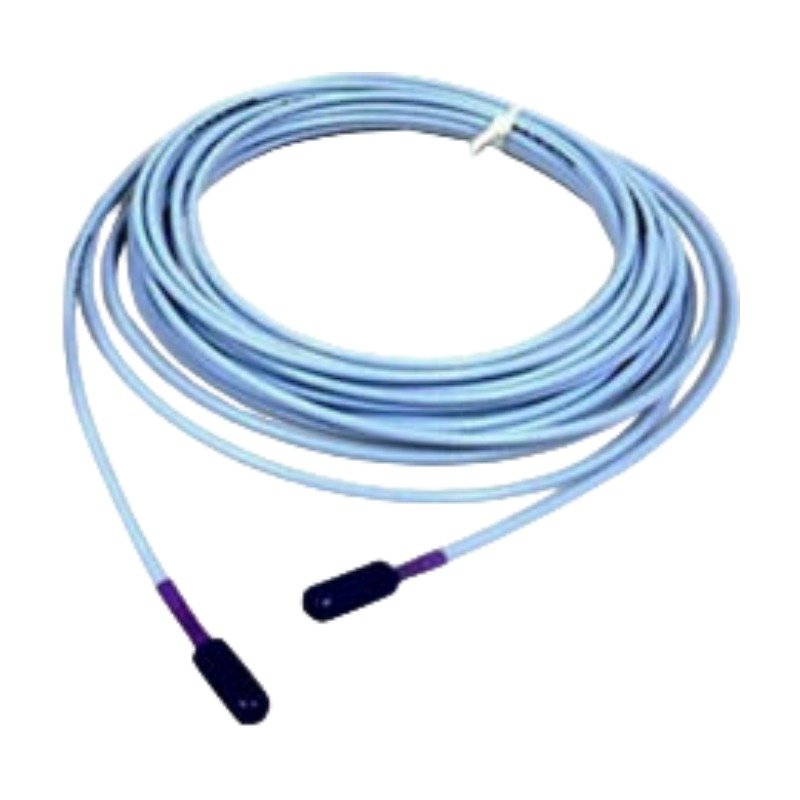

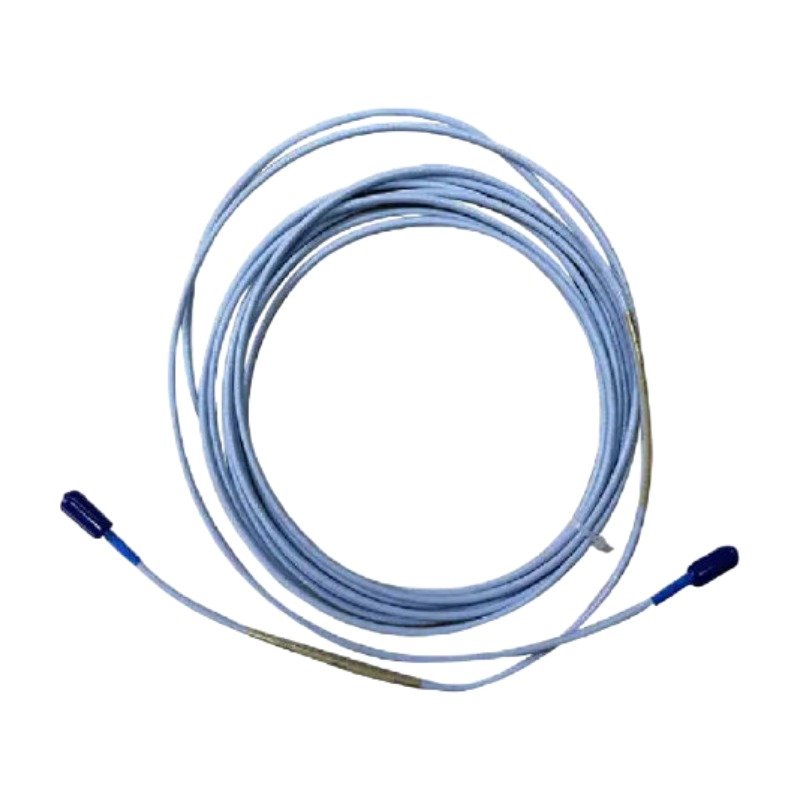

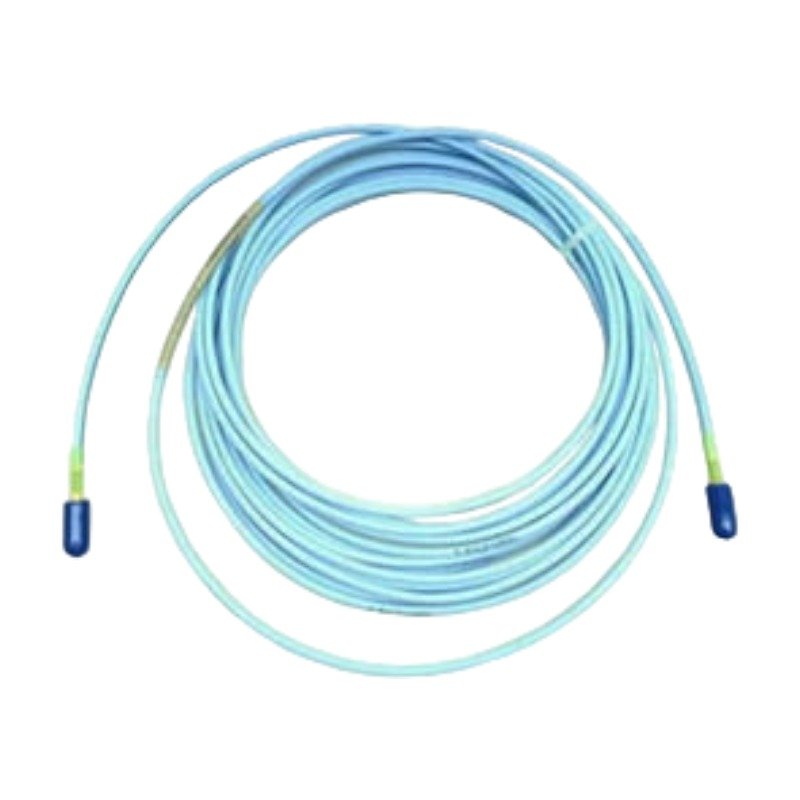

The Bently Nevada 330930-040-00-00, also cataloged as the 330930 Standard Extension Cable, serves as the primary 3300 XL NSv Extension Cable utilized to execute RF-shielded signal transmission across 3300 XL NSv Proximity Transducer System platforms. Specifically, the cable links a 3300 NSv proximity probe directly to a 3300 XL NSv Proximitor Sensor or a 990 vibration transmitter, which subsequently allows the system to monitor tight physical areas containing restricted side-view profiles or small target diameters.

Suffix Breakdown & Model Matrix

Hardware Specifications

Rotor Dynamics and Transducer Conditioning

To support highly accurate rotor dynamics analysis, this 75 Ohm triaxial cable actively maintains critical electrical parameters that match specific eddy-current probe scaling configurations. Because the 3300 XL NSv system delivers an average scale factor of 7.87 V/mm (200 mV/mil), the low-loss FEP dielectric baseline directly preserves strict gap voltage validation down to -10 VDC targets. Consequently, this matched electrical impedance prevents signal reflections and phase distortion during high-speed transient acceleration phases. Furthermore, the specialized coaxial shielding configuration provides robust cross-talk suppression against high-frequency electromagnetic interference (EMI) and adjacent channel magnetic induction. As a result, the connected Proximitor sensor extracts clean, high-fidelity voltage waveforms even when engineers route multiple extension links through compact structural machinery clusters.

Frequently Asked Questions

Q: Can an engineer combine this NSv extension cable with a standard 3300 XL 5 mm or 8 mm proximity probe?

A: No. The NSv system utilizes distinct electrical tuning parameters and specialized physical configurations. Therefore, installers must connect this cable exclusively with 3300 NSv series probes and matching NSv Proximitor sensors to prevent severe calibration errors.

Q: What mechanism prevents the coaxial connection from backing out during high-vibration machinery operations?

A: The cable incorporates gold-plated brass ClickLoc coaxial connectors. These specialized components lock mechanically into place and emit an audible click during hand-tightening, which actively prevents the coupling from loosening under continuous mechanical vibration.

Q: Does this specific part number include a flexible stainless steel outer armor sleeve?

A: No. The -00 cable option denotes a standard unarmored FEP insulated cable design. If an application demands physical crush protection, the installation requires a model containing the armored suffix option.

Field Installation Guidelines

• Connector Mating and Protection: Wipe the coaxial faces clean before joining the ClickLoc connectors, and spin the barrel until it clicks firmly into position. Afterward, apply clear silicone self-mending tape or install a dedicated connector protector sleeve over the junction to block moisture and fluid entry.
• Shield Termination: Route the internal triaxial shield layout straight to the Proximitor sensor housing termination point. Conversely, keep the field-side cable connections floating and completely isolated from structural frame contact to eliminate ground loop current injection.
• Conduit and Bend Management: Install the cable within dedicated, grounded metallic conduits while strictly maintaining the minimum 25.4 mm bend radius limit. Additionally, never pull the cable assembly using the raw connector heads, as exceeding the 220 N pull-strength threshold will break internal solder bonds.
