Description

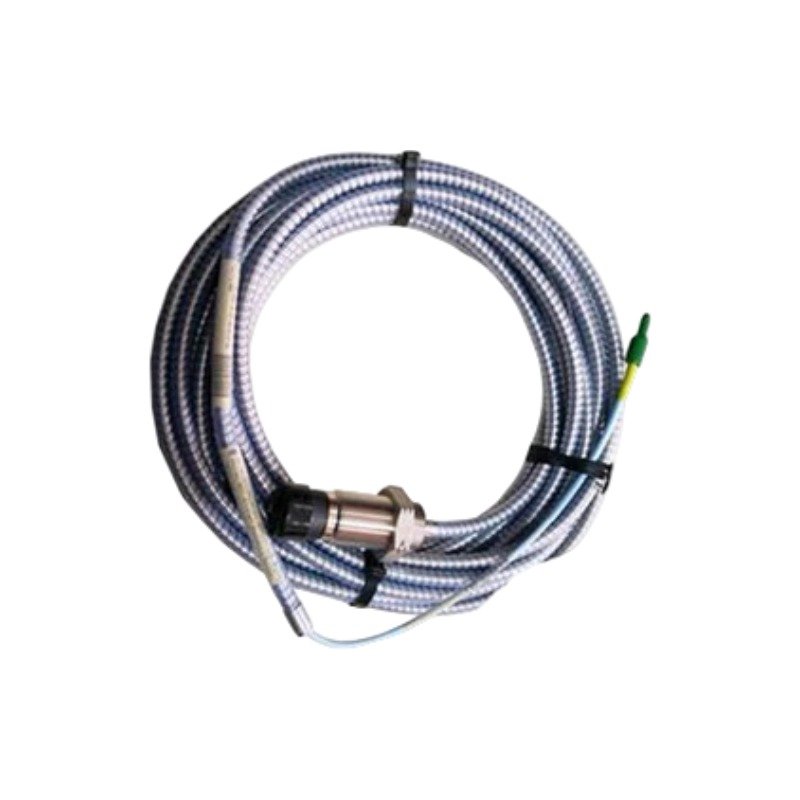

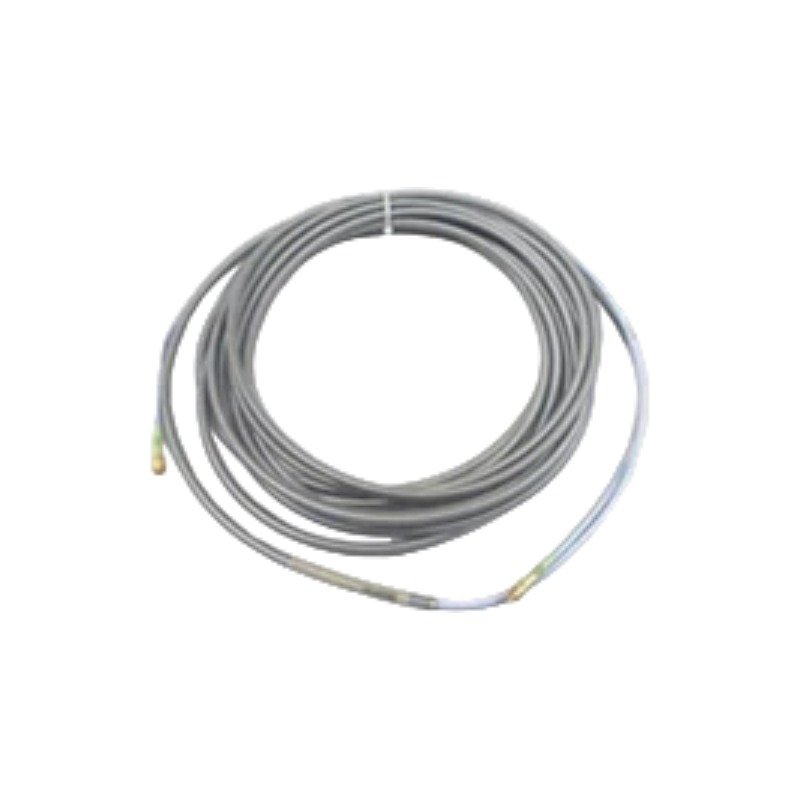

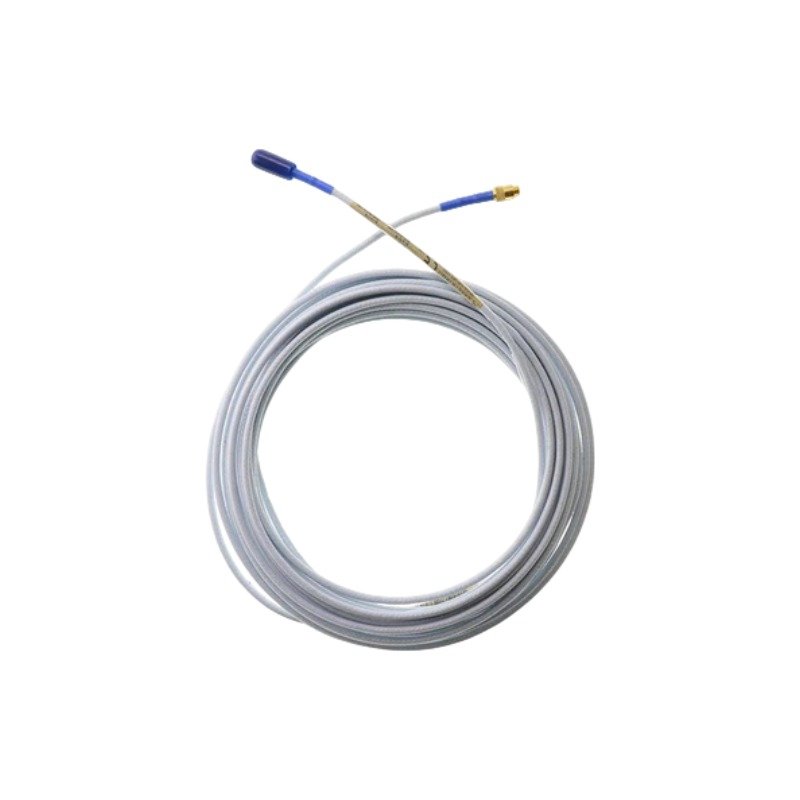

The Bently Nevada 330930-045-03-CN serves as the primary 330930 Extension Cable utilized to execute non-contacting vibration and displacement measurements across 3300 NSv Monitoring System platforms.

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

To establish the linear range centerpoint, field technicians must execute precise gap voltage validation during mechanical commissioning. Specifically, technicians calibrate the sensor to target a nominal -10 VDC gap voltage. Consequently, this voltage tracks the exact physical midpoint of the eddy-current probe scaling matrix. By securing this alignment, the system captures accurate rotor dynamics data and simultaneously maintains high cross-talk suppression when operators deploy multiple 3300 NSv proximity probes in close proximity.

Frequently Asked Questions

Q: How does the total length of this 4.5-meter extension cable affect the overall transducer system calibration?

A: The 3300 NSv transducer system demands a precise total electrical length. Because the system requires a complete 5.0-meter or 7.0-meter loop, technicians must pair this 4.5-meter cable with a 0.5-meter probe. As a result, this combination maintains the exact eddy-current probe scaling needed for accurate monitoring.

Q: What protection does the “03” option offer if it lacks stainless steel armor?

A: The “03” designation indicates that the cable lacks stainless steel armor but includes factory-installed connector protectors. Consequently, these removable plastic covers seal out moisture, dust, and particulate contamination during storage and initial cable routing before final mating.

Field Installation Guidelines

• Always verify that the combined length of the probe and extension cable matches the specific tuning parameters of the Proximitor Sensor before completing final routing.
• Do not use mechanical tools to tighten the miniature coaxial ClickLoc connectors; instead, rotate the coupling nut by hand until you feel a distinct tactile click.
• Route the unarmored FEP coaxial cable away from sharp casing edges, and maintain the minimum bend radius to prevent structural fatigue or signal degradation.
• Remove the temporary connector protectors immediately before joining the plugs, and then pull the protective insulation sleeves completely over the mated body.
