Description

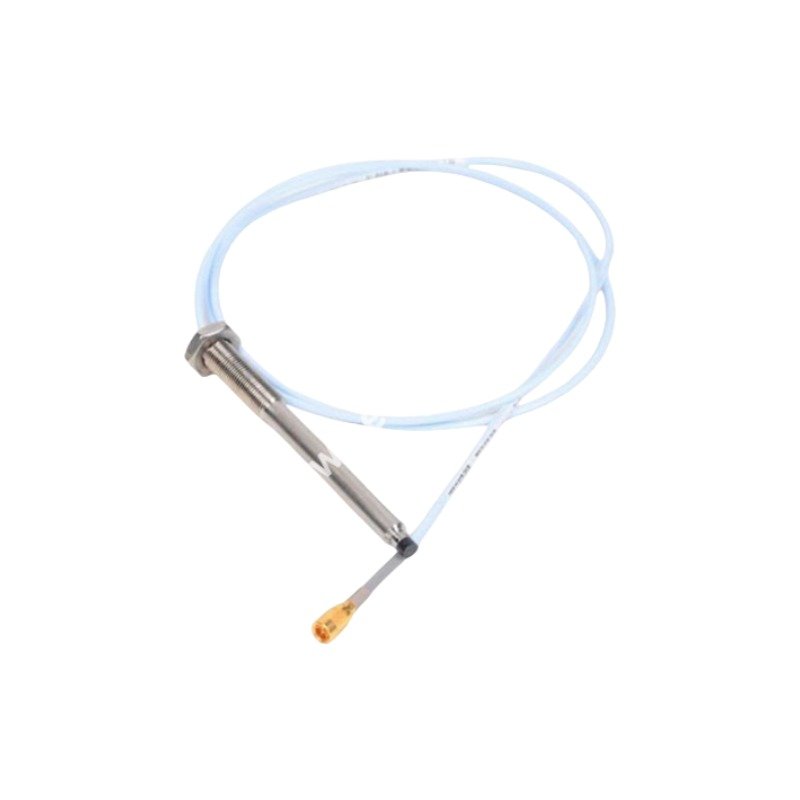

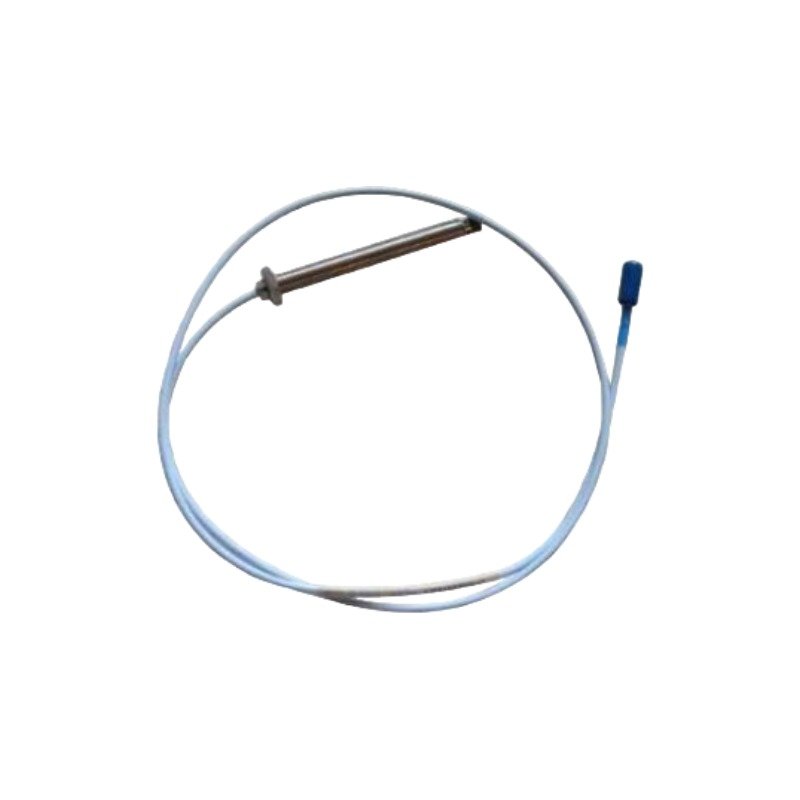

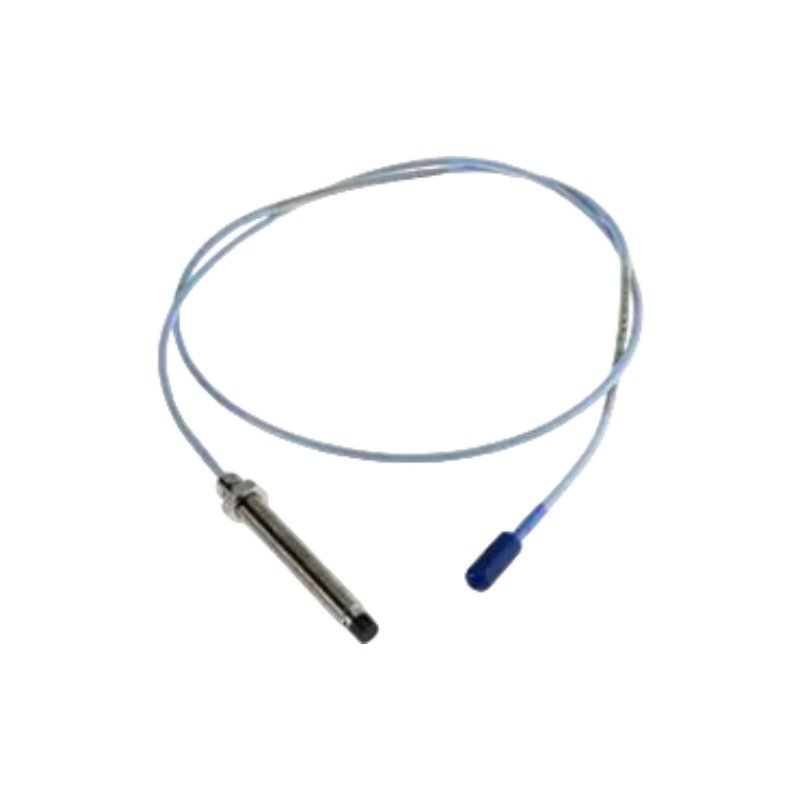

The Bently Nevada 330905-00-08-10-02-00 operates as a specialized eddy-current proximity sensor within the 3300 NSv (Narrow Side-View) Transducer System family. Reliability engineers select this precise hardware for small-diameter shafts or applications where tight counterbore restrictions prevent the use of standard 5 mm or 8 mm proximity probes.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This metric narrow-view probe directly tracks tight mechanical clearances on fluid-filmed bearing machinery, such as process gas or centrifugal air compressors. Because Bently Nevada engineered this series with a minimized cross-sectional sensing field, the probe successfully eliminates side-view cross-talk risks when a technician mounts it inside narrow counterbores. Consequently, this design allows the probe to replace legacy 3300 RAM or 3000-series 190 transducer arrays seamlessly.

Furthermore, the sensor provides real-time gap voltage validation around traditional -10 VDC operational baselines. As a result, this steady voltage safeguards the entire loop against signal attenuation. Ultimately, this stability ensures that the proximity system delivers precise evaluations of radial vibration, axial thrust position, or Keyphasor phase reference tracks on small-diameter targets (shafts under 51 mm or 2 in).

Breakdown of Part Number Options

• -00 (Unthreaded Length): Defines 0 mm of unthreaded body space; therefore, the thread covers the entire 80 mm case length.
• -08 (Overall Case Length): Configures an 80 mm overall case length to accommodate specific thread engagement depths in machine housings.
• -10 (Total Length): Delivers a 1.0 meter integrated physical cable segment. However, the user must match this to a corresponding 4.0 or 6.0 meters NSv extension cable to establish a calibrated 5.0 or 7.0 meters total electrical loop length.
• -02 (Connector/Cable Type): Outfits the cable termination point with a miniature coaxial ClickLoc tip over standard unarmored cabling.
• -00 (Agency Approval Suffix): Indicates a standard configuration; hence, the factory does not apply hazardous area certifications to the packaging.

Field Installation Guidelines

• Mounting Torque: First, manually hand-thread the M10 x 1 probe into the machine port. Next, finalize the installation using a torque wrench matched to standard technical limits to avoid splitting or crushing the internal polyphenylene sulfide (PPS) tip molding.
• Routing Radii: Always maintain a strict minimum physical routing bend radius of 25.4 mm (1.0 in) across the standard cable path. Otherwise, over-bending will crimp the high-frequency shielding layer and cause calibration deviations.
• Junction Isolation: Because this specific hardware option lacks pre-installed connector protectors (-02), technicians must manually slide silicone sleeves or wrap insulation tape over the ClickLoc coupling. Doing so effectively halts metal-to-metal contact against machine housings and eliminates electrical ground loops entirely.
