Description

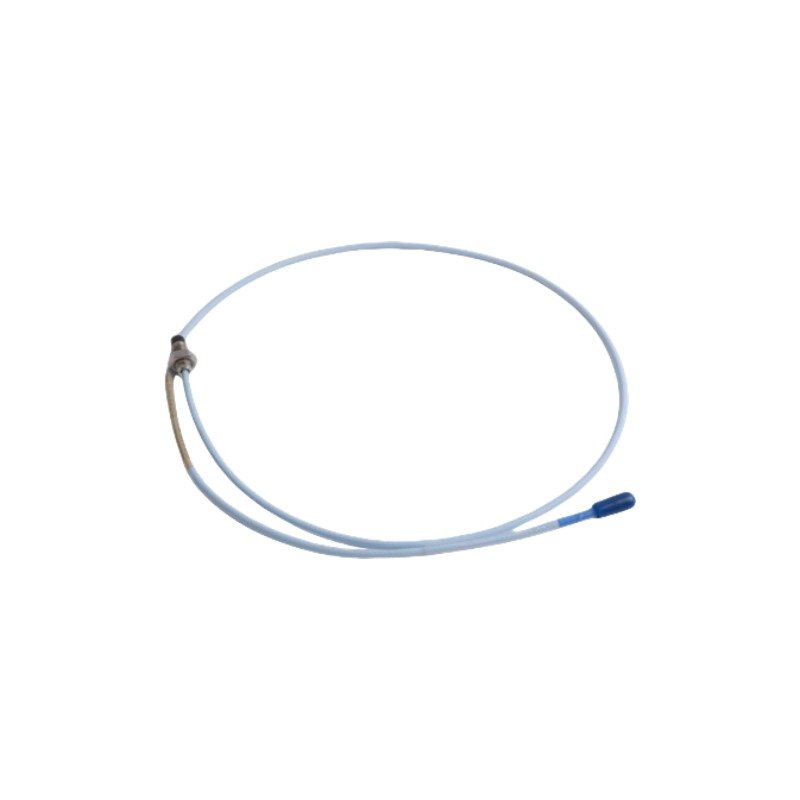

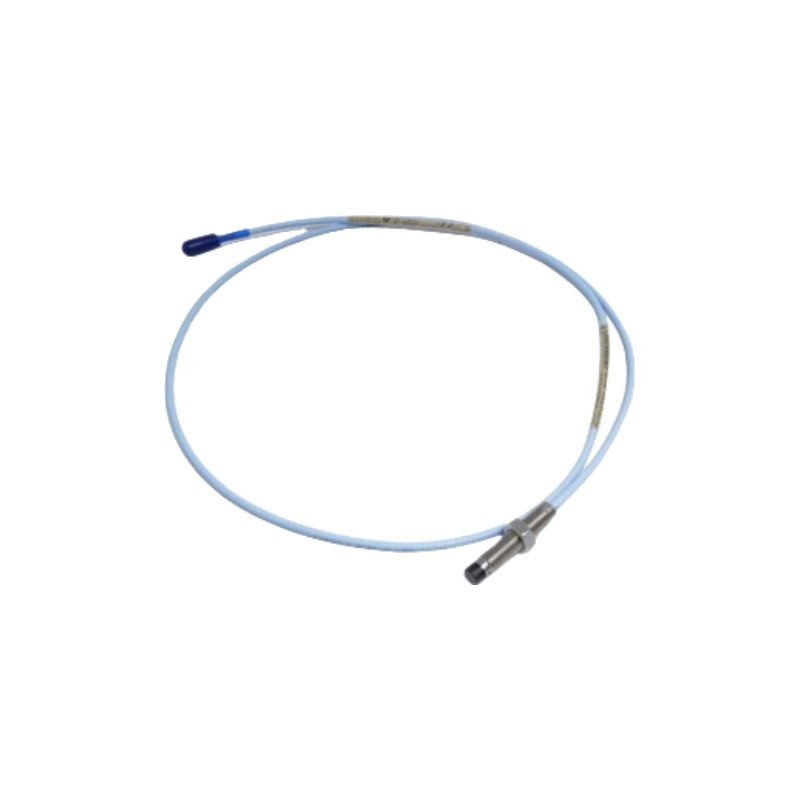

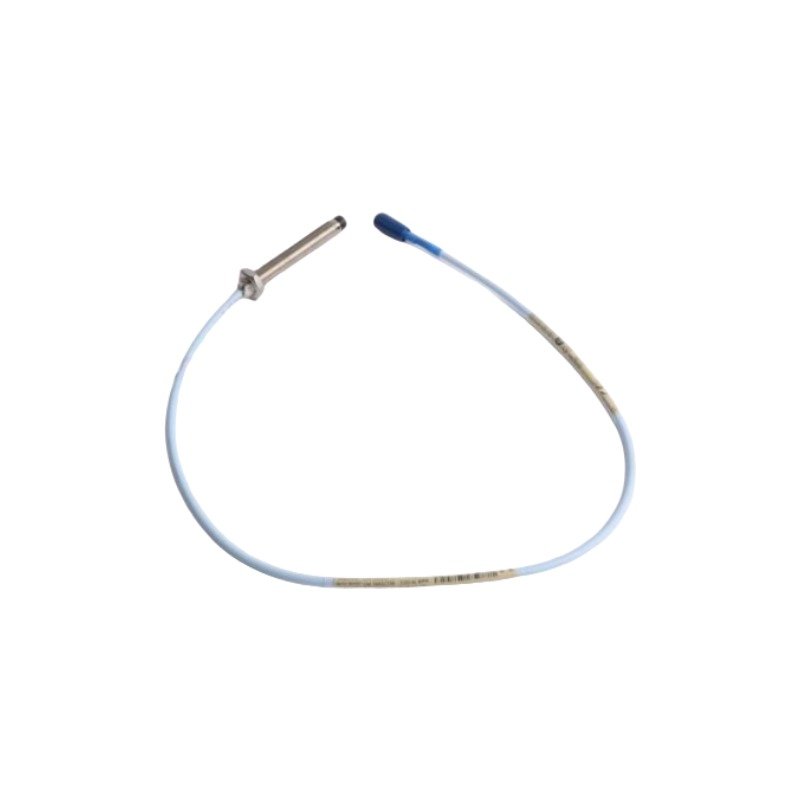

The Bently Nevada 330901-00-08-10-02-00, also cataloged as the 330901 Proximity Probe, serves as the primary 330901 Proximity Probe utilized to execute high-frequency eddy-current displacement sensing across 3300 XL NSv Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks, specifically targeting tight physical spaces where standard 5 mm or 8 mm probes introduce severe sideview constraints. Specifically, the compact narrow-view (NSv) sensor core maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route adjacent signals through cramped machine counterbores or small-diameter shafts. Furthermore, the internal 75 ohm matching provides continuous gap voltage validation. Consequently, the assembly maintains stable targeting around calibrated -10 VDC operational centers and prevents signal attenuation that typically degrades the standard 7.87 V/mm (200 mV/mil) scale factor required to evaluate rotor dynamics on centrifugal air compressors.

Frequently Asked Questions

Q: What specific mounting profile do the -00 and -08 option codes establish for this 330901 probe variant?

A: The -00 designator dictates 0.0 in of unthreaded case length, and the -08 code defines an overall threaded case length of 0.8 in with a standard 1/4-28 UNF thread without external armor.

Q: How do the -10 and -02 option combinations alter the high-frequency transmission connection in the field?

A: The -10 option sets an exact 1.0 meter total physical and electrical probe length, while the -02 designator equips the assembly terminal with a miniature coaxial ClickLoc connector on standard cable, enabling specialized linkups with the NSv extension line.

Field Installation Guidelines

• Thread Engagement: Technicians must manually thread the 1/4-28 UNF probe body into the machine housing tap. Tighten strictly to standard engineering torque limits using a calibrated open-ended wrench to preserve the structural integrity of the internal TipLoc molded tip.
• Routing Radii: Always route the integrated 1.0 meter FEP-insulated coaxial cable path with a minimum bend radius of 25.4 mm (1.0 in). Otherwise, over-bending damages the internal 75 ohm shields and introduces signal distortions.
• Terminal Isolation: Verify that standard connector protectors fully isolate the miniature ClickLoc junction point. This isolation prevents metal-to-metal physical contacts with the machine frame and effectively eliminates electrical ground loops.
