Description

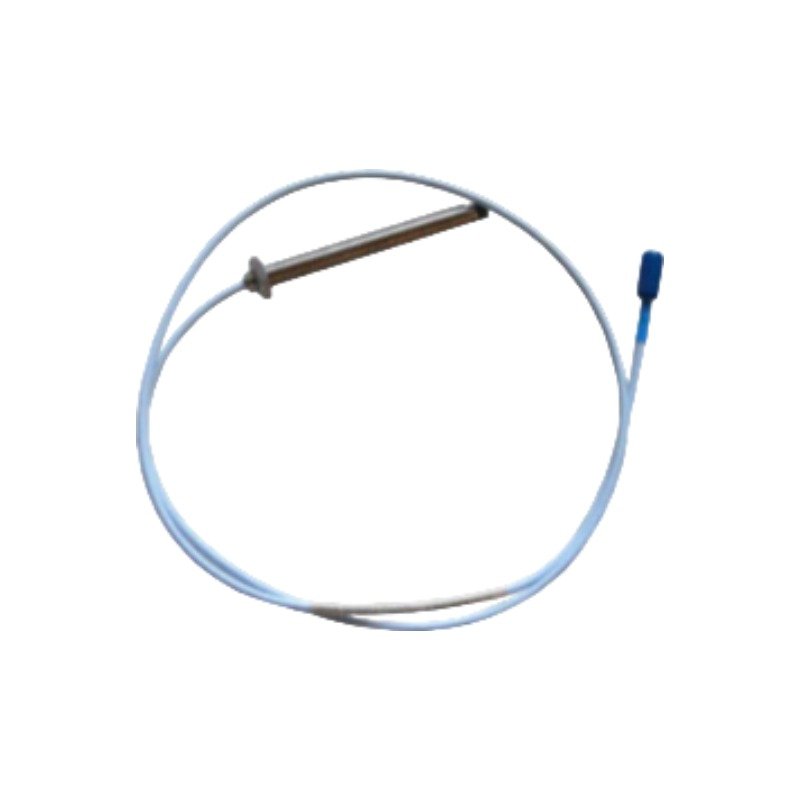

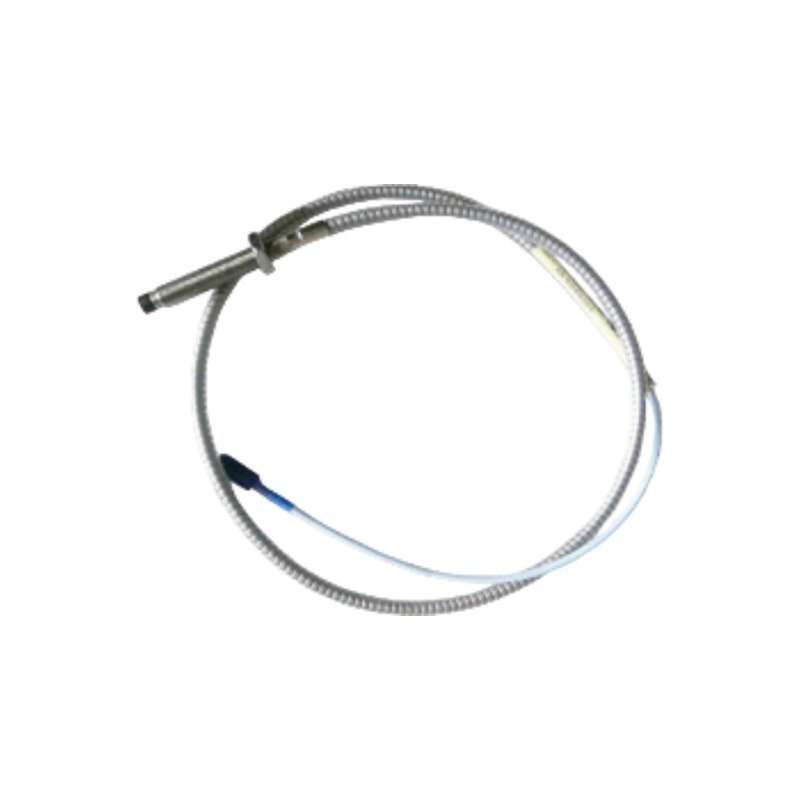

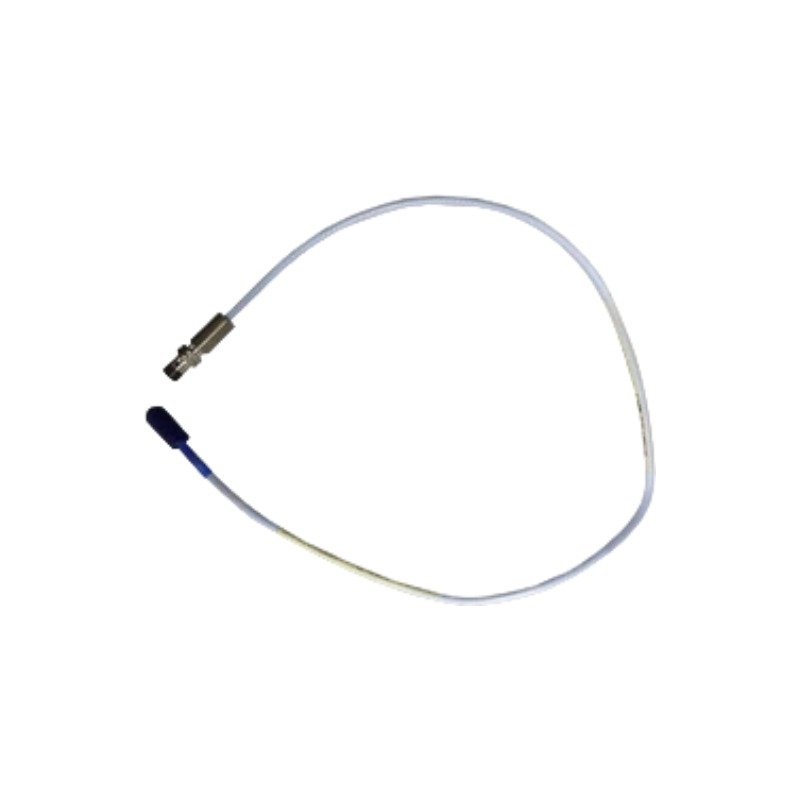

The Bently Nevada 330709-000-060-50-02-00 operates as a high-precision 330709 Proximity Sensor designed for non-contacting displacement and vibration measurements. The 330709 model indicates a specialized reverse mount metric configuration designed for specific machine housing brackets and counterbores utilizing metric threads, combined with an extended 5.0-meter integrated cable.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

This metric reverse mount proximity sensor actively manages eddy-current probe scaling because it preserves strict geometric and electromagnetic characteristics at the 11 mm probe tip. The reverse mount geometry allows the probe to be installed from the rear of a mounting sleeve or housing casing, making it ideal for compact retrofits, fluid film bearing housings, or thrust bearing installations. The physical configuration ensures precise gap voltage validation across nominal -10 VDC targets during static calibration. Because the sensor head stabilizes the high-frequency RF field within the measurement gap, the component transmits clear rotor dynamics data, including radial vibration and axial thrust position, from large-scale industrial machinery without introducing measurement drift.

Frequently Asked Questions

Q: Does this proximity sensor support hot-swapping while the monitoring loop is live?

A: Yes. Technicians can safely disconnect the sensor from its extension cable or Proximitor while the rack is powered, provided they verify the surrounding atmosphere as non-hazardous.

Q: What physical design features do the options “000-060-50-02” specify for this probe assembly?

A: The “000” option specifies an unthreaded length of 0 mm, the “060” option designates a 60 mm total metric case length, and the “50” option provides an extended 5.0-meter total cable length. Furthermore, the “02” option specifies a miniature coaxial ClickLoc connector without an integrated connector protector.

Q: Can this 11 mm metric probe interface with standard 3300 XL 8 mm Proximitor sensors?

A: No. The 3300 XL 11 mm probe requires a dedicated 3300 XL 11 mm Proximitor sensor and matching 11 mm extension cable because the scale factor is 3.94 V/mm (100 mV/mil), which differs fundamentally from the 8 mm system calibration.

Field Installation Guidelines

• Shielding and Grounding: Insulate the coaxial ClickLoc connection using connector protectors or heat-shrink tubing. Do not allow the connector shell to contact the machine housing, because contact creates parallel ground paths that corrupt the high-frequency RF signal loop.
• Routing Constraints: Route the probe lead away from heavy power cabling. Maintain a minimum clearance of 15.2 mm from surrounding structural metals to prevent counterbore side-viewing interference from altering the target calibration.
• Reverse Mount Handling: Take precautions when threading the reverse mount probe into its sleeve. Ensure that the integrated 5.0-meter cable does not twist or bind excessively during the physical installation process, as core tension over this length can degrade internal insulation.
