Description

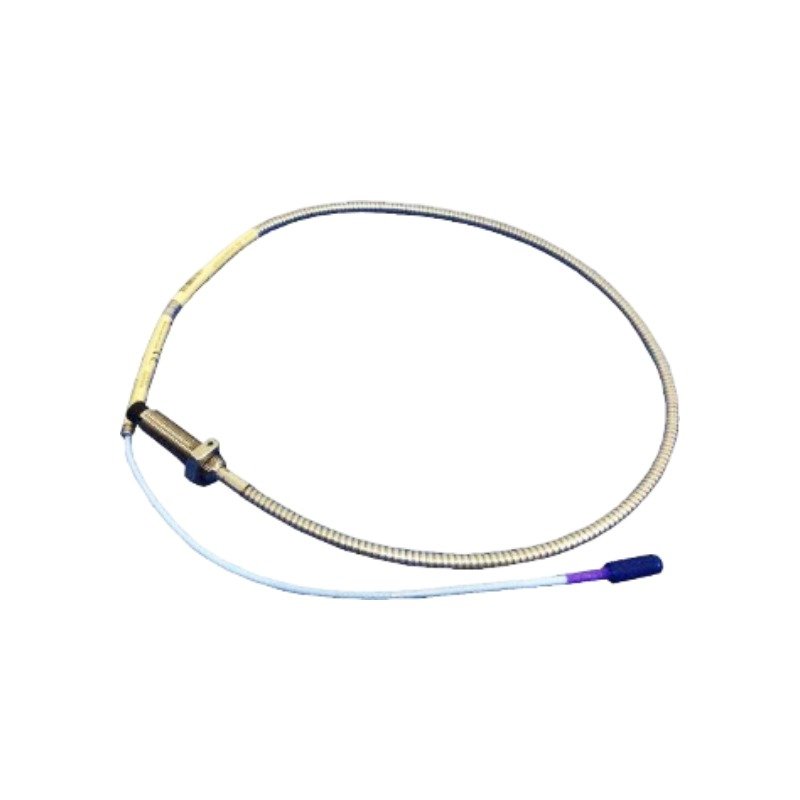

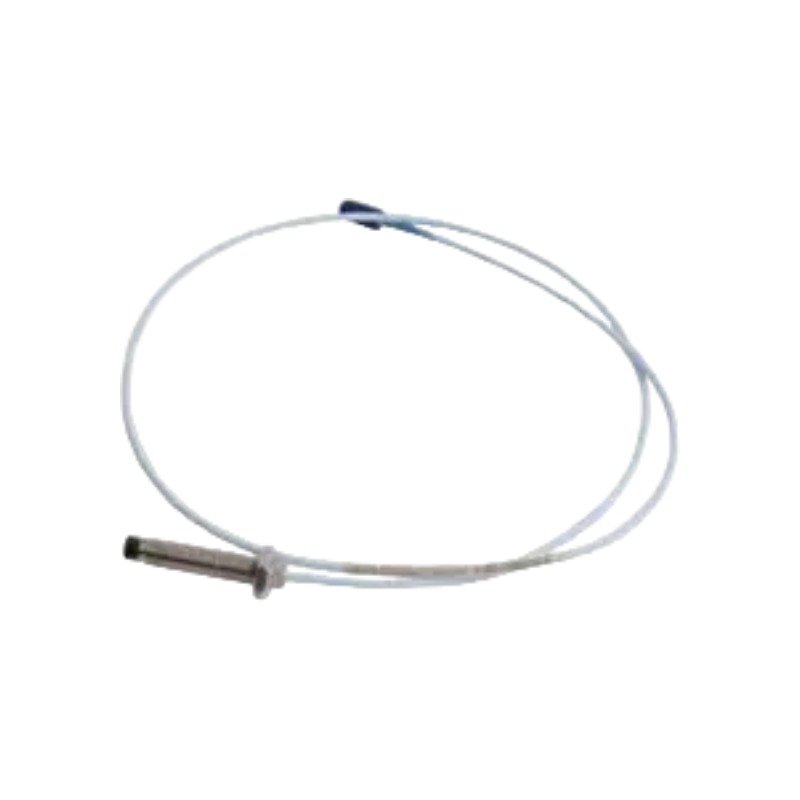

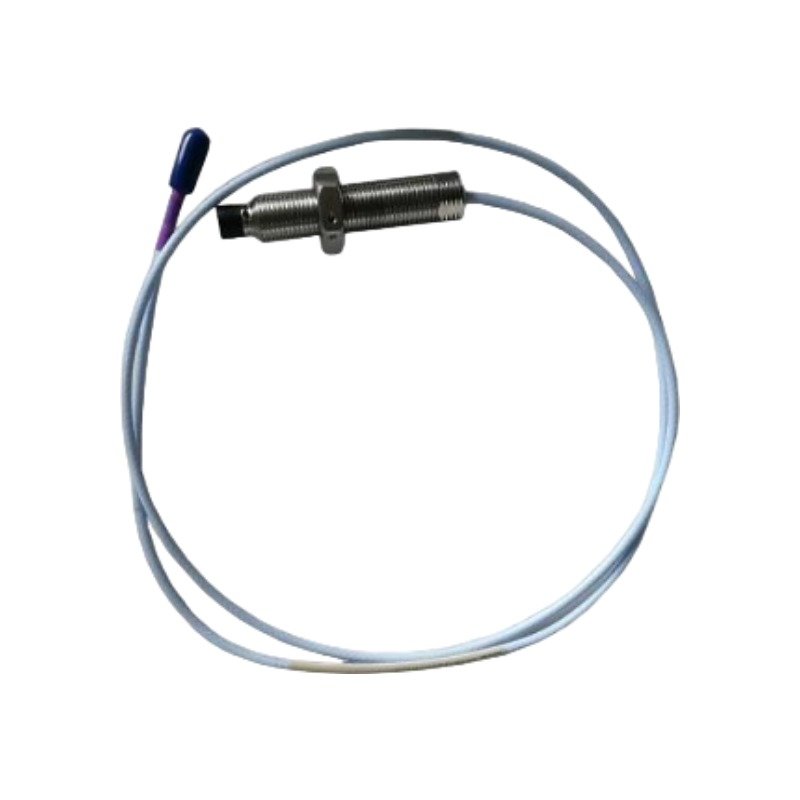

The Bently Nevada 330704-000-050-10-02-CN serves as the primary 330704 Proximity Sensor utilized to execute non-contacting displacement and vibration measurements across 3300 XL 11 mm Proximity Transducer System platforms. The 330704 model indicates a reverse mount configuration designed for specialized machine housing brackets.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

This reverse mount proximity sensor actively manages eddy-current probe scaling because it preserves strict geometric and electromagnetic characteristics at the 11 mm probe tip. The reverse mount geometry allows the probe to be installed from the rear of a mounting sleeve or housing casing, making it ideal for high-clearance retrofits or thrust bearing installations. The physical configuration ensures precise gap voltage validation across nominal -10 VDC targets during static calibration. Because the sensor head stabilizes the high-frequency RF field within the measurement gap, the component transmits clear rotor dynamics data, including radial vibration and axial thrust position, from large-scale industrial machinery without introducing measurement drift.

Frequently Asked Questions

Q: Does this proximity sensor support hot-swapping while the monitoring loop is live?

A: Yes. Technicians can safely disconnect the sensor from its extension cable or Proximitor while the rack is powered, provided they verify the surrounding atmosphere as non-hazardous.

Q: What physical design features do the options “000-050-10-02” specify for this probe assembly?

A: The “000” option specifies an unthreaded length of 0.0 inches, the “050” option designates a 5.0-inch total case length, and the “10” option provides a 1.0-meter total cable length. Furthermore, the “02” option specifies a miniature coaxial ClickLoc connector without an integrated connector protector.

Q: How does the “-CN” designation impact deployment in regional installations?

A: The “-CN” suffix specifies that the cable complies with national industrial safety regulations in China, providing certified NEPSI hazardous area protection marks necessary for formal regional compliance.

Field Installation Guidelines

• Shielding and Grounding: Insulate the coaxial ClickLoc connection using connector protectors or heat-shrink tubing. Do not allow the connector shell to contact the machine housing, because contact creates parallel ground paths that corrupt the high-frequency RF signal loop.
• Routing Constraints: Route the probe lead away from heavy power cabling. Maintain a minimum clearance of 15.2 mm from surrounding structural metals to prevent counterbore side-viewing interference from altering the target calibration.
• Reverse Mount Handling: Take precautions when threading the reverse mount probe into its sleeve. Ensure that the integrated cable does not twist or bind excessively during the physical installation process, as core tension can degrade internal insulation.
