Description

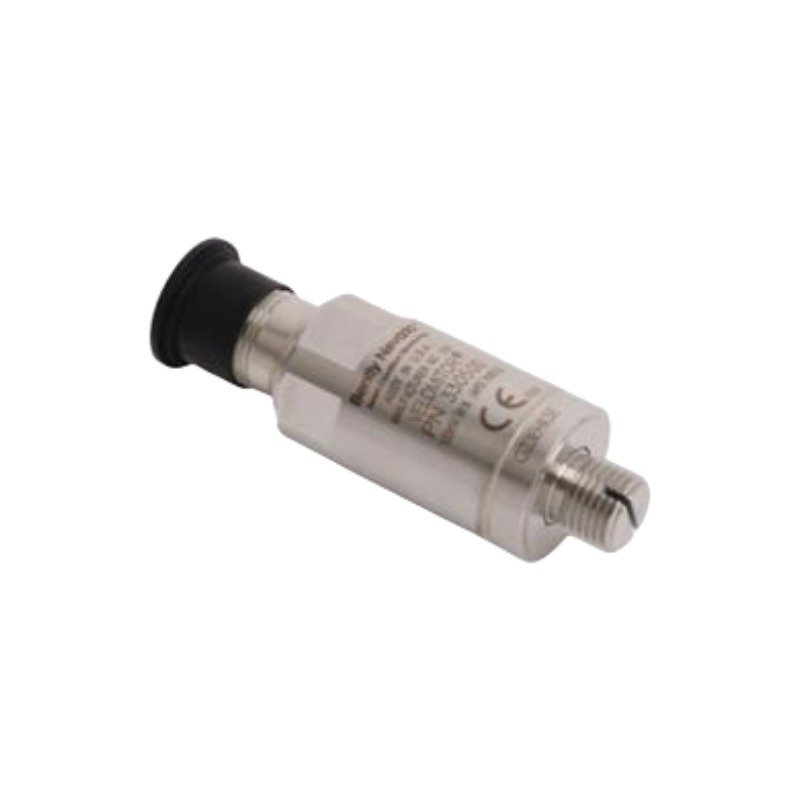

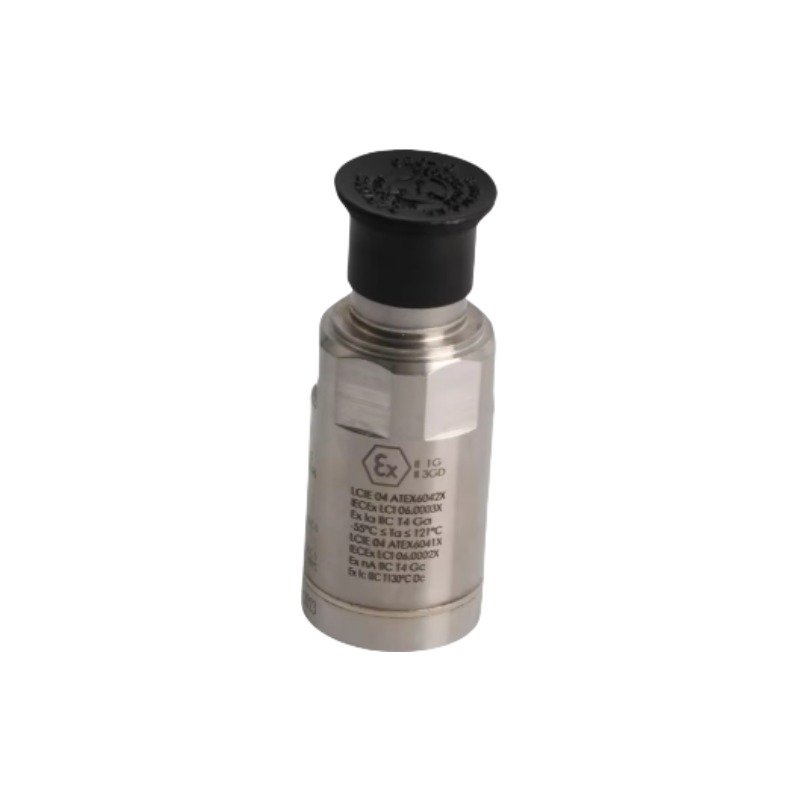

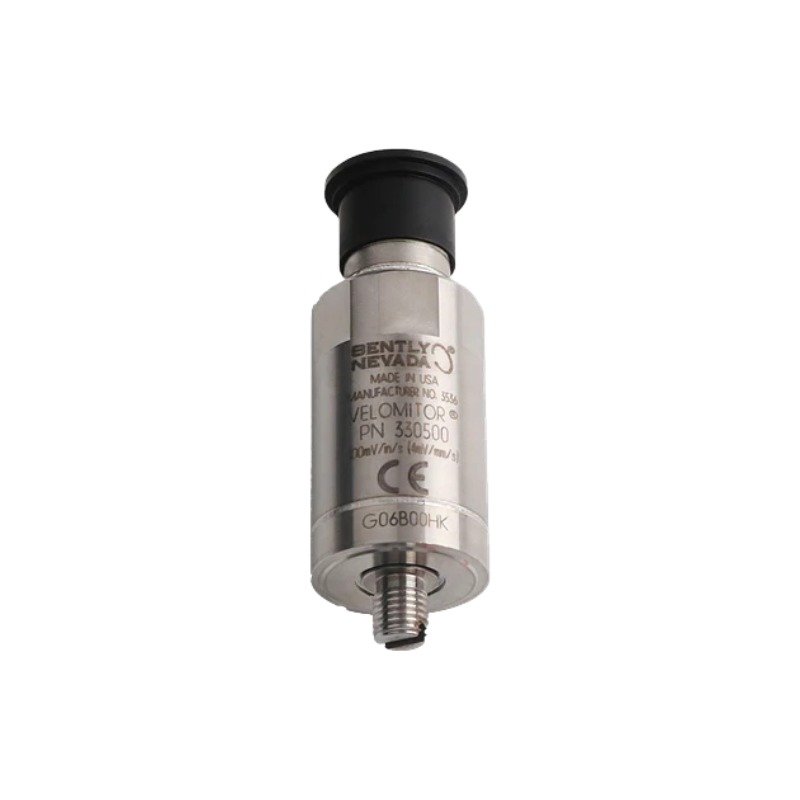

The Bently Nevada 330500-06-00, also cataloged as the 330500 Velomitor Piezo-velocity Sensor, operates as a dedicated hardware component for casing vibration measurement within machinery monitoring systems. Specifically, the device converts mechanical casing acceleration into a proportional 4-20 mA analogue velocity signal. Because it features an internal piezoelectric integration circuit, it routes this signal directly to control systems and monitoring platforms without requiring external transmitters.

Suffix Breakdown & Model Matrix

The 330500 series uses a structured model matrix designated as 330500-AA-BB to define mounting adaptations and regulatory compliance profiles:

• AA (Mounting Thread Adaptor Option): This parameter defines the mechanical interface integrated with the sensor base. Consequently, option 06 configures the hardware with a 5/8 – 18 UNF thread adapter.
• BB (Agency Approval Option): This selection dictates the hazardous area certification profile. Specifically, option 00 specifies that the hardware assembly does not require hazardous area approvals.

Hardware Specifications

Mechanical Monitoring & Rotor Dynamics Integration

Within the Bently Nevada asset protection framework, this sensor incorporates active cross-talk suppression methodologies to isolate cross-axis mechanical inputs. As a result, the sensor maintains highly accurate casing vibration readings. While eddy-current probe scaling and gap voltage validation (-10 VDC targets) apply directly to proximity measurement loops, this piezo-velocity unit instead complements proximity data by mapping high-frequency casing dynamics. Furthermore, the internal electronics actively isolate structural resonance, which translates raw high-frequency casing forces into stable velocity metrics. Ultimately, this allows operators to evaluate overall rotor dynamics and structural casing integrity with precision.

Frequently Asked Questions

Q: Can the user configure the 330500-06-00 sensor with a 1/4-18 NPT mounting option via this product matrix?

A: No. The 1/4-18 NPT mounting configuration is unavailable under the 330500 option matrix. Therefore, the user must order the dedicated 330525 assembly to meet 1/4-18 NPT mounting requirements.

Q: How does the internal circuit manage power delivery and signal transmission?

A: The device operates as a loop-powered component. Consequently, it utilizes the same two-wire interface for both DC power input and the 4-20 mA analog velocity output signal, which completely eliminates the need for independent local power lines.

Field Installation Guidelines

• Mechanical Torquing & Thread Engagement: First, clean all thread profiles thoroughly prior to insertion. Next, tighten the 5/8 – 18 UNF adapter base using standard industrial torque ratings for stainless steel sensors. Do not apply torque directly to the upper sensor housing, as this can strain the internal crystal.
• Casing Alignment: Always mount the sensor perpendicular to the target machinery casing surface. If the sensor deviates from the intended measurement axis, it will induce transverse sensitivity errors and subsequently compromise rotor dynamics data accuracy.
• Shielding and Grounding: To prevent ground loops and minimize external electromagnetic cross-talk, isolate the sensor cable shield at the transducer housing. Afterward, ground the shield exclusively at a single point inside the monitoring cabinet terminal strip.
• Conduit Routing: Finally, deploy flexible conduit over the cable assembly near the sensor. This flexible run accommodates thermal expansion and structural machinery shifts without putting mechanical stress on the cable connector.
