Description

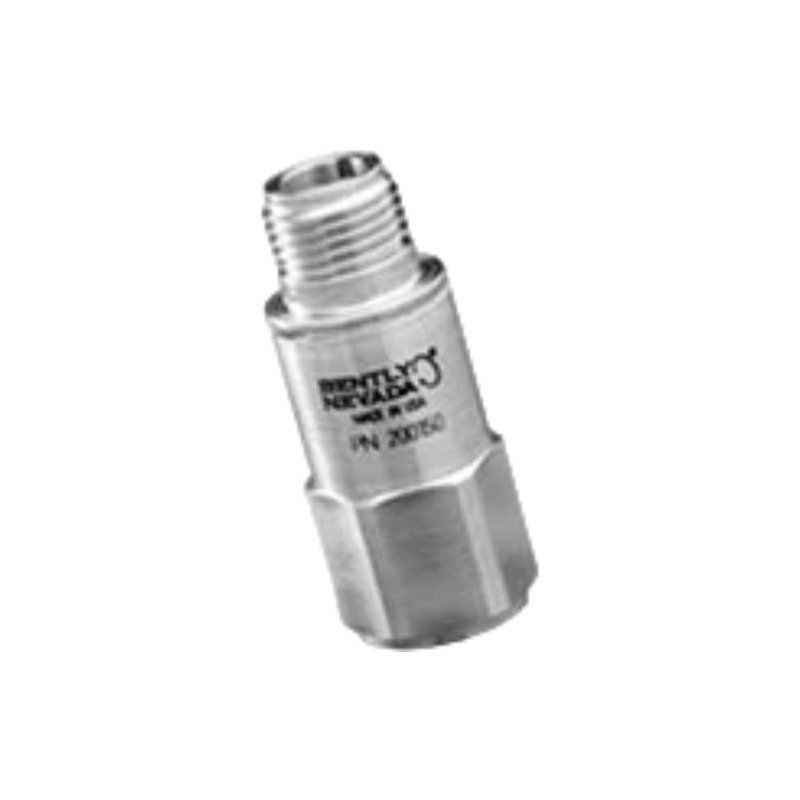

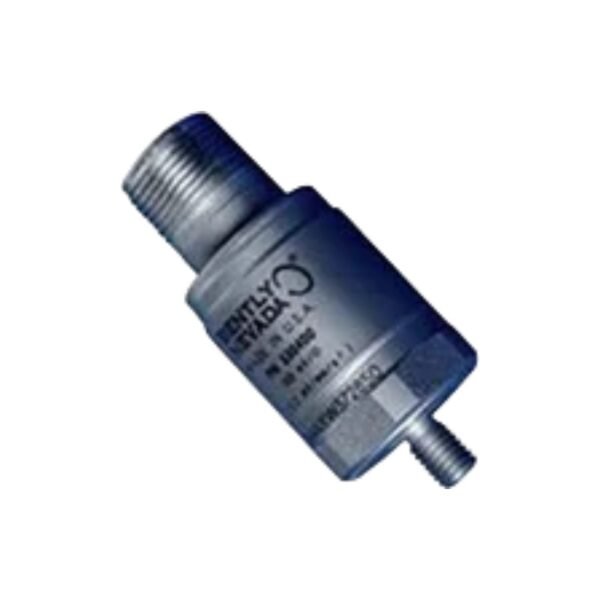

The Bently Nevada 330425-01-05 operates as a rugged, high-performance piezoelectric accelerometer designed for critical machinery applications where casing acceleration measurements are required. Specifically, this transducer excels at high-frequency monitoring, making it ideal for gear mesh inspections and rolling-element bearing diagnostics. By collecting high-frequency casing energy, the internal electronics deliver a clean analog voltage signal directly to continuous monitoring platforms like the Bently Nevada 3500 protection system.

Hardware Specifications

Operational Dynamics and Signal Integration

The Bently Nevada 330425 distinguishes itself from the closely related 330400 model by offering a significantly larger amplitude limit ($75\text{ g}$ peak versus $50\text{ g}$ peak) combined with a lower sensitivity profile ($25\text{ mV/g}$ versus $100\text{ mV/g}$). Consequently, it tolerates extreme, high-energy impact spikes without overloading or clipping the signal.

Important Caution: If you plan to integrate the raw acceleration output into velocity metrics, execute the process with extreme caution. Improper installation or inadequate sensor seating can introduce false noise spikes that worsen significantly during integration. For applications prioritizing pure velocity measurements, Bently Nevada recommends utilizing the 330500 Velomitor sensor instead.

Frequently Asked Questions

Q: What specific hardware variables do the “-01” and “-05” option codes define?

A: The option code -01 designates a $1/4\text{-28 UNF}$ integral mounting stud, which establishes a secure, rigid mechanical connection to the machine casing. Meanwhile, the option code -05 indicates that the module carries multiple explosive-environment certifications, including CSA, ATEX, and IECEx intrinsic safety and non-incendive ratings.

Q: What is the maximum distance I can route field cabling from the sensor head?

A: You can run standard 3-conductor shielded instrumentation cables up to 305 meters (1000 feet) from the accelerometer to the monitor rack without encountering any signal attenuation or measurement degradation.

Field Installation Guidelines

• Shielding and Ground Isolation: First, connect your 3-wire shielded cable via the MIL-C-5015 terminal connection. Because the accelerometer housing provides complete electrical isolation from the internal circuit (case isolated), you should ground the cable shield at a single termination point inside the main monitoring panel to block destructive ground loops.
• Surface Preparation: Always machine the mounting surface to a flatness of at least 32 microinches RMS. Ensure the targeted framework is entirely free of paint, scale, and rust particles, as any surface unevenness can cause the sensor to pick up non-machinery resonance.
• Mechanical Torque Setup: Thread the $1/4\text{-28 UNF}$ integral stud into the prepared surface. Next, tighten the transducer body using a calibrated torque wrench to exactly 4.1 N-m (3.0 ft-lb). Tightening outside this limit compromises high-frequency signal transmission or risks cracking the mounting threads.
