Description

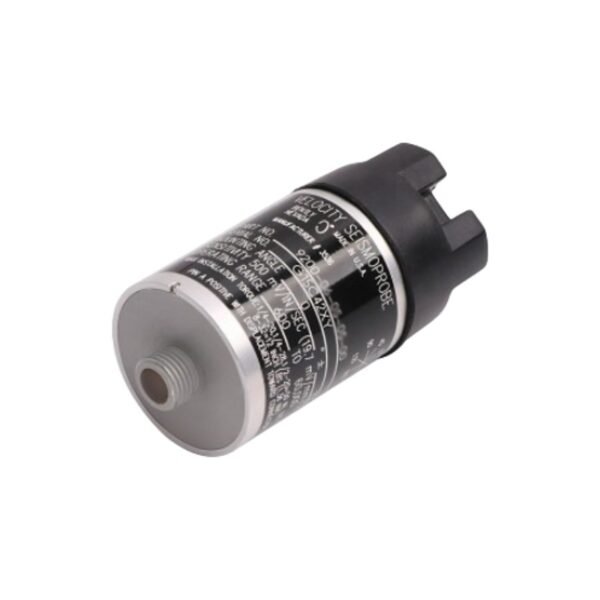

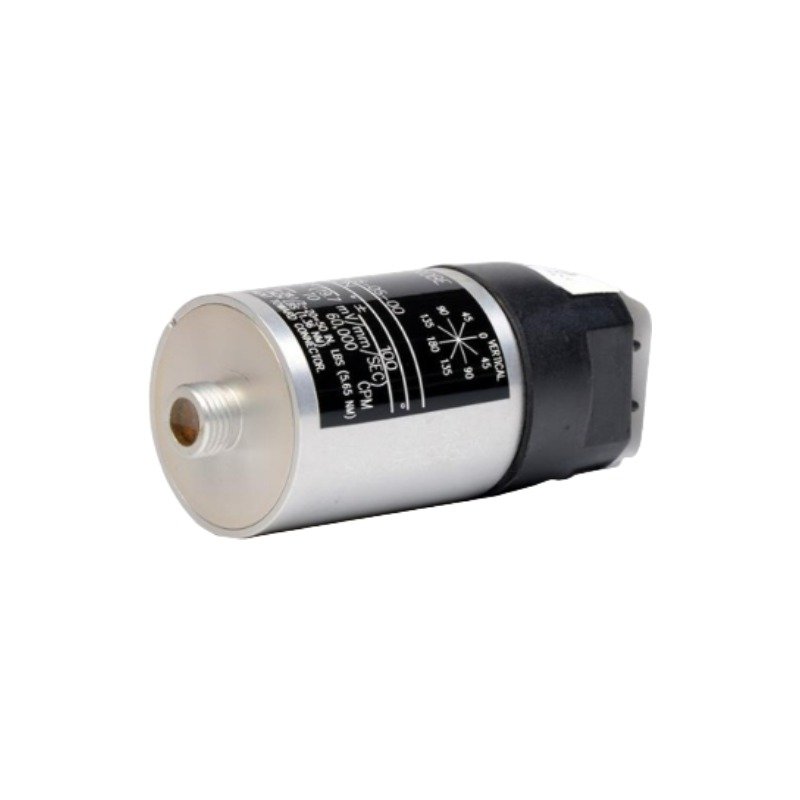

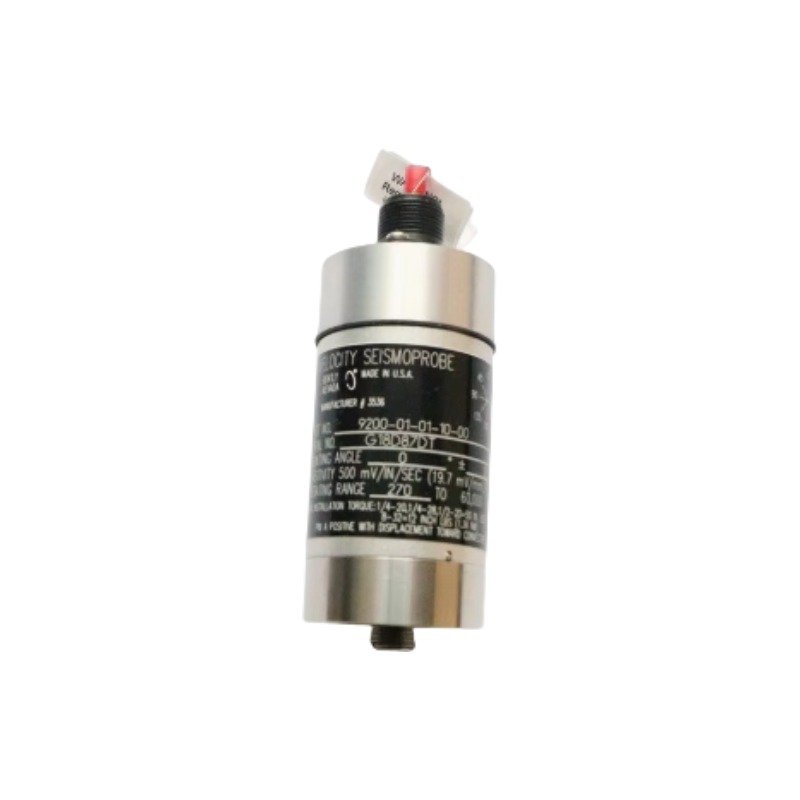

Configured for absolute casing vibration measurements in machinery monitoring networks, the Bently Nevada 9200-09-01-01-00 operates as a moving-coil velocity transducer. Specifically, the self-generating hardware functions without external power excitation and subsequently converts structural or bearing housing vibration velocity into a proportional analog voltage output. Consequently, this design executes the direct delivery of dynamic machinery velocity metrics to machinery protection monitors or diagnostic instruments.

Hardware Specifications

Transducer Dynamics and Operating Constraints

The Bently Nevada 9200-09-01-01-00 relies on internal moving-coil dynamics rather than eddy-current probe scaling to measure absolute structural velocities. Field setup replaces standard proximity probe gap voltage validation (-10 VDC targets) with mechanical alignment based on the calibrated mounting orientation code. Because this specific configuration utilizes the 09 option spring package, it can be physically deployed across omnidirectional angles from vertical to horizontal (0 deg to 180 deg) while maintaining a minimum operating frequency cutoff of 15 Hz. To preserve signal integrity across multi-transducer networks, the heavy anodized aluminum housing provides electromagnetic shielding; as a result, the hardware minimizes signal degradation when field lines route through parallel wireways.

Frequently Asked Questions

Q: What specific layout parameters do the options in the 9200-09-01-01-00 configuration define?

A: The option codes define a 0 to 180 deg universal mounting orientation angle with a 15 Hz low-end cutoff frequency (09), a top-mount connector interface layout configuration (01), a standard circular 1/4-20 UNC mounting base thread (01), and a configuration requiring no specialized agency approvals (00).

Q: Can this self-generating moving-coil transducer drive long field cable distances?

A: Yes. Because the transducer generates a low impedance voltage signal via its internal 1.25 kOhm nominal coil resistance, it can drive shielded instrumentation cables up to significant distances without high-frequency signal attenuation.

Field Installation Guidelines

• Shielding and Grounding: First, secure the twisted-pair field wiring to the top-mount connector assembly. Afterward, ground the overall cable shield at a single point inside the instrument panel or monitor rack to prevent ground loop noise from corrupting the dynamic velocity wave signal.
• Conduit and Routing Rules: Always route transducer output cables inside dedicated, grounded metal conduits. In addition, avoid running signal conductors parallel to high-voltage AC lines or variable frequency drive (VFD) motor cables to suppress electromagnetic noise.
• Mechanical Mounting: Torquing forces affect sensor performance; therefore, tighten the 1/4-20 UNC threaded mounting stud to exactly 5.6 N-m (50 in-lb) using a calibrated torque wrench. Ensure the mounting surface is clean, flat, and free of paint layers to allow proper transmission of high-frequency casing energy.
