Description

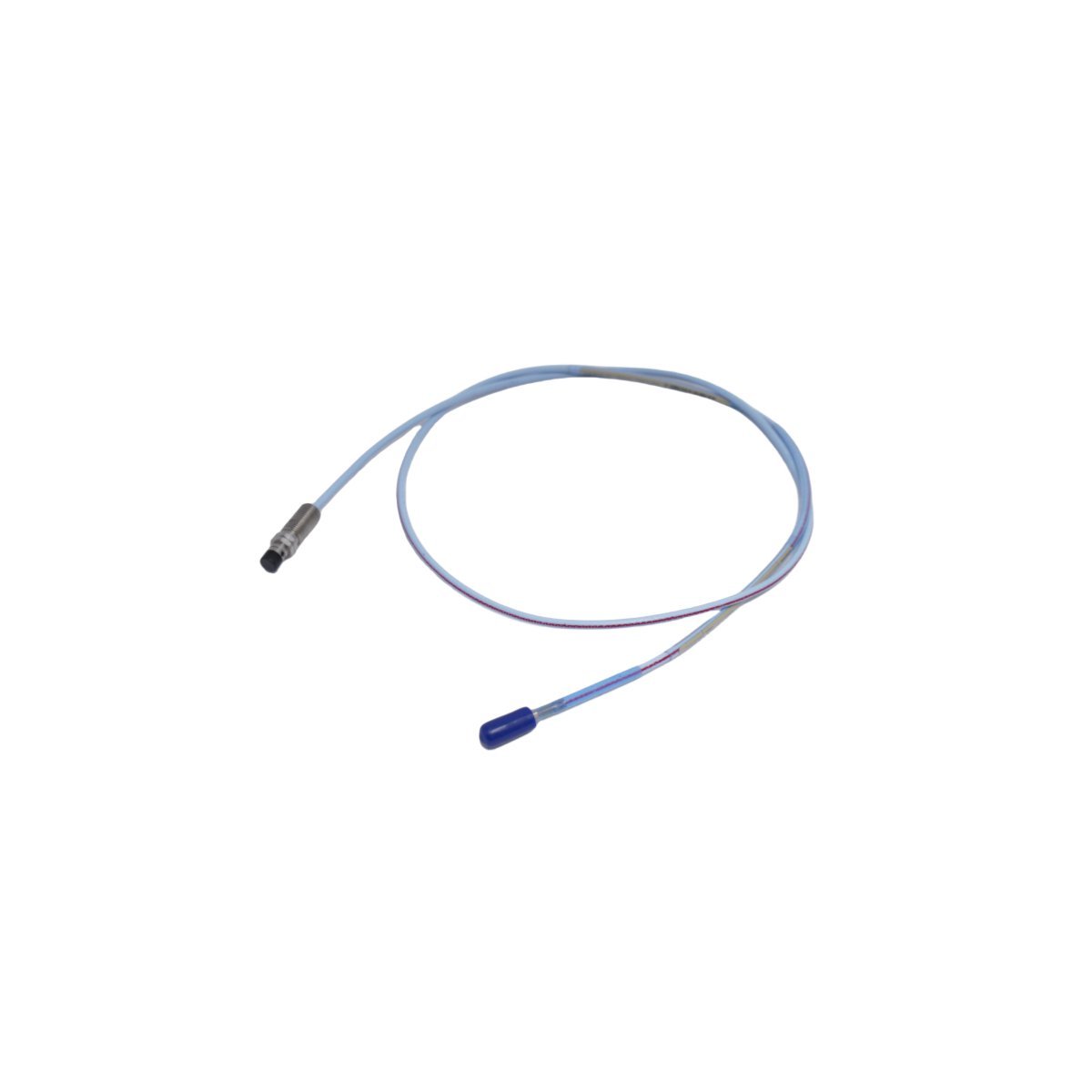

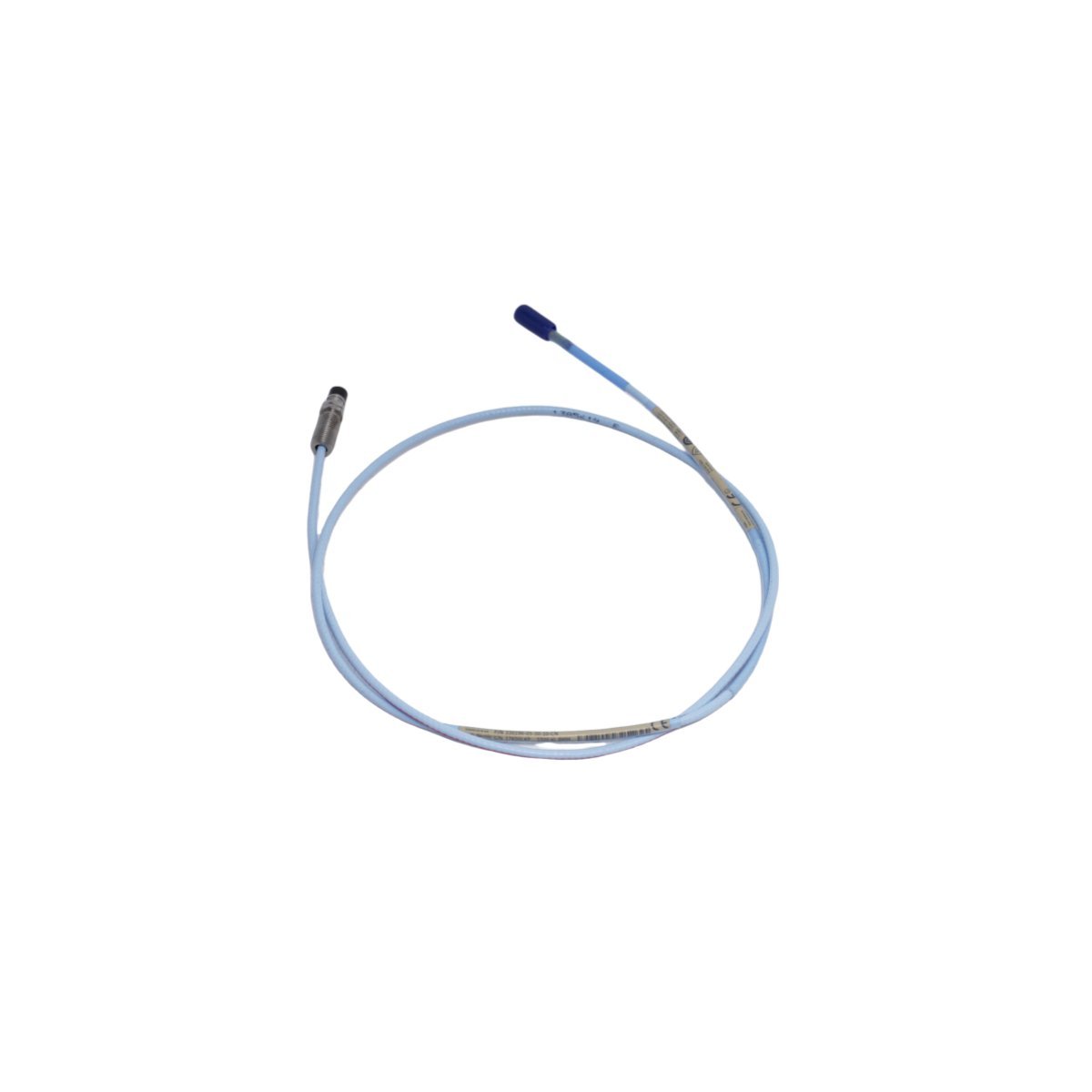

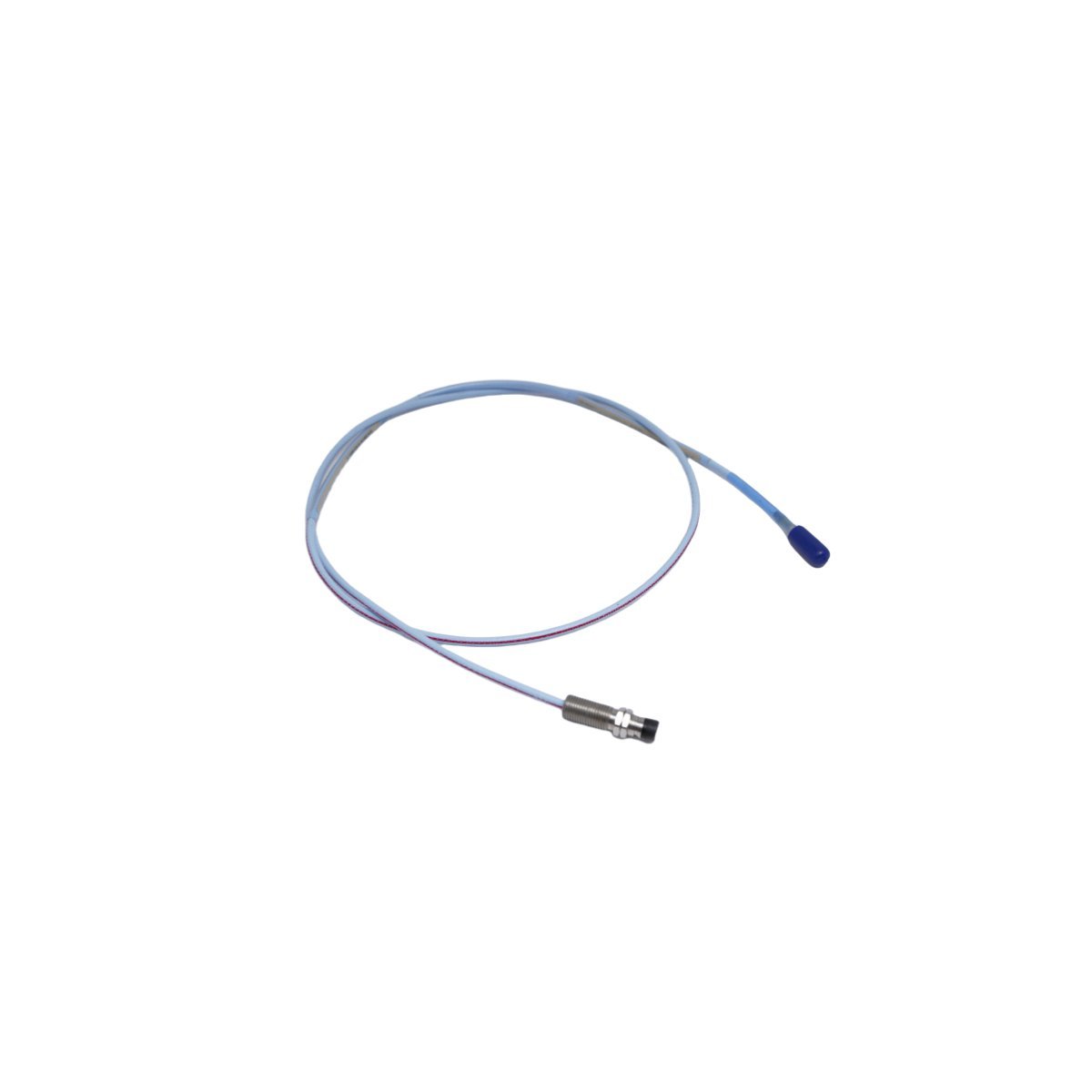

The Bently Nevada 330196-05-30-10-CN serves as a specialized eddy current proximity sensor for industrial asset protection. This transducer excels at monitoring radial vibration and axial thrust position on rotating shafts. Consequently, it provides early detection of critical mechanical faults like shaft misalignment or bearing wear. The non-contact design ensures precise measurements without physical interference or friction. This allows for continuous observation of high-speed machine components in real time.

Technical Configuration and Build

This specific sensor utilizes a reverse mount housing design for unique installation requirements. The configuration features a 0.5-inch unthreaded length and a 3.0-inch total case length. Additionally, the unit includes a 1.0-meter cable ending in a miniature coaxial ClickLoc connector. The “-CN” suffix confirms that this variant meets regional industrial standards for the Chinese market. Furthermore, the probe tip uses high-performance polyphenylene sulfide (PPS) to resist chemical degradation and moisture.

Heavy Industry Applications

Operational teams deploy this sensor in demanding sectors like power generation and petrochemical processing. It thrives on critical equipment including centrifugal compressors, steam turbines, and large industrial pumps. Because it features a rugged construction, the probe withstands high temperatures and mechanical stress. The shielded cable also minimizes electromagnetic interference from surrounding electrical hardware. This ensures data integrity for the connected 3500 series machinery protection rack.

System Integration and Longevity

The 330196-05-30-10-CN integrates seamlessly with standard 3300 XL Proximitor sensors. This compatibility enables a streamlined upgrade path for existing vibration monitoring systems. Moreover, the sensor supports predictive maintenance by identifying issues before catastrophic failures occur. This proactive approach significantly reduces unplanned downtime and repair expenses for the facility. Reliable performance under pressure makes this probe a staple in global machinery safety.

Technical Specifications Table

Operational Advantages

• Non-contact sensing eliminates physical wear on the target shaft and probe tip.
• Gold-plated connectors provide superior electrical conductivity and prevent atmospheric corrosion.
• Reverse mount design simplifies installation in specific machine casing environments.
• High sensitivity of 7.87 V/mm ensures accurate capture of micro-vibrations.
• Fully interchangeable components allow for fast field replacements during maintenance.
