Description

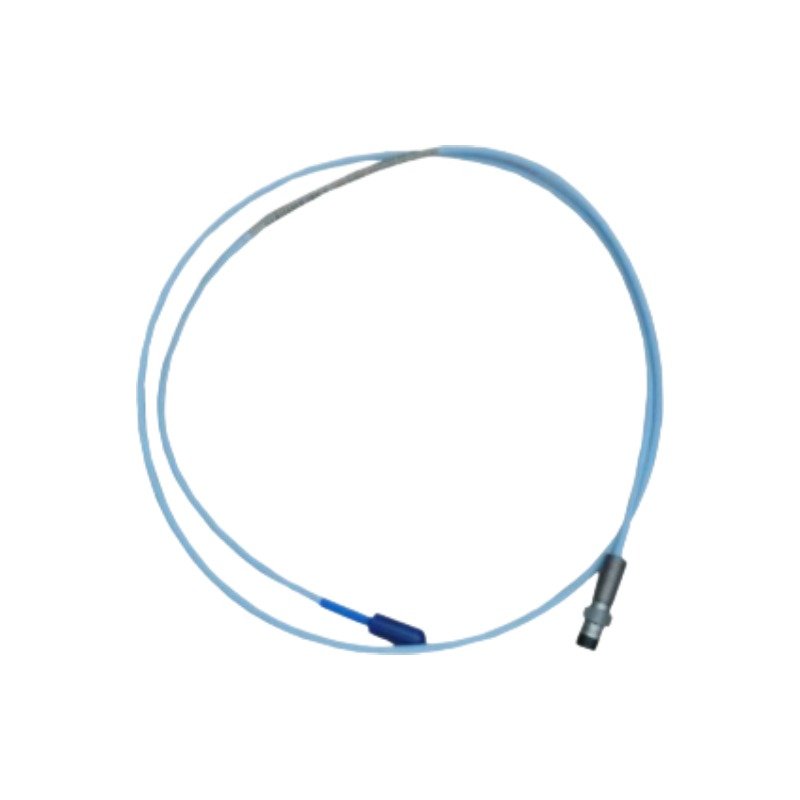

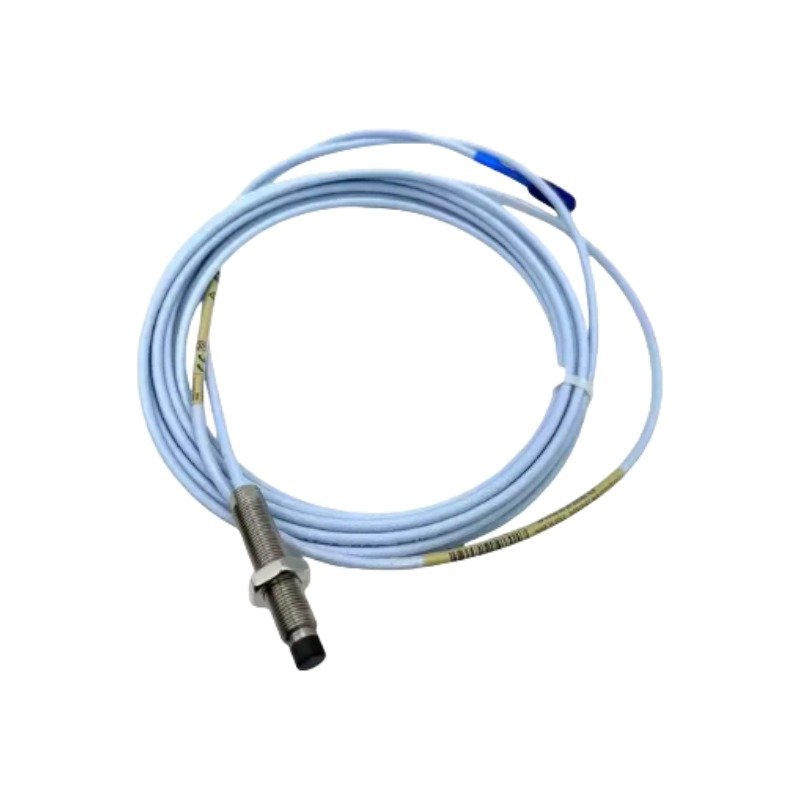

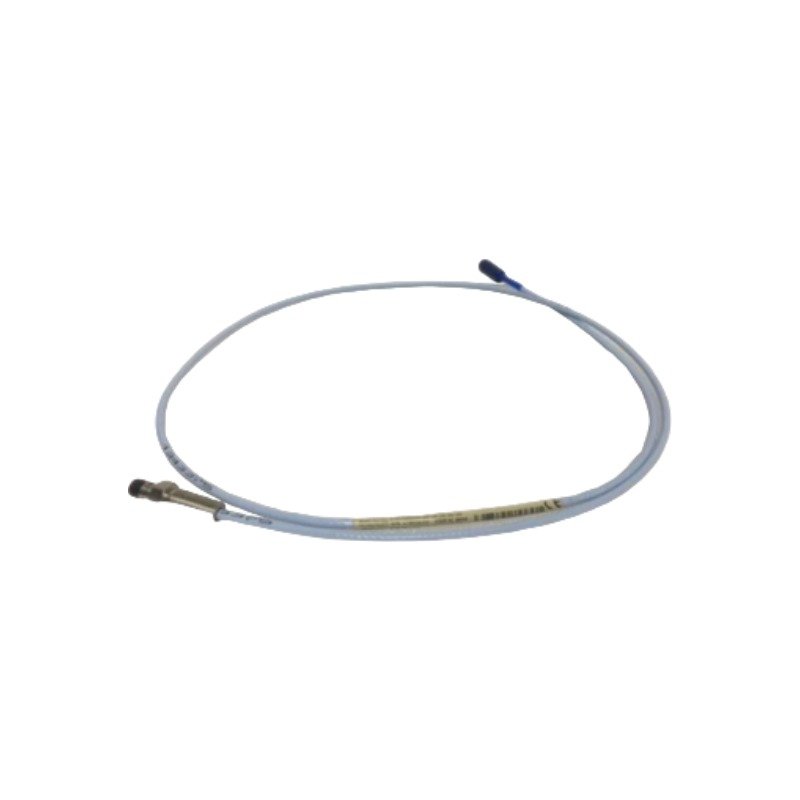

The Bently Nevada 330195-02-12-05-00, also cataloged as the 330195 Proximity Probe, operates as a dedicated hardware component for eddy-current signal generation and non-contact displacement measurement within 3300 XL 8 mm Proximity Transducer System platforms.

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous analog voltage directly proportional to the physical gap between the probe tip and the observed conductive target. Consequently, during commissioning, the field technician must perform gap voltage validation (-10 VDC targets) to verify that the transducer operates within the linear midpoint of the calibration curve. Meanwhile, the high-frequency demodulation circuitry tracks high-velocity rotor dynamics, capturing precise metrics for radial vibration, axial thrust position, and phase reference indication. Furthermore, internal cross-talk suppression features actively prevent signal degradation from electromagnetic coupling when technicians install multiple probes in close proximity on the same machine bearing housing.

Frequently Asked Questions

Q: How does the reverse mount design of the Bently Nevada 330195-02-12-05-00 modify physical installation methods?

A: The reverse mount configuration allows technicians to install the probe from the outside of the machine housing through a hole threaded from the rear, which means operators can replace the hardware without removing the main bearing cover.

Q: What physical function does the integrated Viton O-ring perform?

A: The Viton O-ring seals differential pressure between the probe tip and the exterior casing, preventing process lubricants or synthetic oils from escaping past the sensor boundary into the external housing environment.

Field Installation Guidelines

• Thread the reverse-mount probe casing into the designated 3/8-24 UNF mounting port from the exterior side of the bearing housing.
• Next, adjust the physical position of the probe tip relative to the target shaft until the monitoring instrument measures an initial gap voltage of -10 VDC.
• Connect the miniature coaxial connector to the extension cable, applying finger-tight torque to engage the integrated locking coupling mechanisms completely.
• Subsequently, route the integrated 0.5-metre lead cable through flexible metal conduit, isolating the sensor line from ambient high-voltage AC paths to prevent electrical noise.
• Finally, verify that the Viton O-ring sits squarely within its seating groove to achieve proper sealing torque without tearing the elastomer material.
