Description

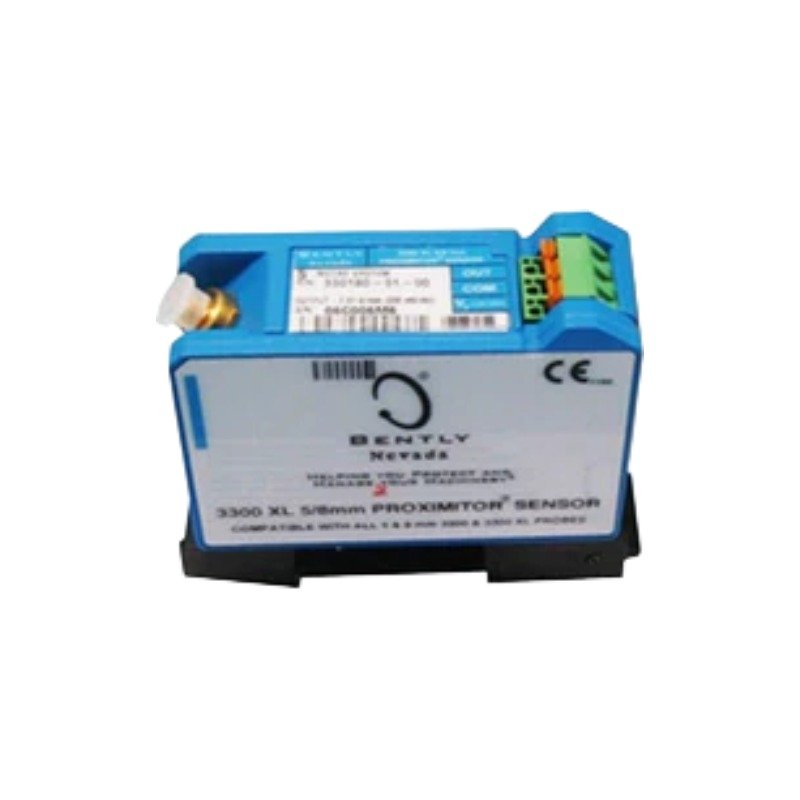

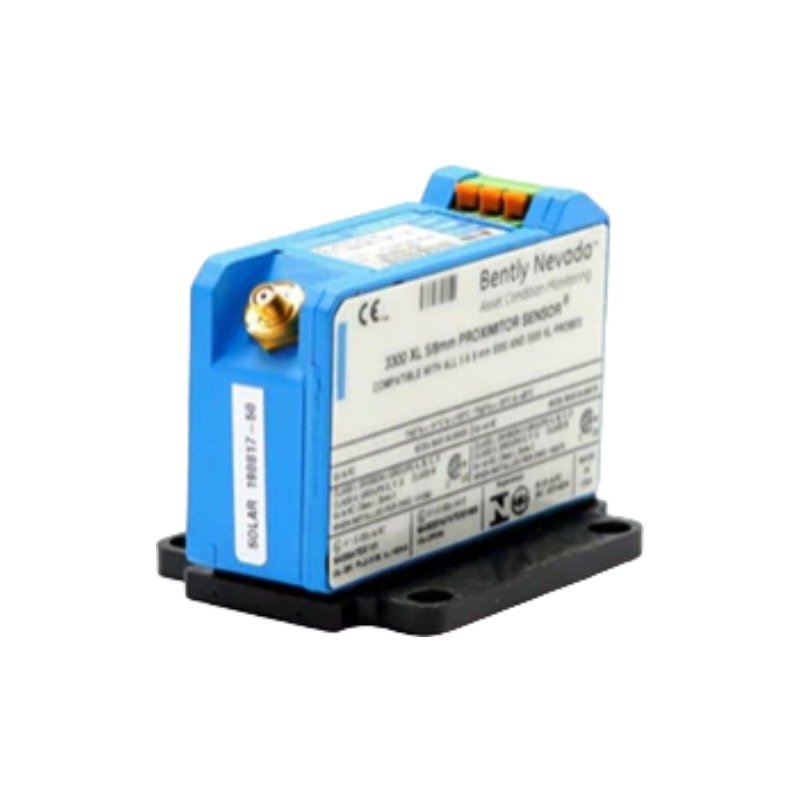

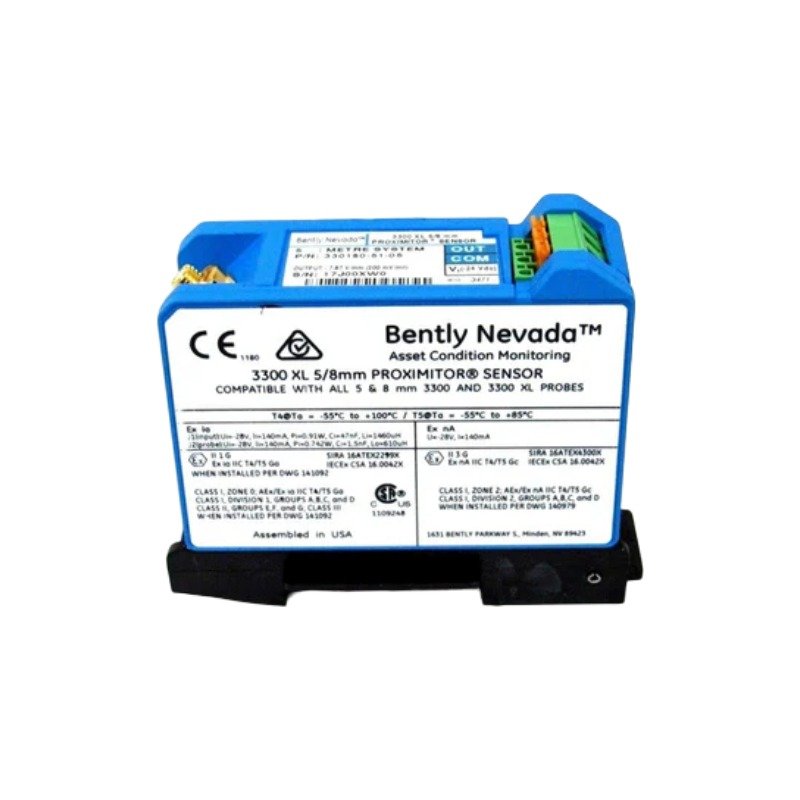

Configured for non-contacting displacement measurement in proximity transducer networks, the Bently Nevada 330180-51-CN (330180 Proximitor Sensor) provides direct physical/electrical execution. Specifically, the hardware accepts high-frequency radio frequency signals from an interconnected eddy-current probe. Consequently, the internal demodulator continuously converts these physical gaps into linear analog voltage signals. Finally, the module outputs these voltage transitions directly to external monitoring racks to track static and dynamic mechanical positions.

Suffix Breakdown & Model Matrix

Hardware Specifications

Proximity Monitoring & Eddy-Current Probe Scaling

The instrument relies on precise internal eddy-current probe scaling to translate electrical impedance shifts into readable positioning metrics. Furthermore, system calibration requires verification through gap voltage validation (-10 VDC targets) at the mechanical installation centerpoint. This setup establishes signal symmetry across the linear spectrum. As a result, this baseline allows accurate recording of multi-axis displacement parameters to evaluate high-speed rotor dynamics. In addition, built-in signal isolating logic provides cross-talk suppression between parallel proximity loops running in close proximity within the machine case.

Frequently Asked Questions

Q: Can a 5.0 meters Proximitor Sensor operate with a 9.0 meters physical cable assembly?

A: No. The internal oscillator tuning matches the electrical characteristics of a 5.0 meters system length exactly. Therefore, modifying the physical cable length disrupts the calibrated resonance parameters, degrades accuracy, and breaks linear scale factor tracking.

Q: Is this sensor module constructed to allow live hot-swap installation on powered terminal blocks?

A: No. The internal demodulation circuitry lacks dynamic isolation switches for live connection. Consequently, you must fully isolate the input terminal power before mating or disconnecting field wires to prevent transient surge damage.

Field Installation Guidelines

For mechanical installation, snap the chassis base directly onto standard 35 mm DIN rails. Meanwhile, ensure the integrated locking clip engages completely to resist physical displacement from operational machine vibrations. You must also mount the module inside a protective, weatherproof enclosure. This housing maintains localized ambient values within the specified boundaries.

Regarding electrical connections, insert clean, unbraided conductors into the dedicated terminal block terminals. Concurrently, tighten the coaxial interfaces securely without applying excessive torque that could crack the internal connection links. Furthermore, route all RF probe cables away from high-voltage alternating current distribution lines, variable frequency drives, and heavy inductive switchgear to avoid electromagnetic coupling. Finally, terminate the overall instrumentation outer shield exclusively at the monitoring rack’s dedicated system ground terminal block to prevent ground-loop current circulation.
