Description

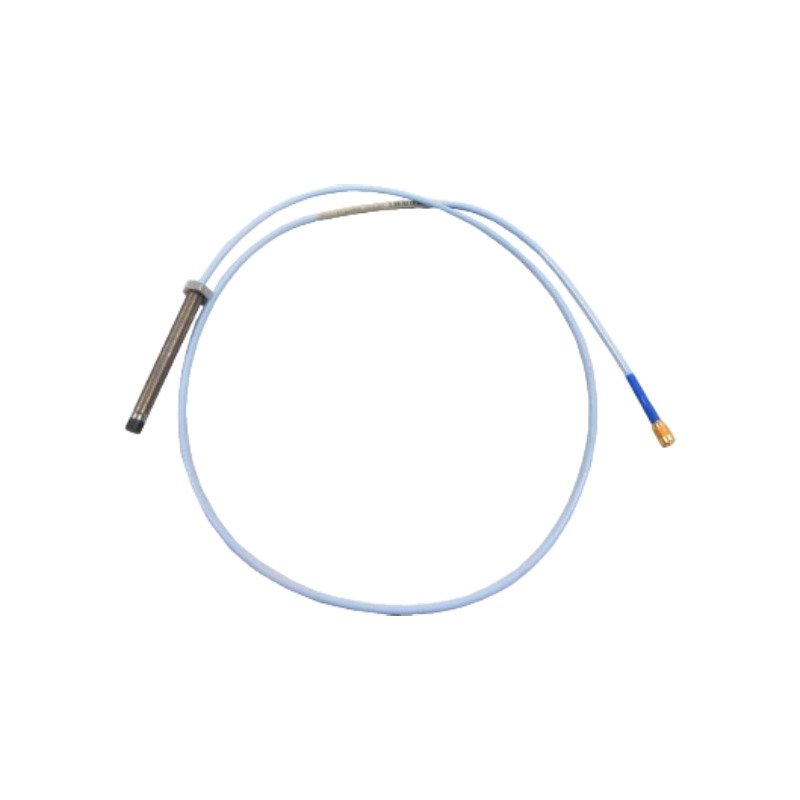

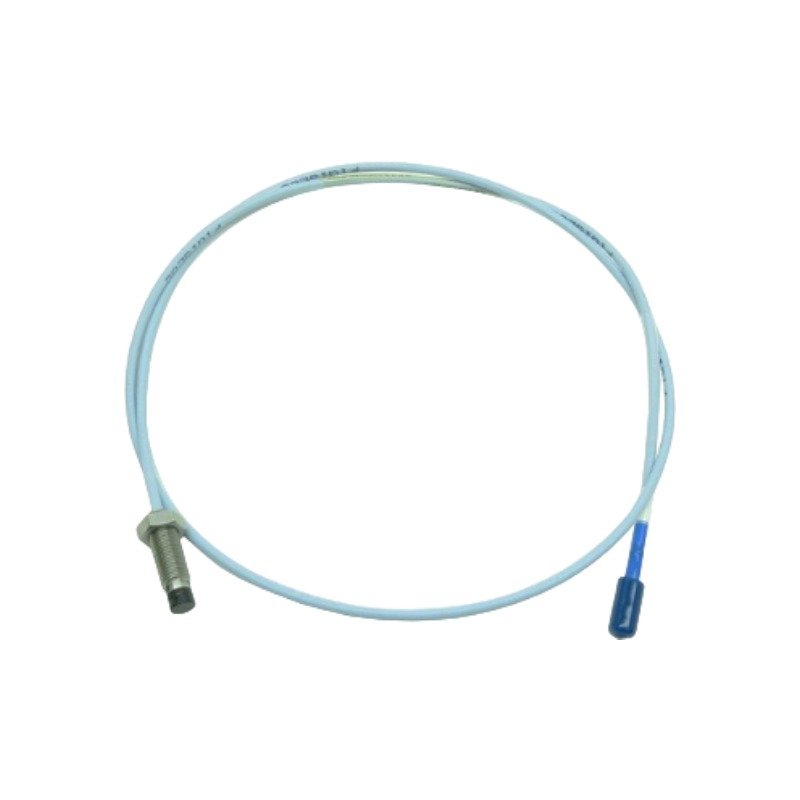

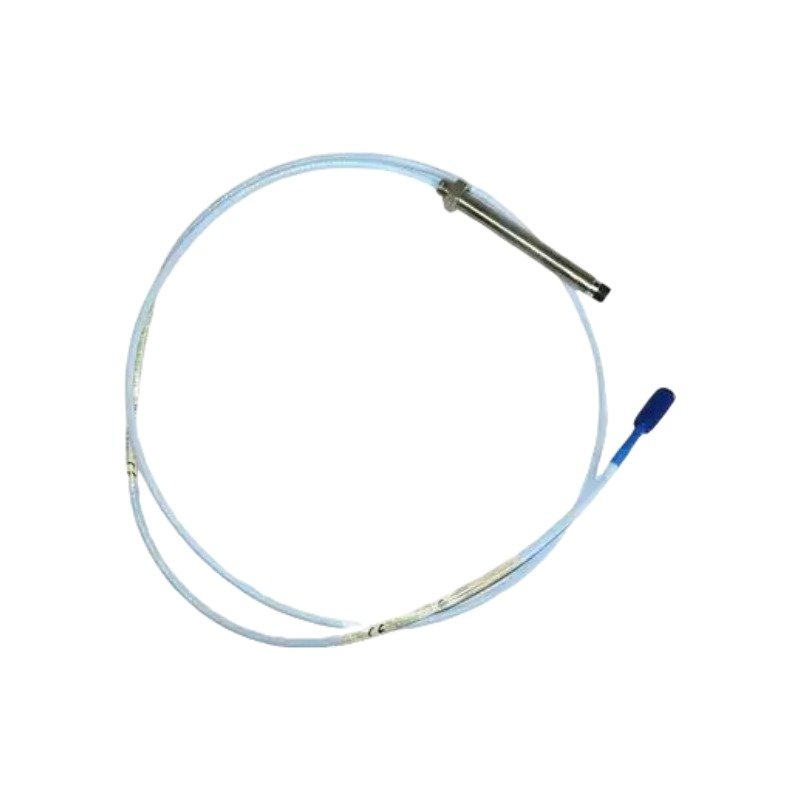

The Bently Nevada 330171-00-12-10-01-05, also cataloged as the 330171 Proximity Sensor, serves as the primary 330171 Proximity Sensors utilized to execute non-contacting displacement and vibration measurements across 3300 XL NSv Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

This proximity sensor actively manages eddy-current probe scaling because it preserves strict geometric and electromagnetic characteristics at the probe tip. Consequently, the specialized NSv (Narrow System vent) geometry optimizes performance for small-target or confined-space installations where standard probes experience side-viewing cross-talk. The physical configuration ensures precise gap voltage validation across nominal -10 VDC targets during static calibration. Because the sensor head suppresses side-gap interference, the component transmits clear rotor dynamics data, including radial vibration and axial thrust position, from small shaft diameters or tight counterbores without introducing measurement drift.

Frequently Asked Questions

Q: Does this proximity sensor support hot-swapping while the monitoring loop is live?

A: Yes. Technicians can safely disconnect the sensor from its extension cable or Proximitor while the rack is powered, provided the surrounding atmosphere is verified as non-hazardous.

Q: What physical design features do the options “00-12-10” specify for this probe assembly?

A: The “00” option specifies an unthreaded length of 0.0 inches, the “12” option designates a 1.2-inch total case length, and the “10” option provides a 1.0-meter (nominal) total cable length with a miniature ClickLoc connector.

Q: Can this NSv probe interface with standard 3300 XL 8 mm Proximitor sensors?

A: No. The 3300 XL NSv probe requires a dedicated 3300 XL NSv Proximitor sensor and matching NSv extension cable because the tuning and scale factors differ fundamentally from standard 8 mm systems.

Field Installation Guidelines

• Shielding and Grounding: Insulate the coaxial ClickLoc connection using connector protectors or heat-shrink tubing. Do not allow the connector shell to contact the machine housing or conduit, because contact creates parallel ground paths that corrupt the high-frequency RF signal loop.
• Routing Constraints: Route the probe lead away from heavy power cabling. Maintain a minimum clearance of 6.4 mm from surrounding structural metals to prevent counterbore side-viewing interference from altering the target calibration.
• Thread Engagement: Ensure a minimum thread engagement of five full turns when installing the probe into the mounting bracket or machine housing to guarantee physical stability under industrial vibration profiles.
