Description

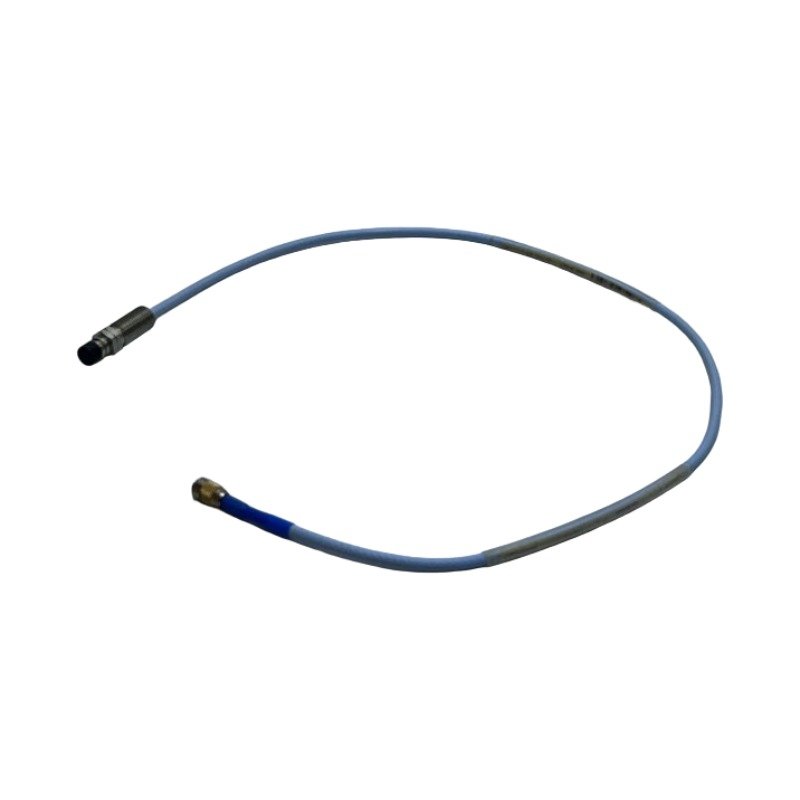

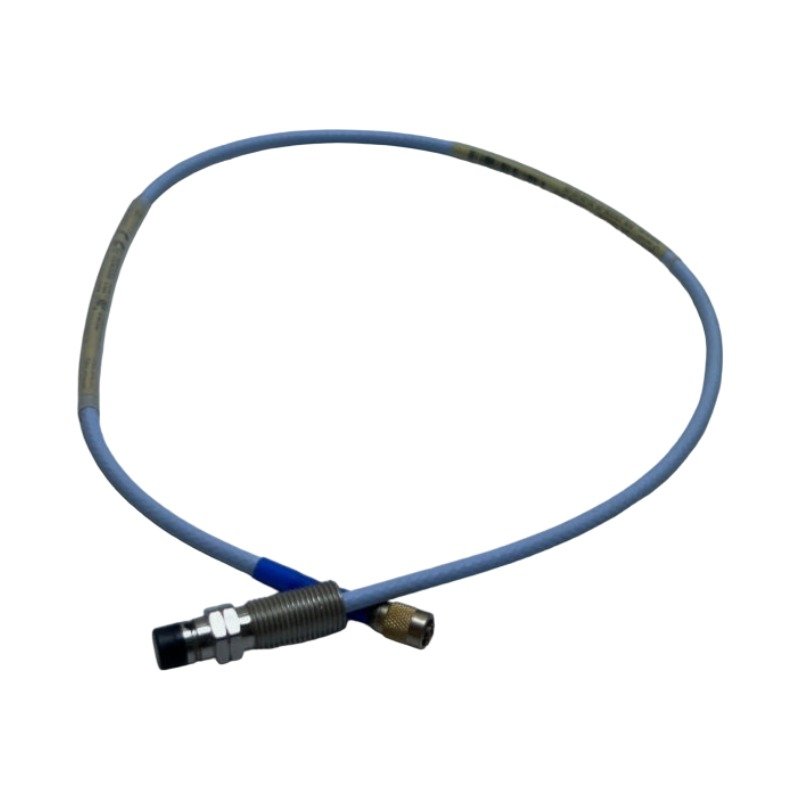

Configured for non-contacting shaft displacement and vibration measurements in restricted-access machinery housing paths, the Bently Nevada 330106-05-30-05-02-00 (330106 8mm Reverse Mount Probe) provides direct physical/electrical execution. The hardware translates physical distance changes between the probe face and a moving target surface into linear voltage shifts, routing high-fidelity dynamic indicators continuously to rack-mounted monitor channels.

Suffix Breakdown & Model Matrix

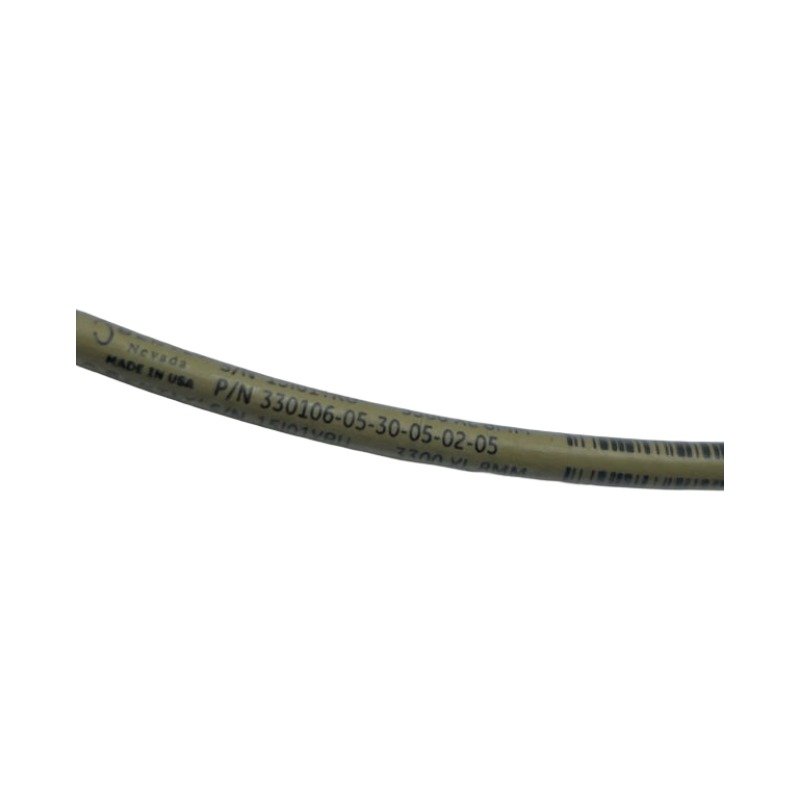

The 330106-05-30-05-02-00 configuration breakdown determines the factory structural layout parameters:

• 330106: Identifies the base 3300 XL 8mm Reverse Mount Proximity Probe assembly.
• 05: Establishes an unthreaded housing length option of 0.5 inches.
• 30: Sets the overall case length option to 3.0 inches with standard M10 x 1 threads.
• 05: Dictates a total cable length option of 0.5 meters (1.6 feet).
• 02: Supplies a miniature gold-plated ClickLoc coaxial connector without additional armoring.
• 00: Specifies that standard commercial agency approvals are required, with no special hazardous area certifications.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 330106-05-30-05-02-00 utilizes precise eddy-current probe scaling to convert targeted distance changes into an exact scale factor of 7.87 V/mm (200 mV/mil). During standard internal installation loops, initial gap voltage validation targets a nominal -10 VDC output baseline, anchoring the module at the exact center of its linear calibration. This reverse-mount configuration enables insertion from outside the machine housing into blind brackets, whereby it monitors high-speed rotor dynamics. Concurrently, the multi-layer internal design enforces robust cross-talk suppression, shielding low-voltage induction parameters from interference generated by high-power electrical fields within adjacent slots.

Frequently Asked Questions

Q: What structural advantage does the reverse-mount option provide over a standard proximity probe?

A: The reverse-mount housing allows maintenance crews to insert the probe body through a sleeves or housing port from the outside of the machine casing, locking it directly into internal mounting brackets without dismantling the heavy machinery cover.

Q: Can this 0.5 meter integrated cable attach directly to a standard 3300 XL Proximitor sensor?

A: No. Prior to operation, technicians must link this 0.5 meter probe cable to a matched 4.5 meter or 8.5 meter 3300 XL extension cable to assemble a calibrated 5.0 meter or 9.0 meter system. Bypassing the extension cable completely destroys the linear scale factor.

Field Installation Guidelines

• Mechanical Thread Engagement: Thread the reverse-mount adapter sleeve smoothly into the machine bracket. Subsequently, advance the probe manually to verify that zero thread binding or cross-threading occurs inside the M10 or M14 ports.
• Electrical Calibration Gapping: Check the output across the Proximitor monitor loop with a digital voltmeter while adjusting physical probe position. Clamp the locknuts permanently upon achieving the precise -10.0 VDC gap validation threshold.
• Coaxial Connector Protection: Secure the gold-plated ClickLoc junction completely against fluid contamination. Wrap the connection with self-fusing silicone tape to prevent machine oil from migrating into the coaxial dielectric interface.
