Description

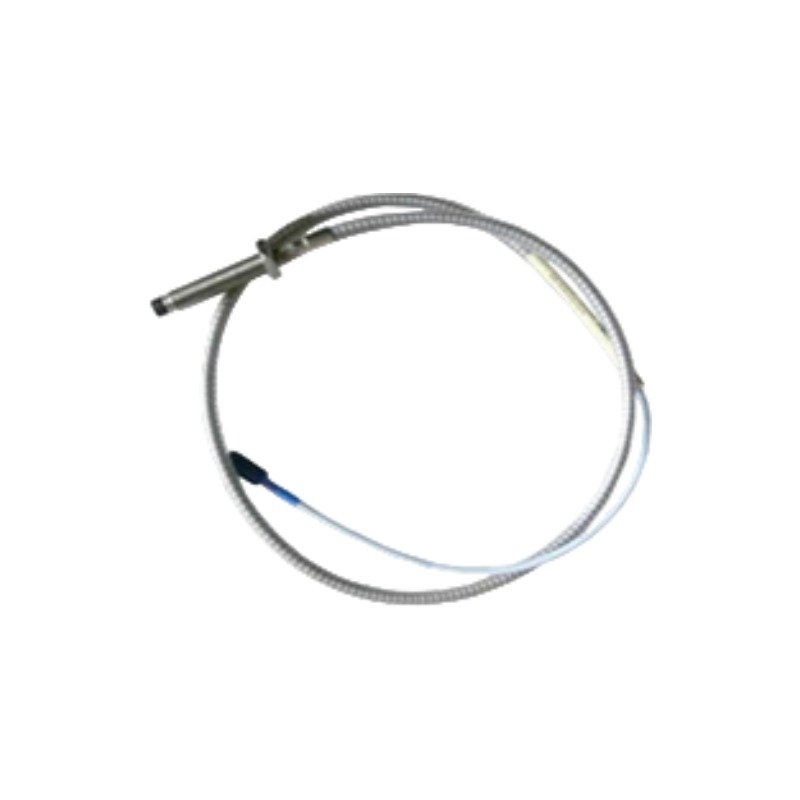

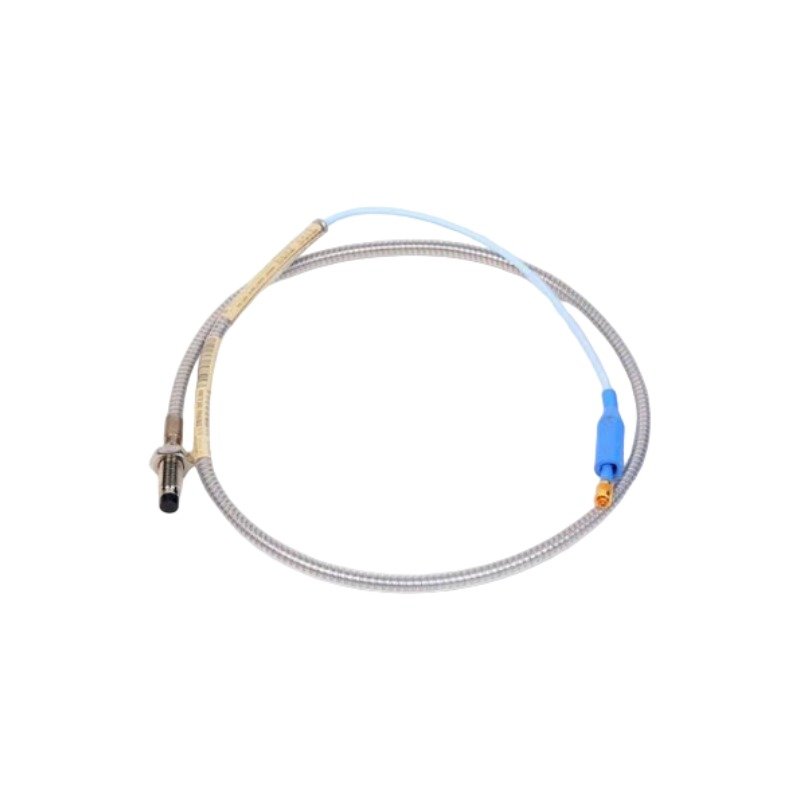

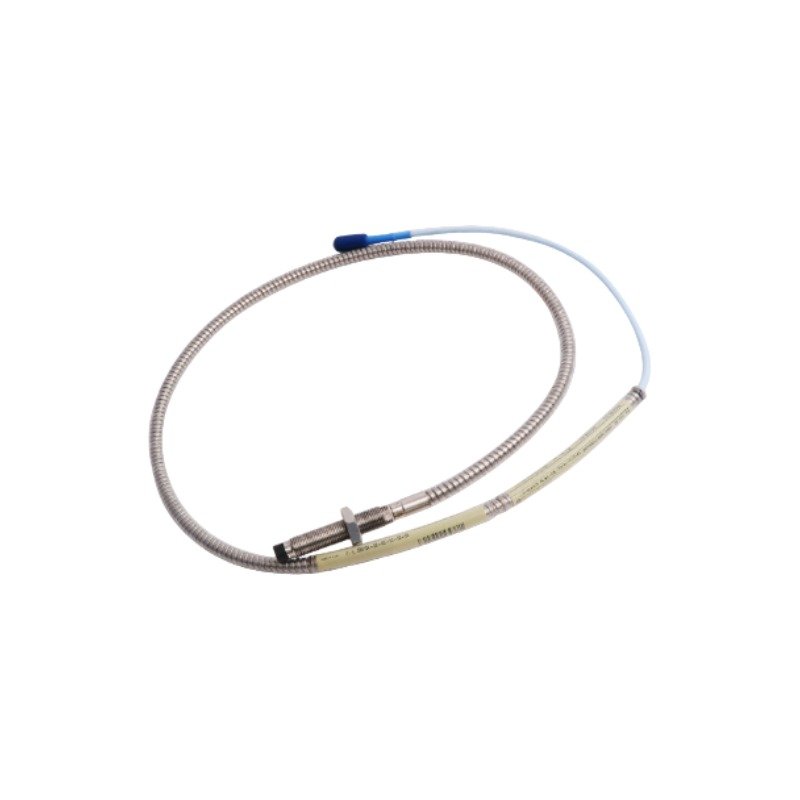

The Bently Nevada 330104-00-20-15-12-05, also cataloged as the 330104 Proximity Probe, operates as a dedicated hardware component for eddy-current signal generation and non-contact displacement measurement within 3300 XL 8 mm Proximity Transducer System platforms.

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous analog voltage directly proportional to the physical gap between the probe tip and the observed conductive target. Consequently, during commissioning, the field technician must perform gap voltage validation (-10 VDC targets) to verify that the transducer operates within the linear midpoint of the calibration curve. Meanwhile, the high-frequency demodulation circuitry tracks high-velocity rotor dynamics, capturing precise metrics for radial vibration, axial thrust position, and phase reference indication. Furthermore, internal cross-talk suppression features actively prevent signal degradation from electromagnetic coupling when technicians install multiple probes in close proximity on the same machine bearing housing.

Frequently Asked Questions

Q: How does the FluidLoc cable option influence performance in hostile industrial environments?

A: The FluidLoc option (-12) features an internal blocking mechanism that prevents oil, moisture, or process gases from wicking through the cable interior into the connection housing, thereby maintaining high insulation resistance.

Q: Can operators deploy this probe without an extension cable in a 5-metre or 9-metre system configuration?

A: No. Because this probe has a fixed total length of 1.5 metres, technicians must mate it with a matching 3.5-metre or 7.5-metre 3300 XL extension cable to achieve the total electrical length required by the Proximitor sensor.

Field Installation Guidelines

• Thread the probe body into the metric M10 x 1 mounting bracket, taking care not to exceed the maximum structural installation torque of 11 N m.
• Next, adjust the physical position of the probe until the multi-meter records a gap voltage reading of -10 VDC, which indicates the center of the linear calibration range.
• Connect the miniature coaxial ClickLoc connector to the extension cable interface, applying finger-tight torque until the internal mechanism clicks.
• Subsequently, route the armored cable assembly through structural brackets, maintaining a minimum bend radius of 25 mm to prevent kinking the outer protective steel conduit.
• Finally, ground the outer armor shell only at the housing bulkhead while leaving the probe tip end isolated to eliminate parasitic ground currents.
