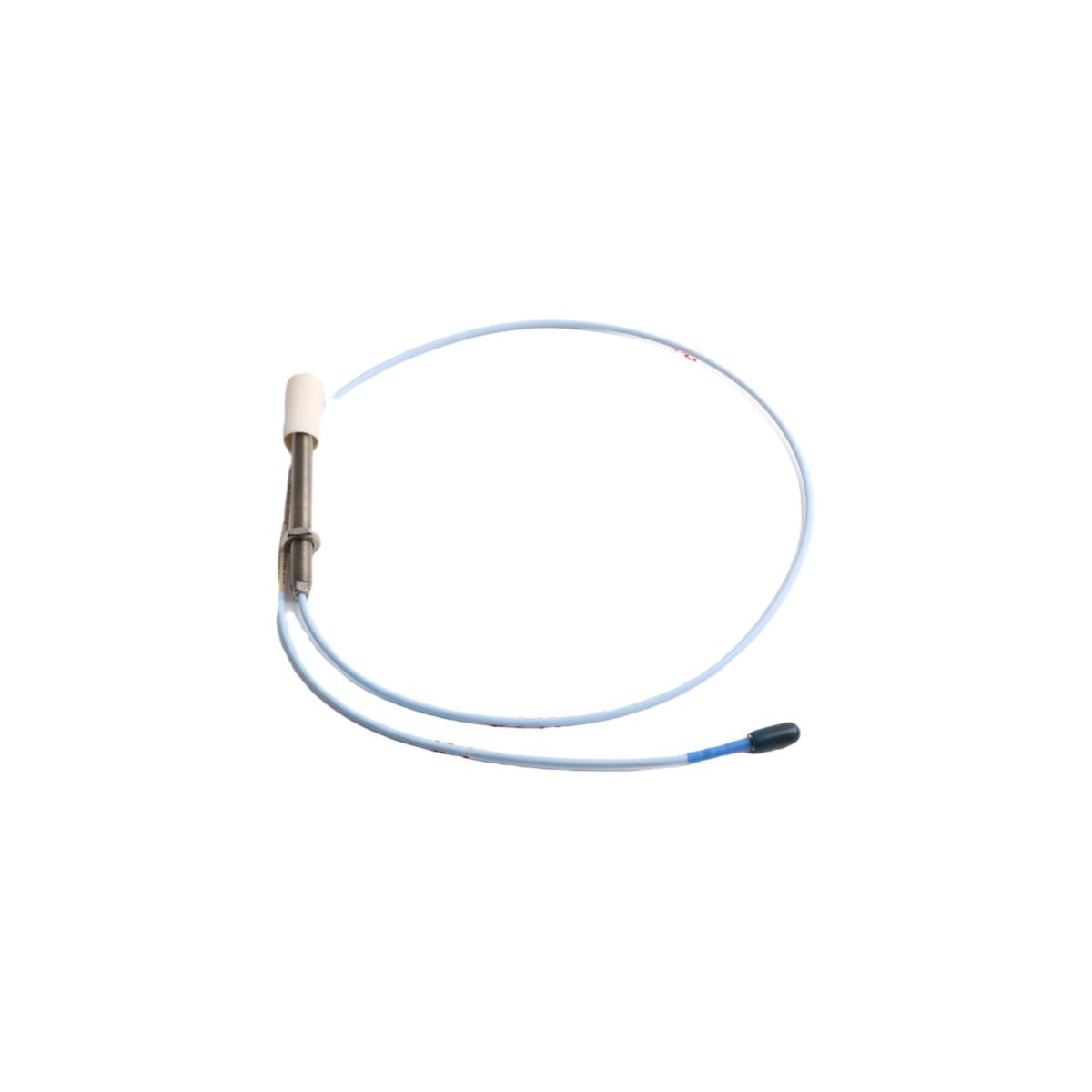

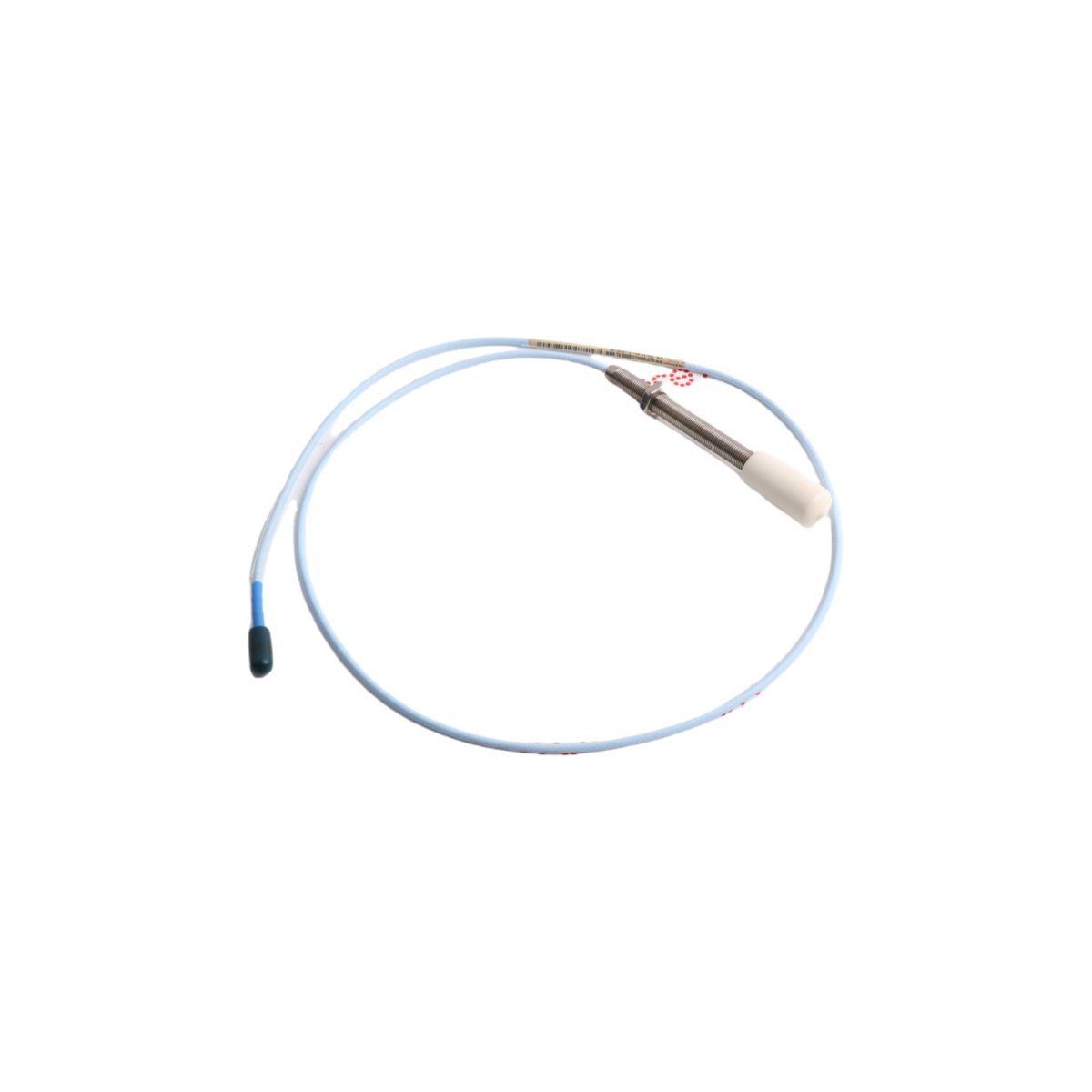

Bently Nevada 330103-02-12-10-02-00 | 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-02-12-10-02-00 serves as a high-precision, non-contact sensor within the 3300 XL 8 mm Proximity Transducer System. This probe utilizes advanced eddy current technology to measure both static and dynamic distances between a target shaft and the probe tip. As a core hardware component, it monitors vibration and axial position for critical rotating machinery. Plant operators rely on this sensor to protect assets like centrifugal pumps, compressors, and motors, identifying mechanical deviations before they lead to catastrophic equipment failure.

Durable Engineering and Material Excellence

Bently Nevada prioritizes environmental resilience and signal stability in the 330103 series. The probe features a tip molded from high-performance Polyphenylene Sulfide (PPS), which offers exceptional thermal stability and chemical resistance. Meanwhile, the 3/8-24 UNF threaded stainless steel body allows technicians to perform precise gap adjustments during the installation process. This rugged construction ensures the sensor maintains a consistent scale factor of $7.87\text{ V/mm}$ ($200\text{ mV/mil}$), even when operating in the extreme temperatures and high-vibration zones typical of oil, gas, and power generation facilities.

Detailed Technical Configuration

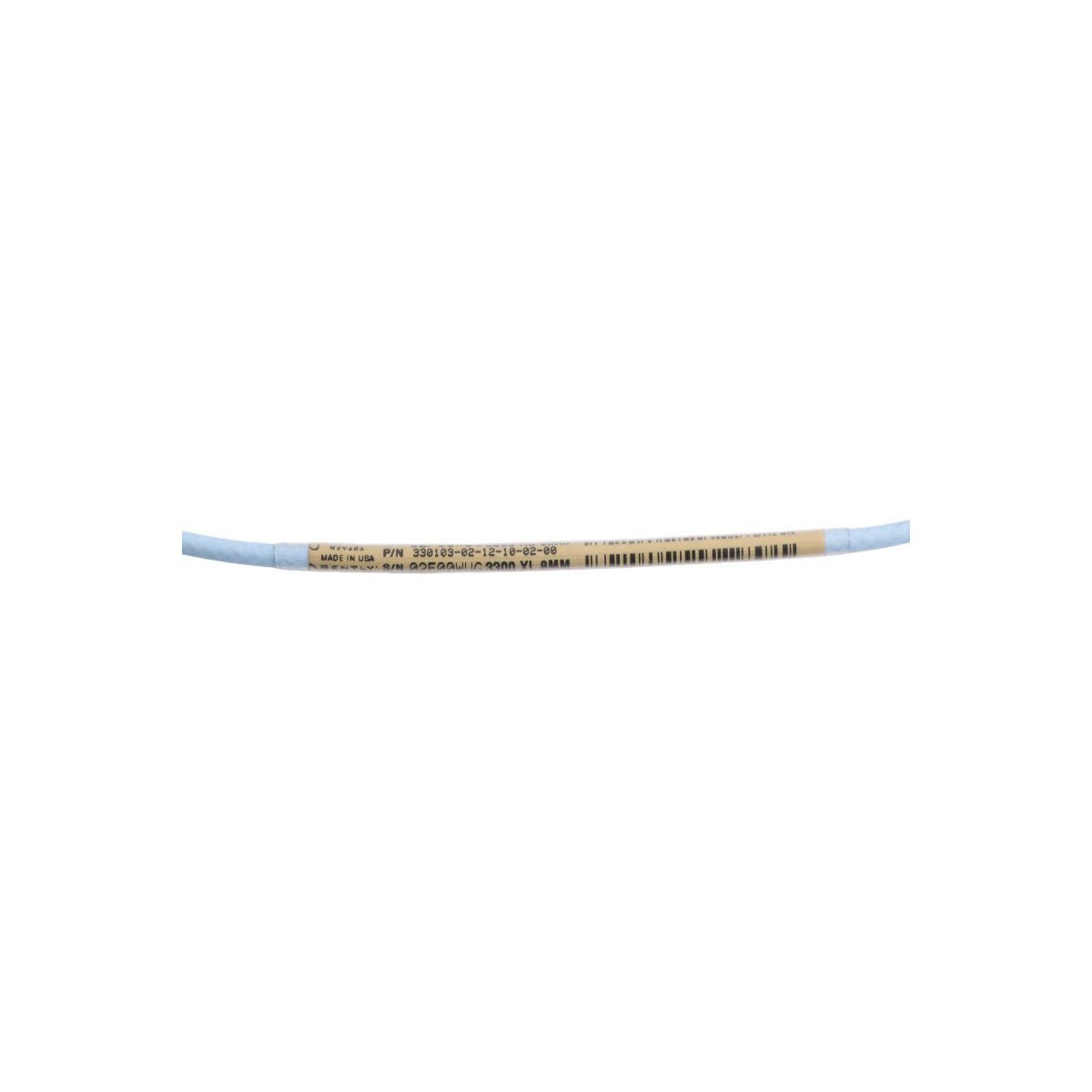

The alphanumeric string in the model number 330103-02-12-10-02-00 defines specific mechanical and electrical properties. The breakdown of these technical specifications includes:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330103-02-12-10-02-00
• Unthreaded Length (02): 0.2 inches
• Overall Case Length (12): 1.2 inches
• Total Cable Length (10): 1.0 meter (3.3 feet)¹
• Connector Type (02): Miniature coaxial ClickLoc connector (includes connector protector)²
• Agency Approvals (00): Standard configuration without specialized hazardous area approvals
• Linear Measurement Range: 2.0 mm (80 mils)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +350 °F)

Integration with Machinery Protection Systems

Combining this proximity probe with a Bently Nevada 3500 series rack or a Proximitor sensor creates a powerful diagnostic solution. Since the 330103-02-12-10-02-00 maintains full compatibility with 3300 XL extension cables, it ensures seamless signal transmission to asset management software. This connectivity helps maintenance teams identify specific faults, such as shaft unbalance, misalignment, and instabilities in bearing fluid films. Consequently, facilities can move away from reactive repairs toward predictive maintenance strategies that significantly extend the Mean Time Between Failures (MTBF).

Long-Term Reliability and Operational Safety

The 330103 series provides over 85,000 hours of continuous service under standard industrial conditions. To prevent signal drift, Bently Nevada uses gold-plated ClickLoc connectors that resist contact oxidation. Additionally, the moisture-resistant design seals the tip-to-body interface against fluid ingress. This high level of reliability guarantees that the machinery protection system receives a stable, high-fidelity signal. By maintaining signal integrity, the probe prevents both costly false alarms and the failure to detect genuine emergency shutdown events in mission-critical environments.
