Description

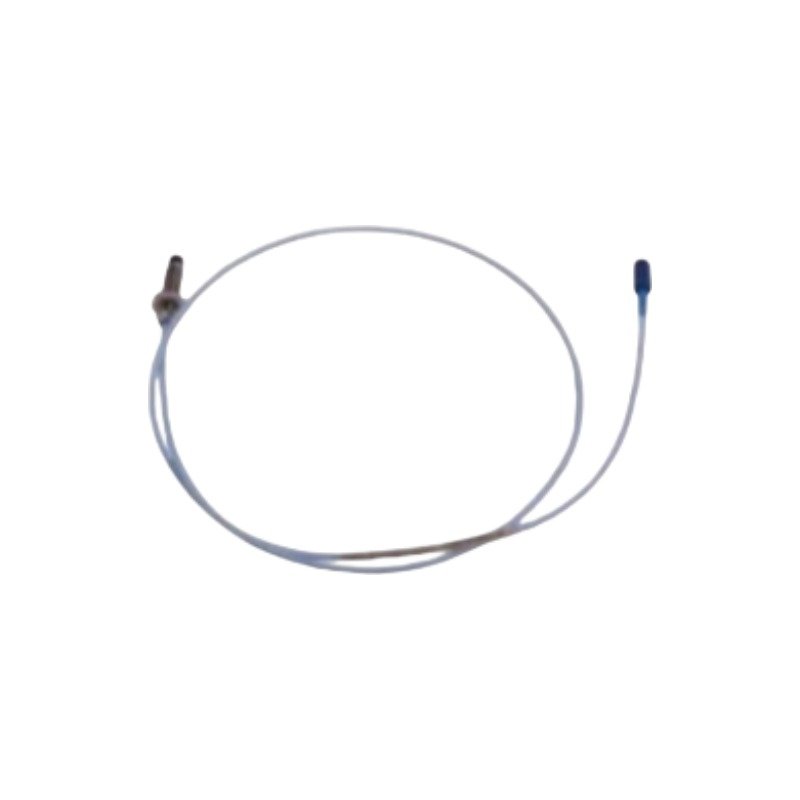

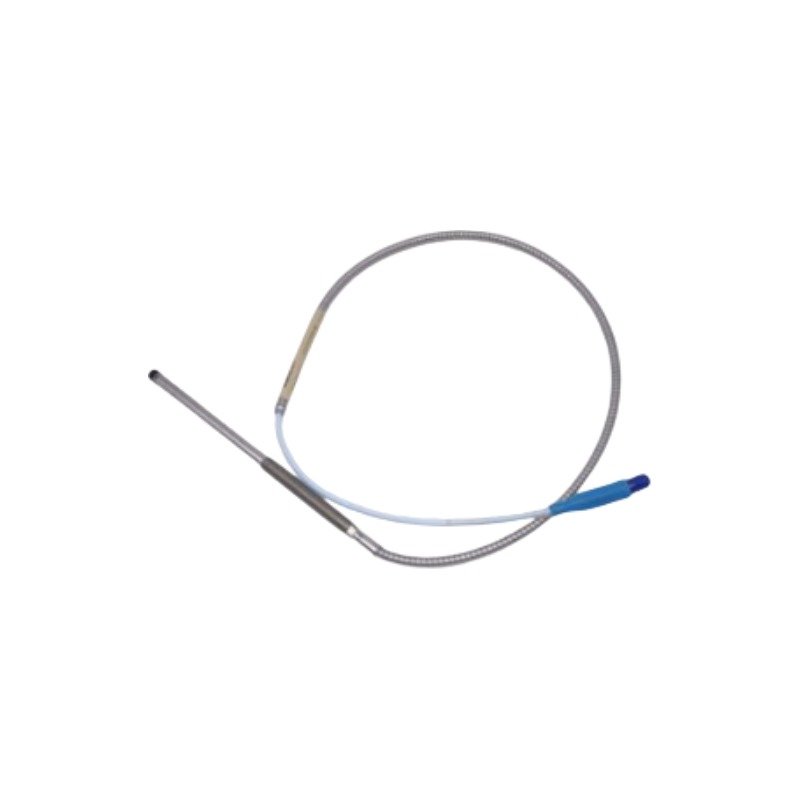

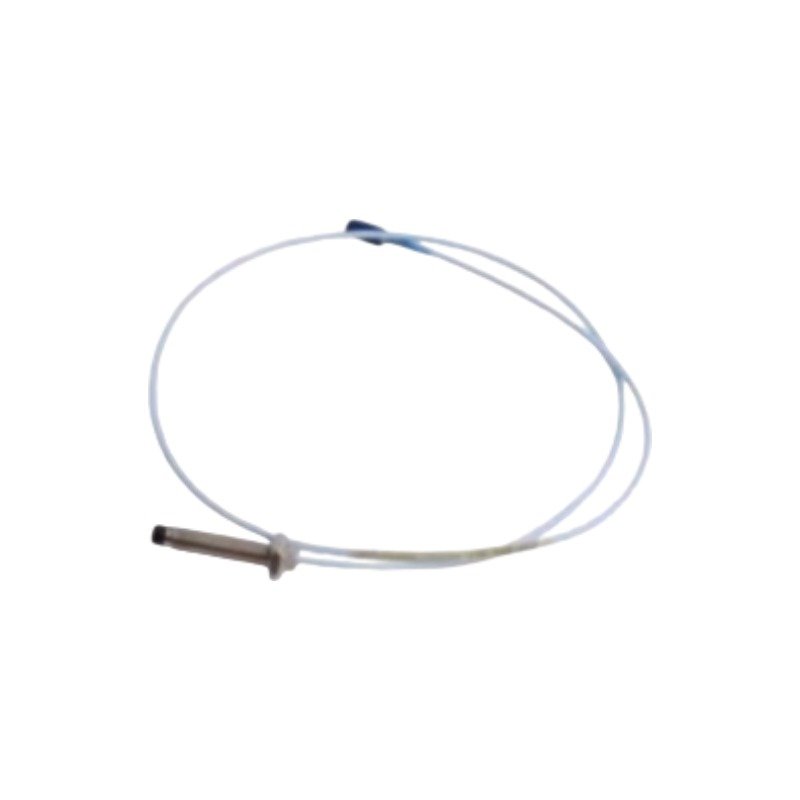

The Bently Nevada 330103-00-11-10-02-05, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for eddy-current signal generation and non-contact displacement measurement within 3300 XL 8 mm Proximity Transducer System platforms.

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous analog voltage directly proportional to the physical gap between the probe tip and the observed conductive target. Consequently, during commissioning, the field technician must perform gap voltage validation (-10 VDC targets) to verify that the transducer operates within the linear midpoint of the calibration curve. Meanwhile, the high-frequency demodulation circuitry tracks high-velocity rotor dynamics, capturing precise metrics for radial vibration, axial thrust position, and phase reference indication. Furthermore, internal cross-talk suppression features actively prevent signal degradation from electromagnetic coupling when technicians install multiple probes in close proximity on the same machine bearing housing.

Frequently Asked Questions

Q: Can technicians hot-swap the Bently Nevada 330103-00-11-10-02-05 probe while the machinery protection system runs online?

A: No. Operators must isolate and de-energize the associated Proximitor Sensor loop prior to disconnecting or connecting the probe coaxial joint, because this precaution prevents voltage transients and inadvertent trip signals in the monitoring rack.

Q: How does the metric M10 x 1 casing configuration modify mechanical installation limits?

A: This exact model utilizes a fully threaded metric casing with 110 mm overall length and 0.0 mm unthreaded length. Consequently, field technicians must tap matching M10 x 1 internal threads into the bracketry or deploy standard locknuts to anchor the hardware firmly.

Field Installation Guidelines

• Thread the probe body into the metric mounting bracket or machine casing, taking care not to exceed the recommended installation torque of 11 N m.
• Next, adjust the physical position of the probe until the multi-meter records a gap voltage reading of -10 VDC, which indicates the center of the linear calibration range.
• Connect the miniature coaxial ClickLoc connector to the extension cable or Proximitor interface, applying finger-tight torque until the internal mechanism clicks.
• Subsequently, route the integrated 1.0-metre cable through flexible metal conduit, keeping the line separate from high-voltage AC cables to minimize electromagnetic interference.
• Finally, lock the factory-installed connector protector over the coaxial junction to isolate the circuit from the surrounding metallic machinery framework.
