Description

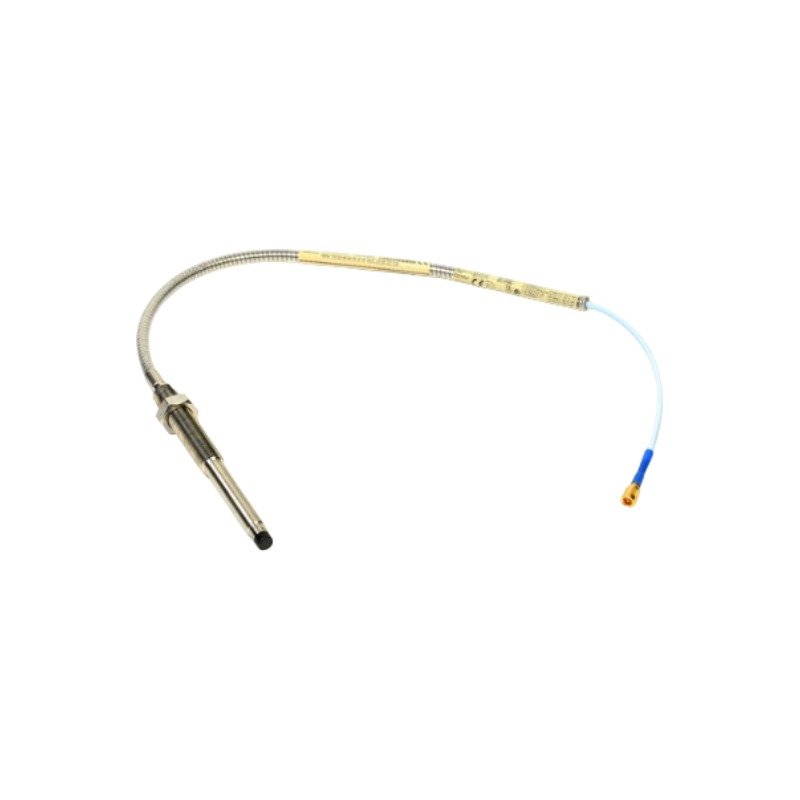

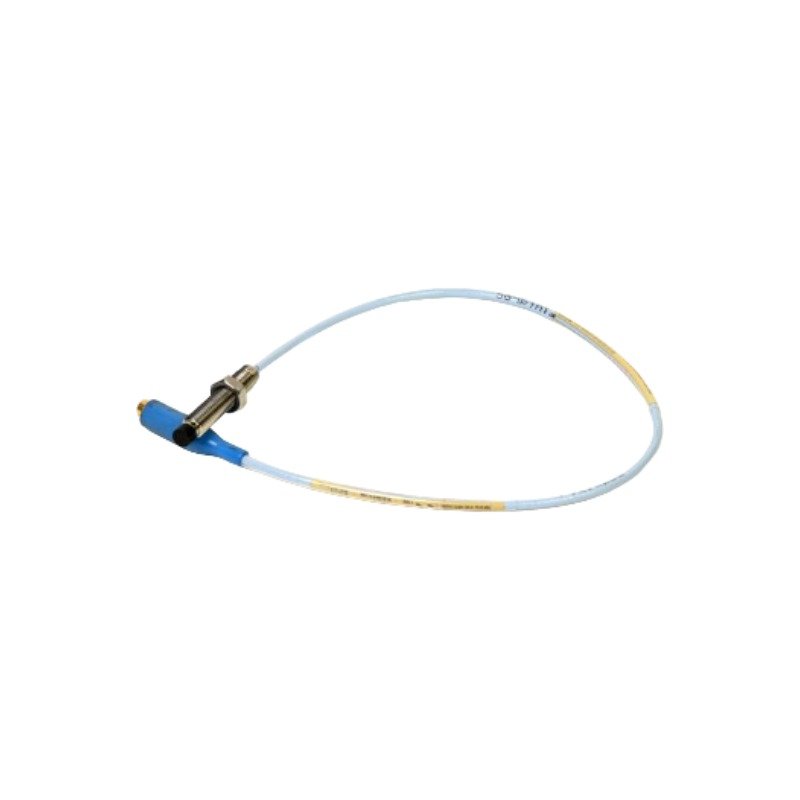

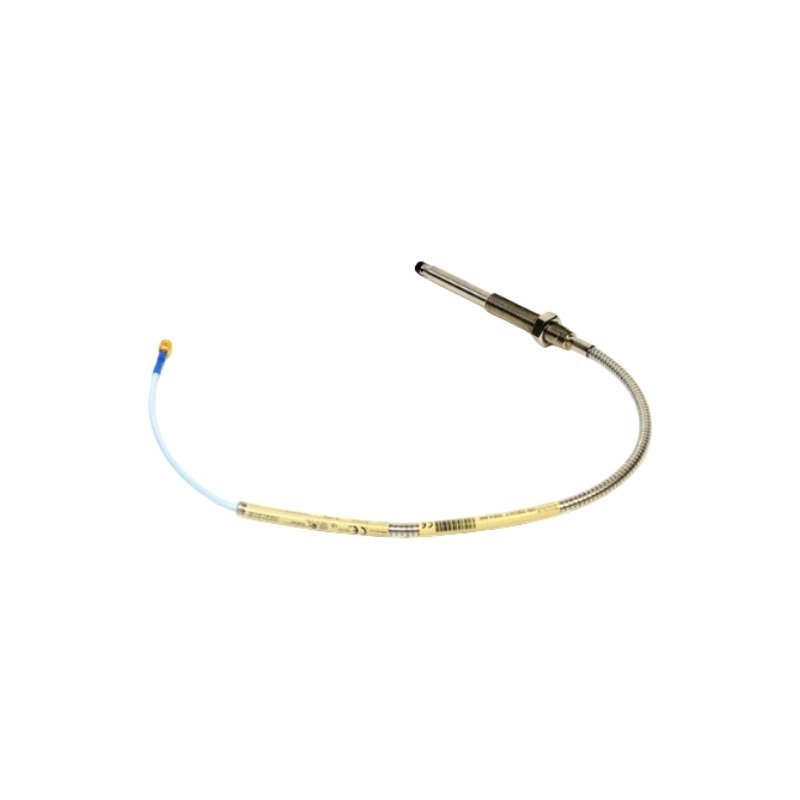

The Bently Nevada 330102-00-40-10-01-05, also cataloged as the 330102 Proximity Probe, operates as a dedicated hardware component for eddy-current signal generation and non-contact displacement measurement within 3300 XL 8 mm Proximity Transducer System platforms.

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous analog voltage directly proportional to the physical gap between the probe tip and the observed conductive target. Consequently, during commissioning, the field technician must perform gap voltage validation (-10 VDC targets) to verify that the transducer operates within the linear midpoint of the calibration curve. Meanwhile, the high-frequency demodulation circuitry tracks high-velocity rotor dynamics, capturing precise metrics for radial vibration, axial thrust position, and phase reference indication. Furthermore, internal cross-talk suppression features actively prevent signal degradation from electromagnetic coupling when technicians install multiple probes in close proximity on the same machine bearing housing.

Frequently Asked Questions

Q: Can technicians hot-swap the Bently Nevada 330102-00-40-10-01-05 probe while the machinery protection system runs online?

A: No. Operators must isolate and de-energize the associated Proximitor Sensor loop prior to disconnecting or connecting the probe coaxial joint, because this precaution prevents voltage transients and inadvertent trip signals in the monitoring rack.

Q: How does the integrated stainless steel armor option modify physical routing constraints?

A: The stainless steel armor jacket shields the inner coaxial line against mechanical impact and abrasion. However, this structural reinforcement limits the minimum bend radius of the assembly to 25 mm, preventing sharp turns within cramped junction boxes.

Field Installation Guidelines

• Thread the probe body into the 3/8-24 UNF mounting bracket or machine casing, taking care not to exceed the maximum rated structural torque of 68 N m.
• Next, adjust the physical position of the probe until the multi-meter records a gap voltage reading of -10 VDC, which indicates the center of the linear calibration range.
• Connect the miniature coaxial ClickLoc connector to the extension cable or Proximitor interface, applying finger-tight torque until the internal mechanism clicks.
• Subsequently, route the integrated 1.0-metre armored cable through protective channels, maintaining the required physical clearance from high-voltage AC lines to prevent signal noise.
• Finally, lock the factory-installed connector protector over the coaxial junction to isolate the internal circuit from the surrounding metallic machinery framework.
