Description

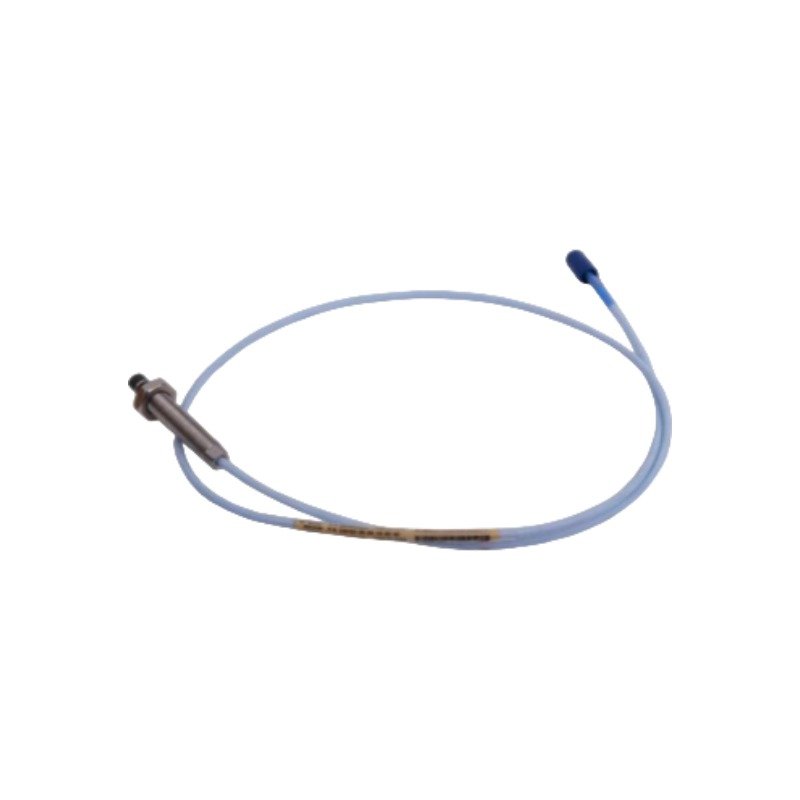

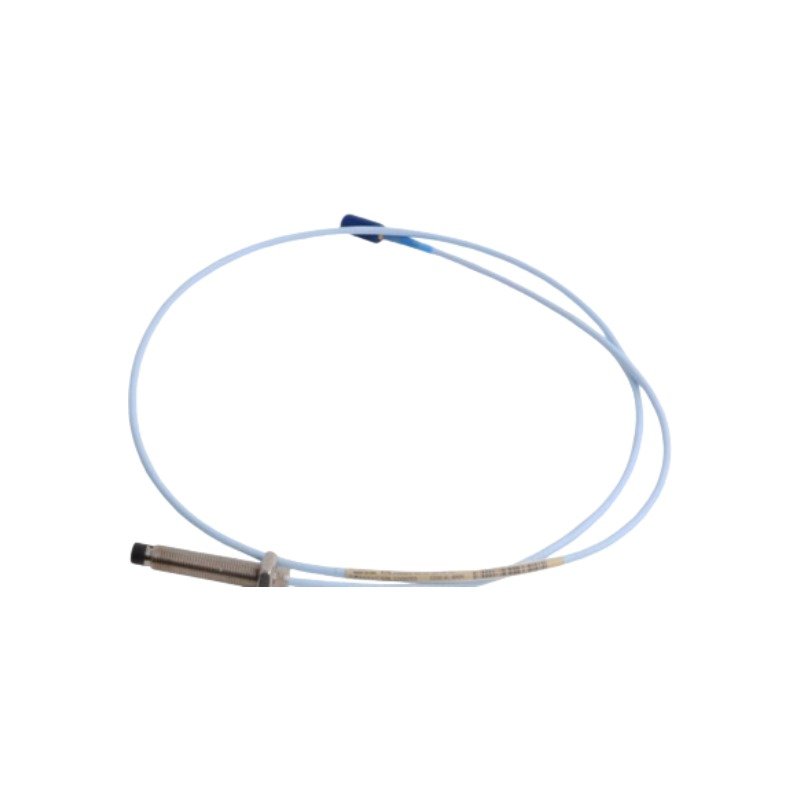

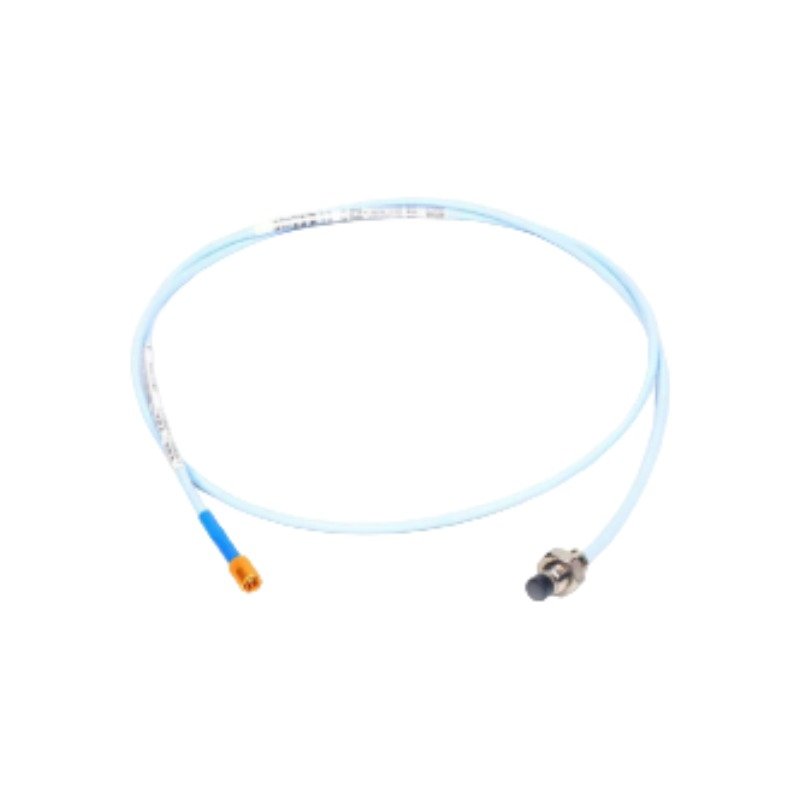

The Bently Nevada 330103-00-10-10-02-CN serves as the primary 330103 Proximity Probe utilized to execute non-contacting shaft displacement and dynamic vibration measurements across Turbine Supervisory Instrumentation (TSI) platforms.

Suffix Breakdown & Model Matrix

The alphanumeric suffix combination defines the specific mechanical and electrical configurations of the hardware assembly:

• 330103: Base model for 3300 XL 8 mm proximity probe with M10 x 1 thread, unarmored.
• 00: Unthreaded Length Option (00 = 0 mm).
• 10: Overall Case Length Option (10 = 100 mm).
• 10: Total Length Option (10 = 1.0 meter / 3.3 feet).
• 02: Connector and Cable-Type Option (02 = Miniature coaxial ClickLoc connector, standard cable).
• CN: Agency Approval Option (CN = ATEX, IECEx, and Chinese NEPSI hazardous area marking).

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

During operation, high-frequency RF fields generated by the Proximitor loop penetrate the target surface. Consequently, accurate calibration requires an exact eddy-current probe scaling profile that matches the metallurgy of the shaft. To establish a stable operating baseline for rotor dynamics tracking, field engineers must validate that the gap voltage achieves a target value of -10 VDC at the geometric center of the linear zone. Furthermore, tight winding geometries optimize cross-talk suppression, thereby preventing electromagnetic interference between adjacent multi-axis probes installed within the same bearing housing block.

Frequently Asked Questions

Q: What certification mandate does the -CN suffix fulfill?

A: The -CN suffix option certifies the proximity probe for deployment within hazardous environments requiring country-specific localized approvals, combining global ATEX/IECEx standards with regional Chinese NEPSI explosive atmosphere compliance.

Q: What extension cable option completes the loop for this 1.0 meter probe?

A: This specific 1.0 meter probe relies on a matching 3300 XL extension cable to complete the loop. For instance, connecting it to a standard 5.0 meter Proximitor sensor requires a 4.0 meter extension cable, while a 9.0 meter Proximitor sensor requires an 8.0 meter extension cable.

Field Installation Guidelines

• Mechanical Clearance: Maintain a minimum counterbore clearance of 2 or more probe tip diameters (16 mm minimum) to avoid side-loading errors from surrounding metal structures.
• Torque Limits: When installing the M10 x 1 threaded case into the mounting bracket, do not exceed the maximum allowable tightening torque of 22.6 N m.
• Connector Integrity: Ensure the miniature coaxial ClickLoc connector faces remain completely free of moisture and particulate matter. Subsequently, twist the collar until a mechanical click occurs to confirm lock engagement.
• Shielding Protocols: Leave the coaxial cable shield floating at the probe end. Instead, execute terminal grounding solely at the instrument rack or the Proximitor isolation housing ground terminal block to eliminate ground loops.
