Description

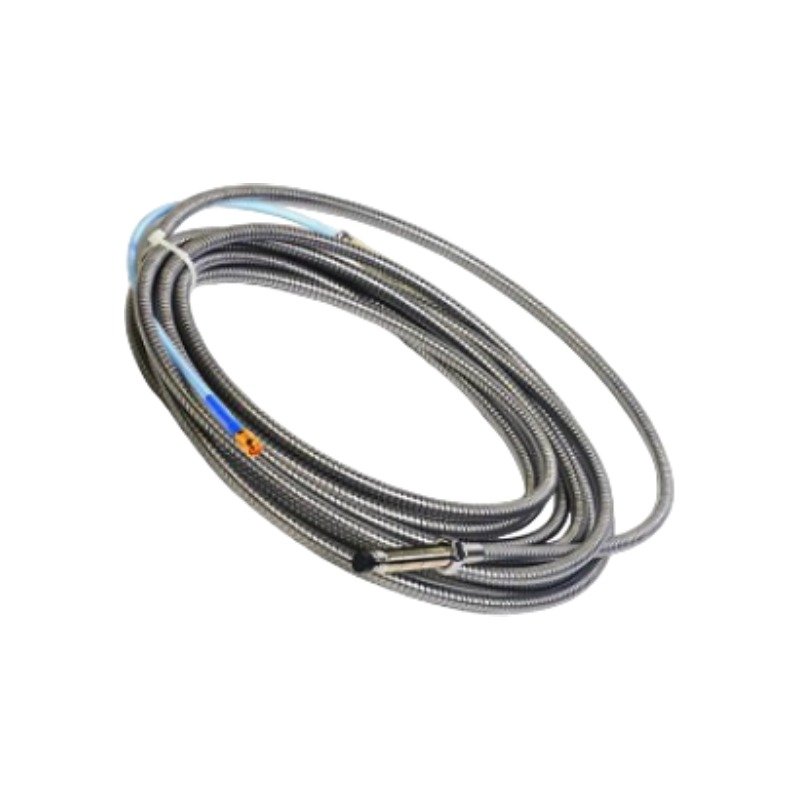

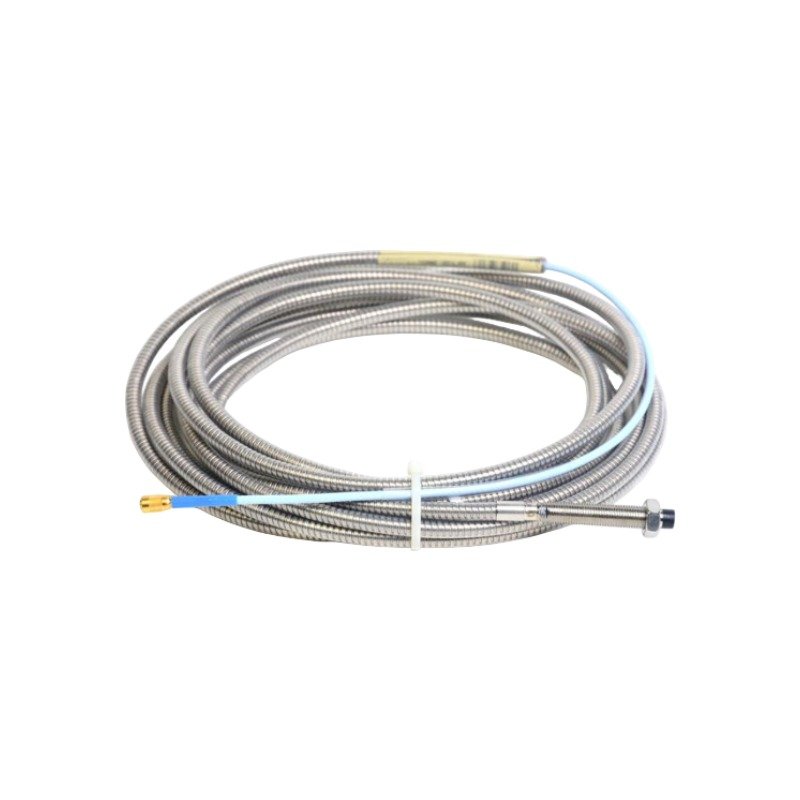

The Bently Nevada 330102-00-20-10-02-00, also cataloged as the 330102 8 mm Proximity Probe, operates as a dedicated hardware component for contactless displacement and vibration measurements within 3300 XL Proximity Transducer System platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 8 mm proximity probe utilizes eddy-current technology to execute high-precision distance scaling relative to a target fluid-film bearing journal surface. During operation, the 3300 XL Proximitor Sensor drives an RF signal through the extension cable to the probe tip, generating a high-frequency magnetic field. As the shaft undergoes rotor dynamics perturbations, changes in the gap change the eddy-current density on the target material surface. This translates to an output voltage modulation directly proportional to the physical gap clearance. Proper gap voltage validation requires biasing the probe to target a baseline of -10 VDC at the physical midpoint of the linear range. Strict impedance matching across the total length system suppresses cross-talk interference between adjacent channels monitoring the same rotor plane.

Frequently Asked Questions

Q: What are the restrictions regarding physical cross-talk suppression between adjacent 8 mm probes?

A: When mounting multiple 330102 probes in the same bearing housing, a minimum physical separation distance of 40 mm must be maintained between probe tips to prevent magnetic field overlapping, which degrades eddy-current scaling accuracy.

Q: How is gap voltage validation performed during mechanical installation?

A: Connect a digital multimeter to the Proximitor Sensor output terminals. Rotate the probe clockwise into the mounting thread until the tip contacts the target shaft, then back off the probe until the voltage reads exactly -10 VDC, corresponding to the linear range center.

Field Installation Guidelines

• Thread Engagement: Ensure a minimum thread engagement of 5 full turns within the mounting bracket or housing to prevent mechanical looseness under high-frequency structural vibration.
• Shield Grounding: Terminate the external coaxial extension cable outer shield only at the Proximitor Sensor housing. Do not allow the probe case or coaxial connector bodies to touch intermediate conduit boxes or structural steel to prevent ground loops.
• Bend Radius Limits: Maintain a minimum physical bend radius of 25.4 mm for the coaxial cable lead during routing to eliminate internal conductor degradation and signal impedance shifts.
