Description

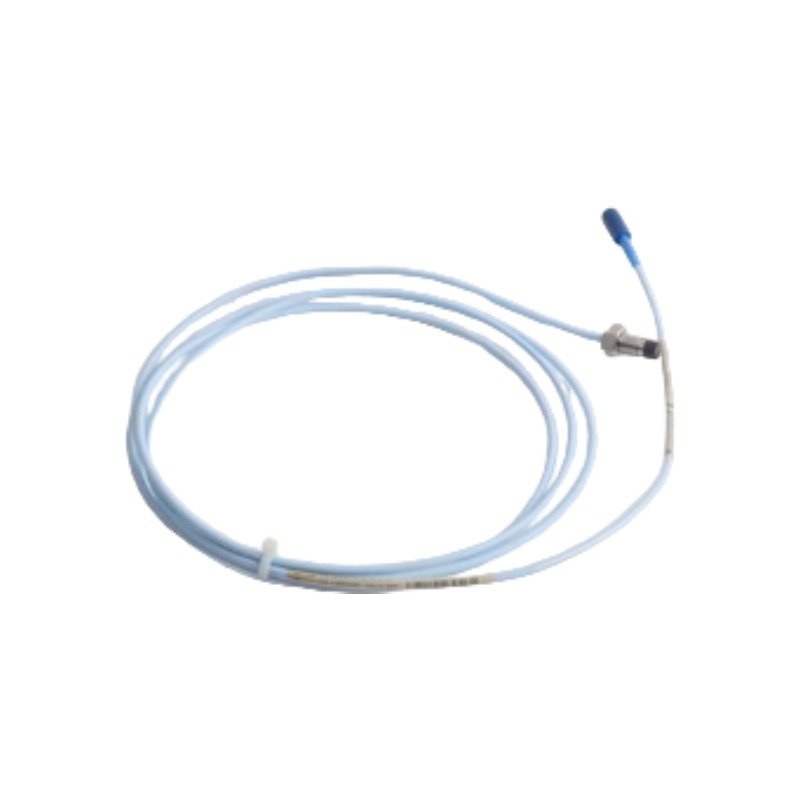

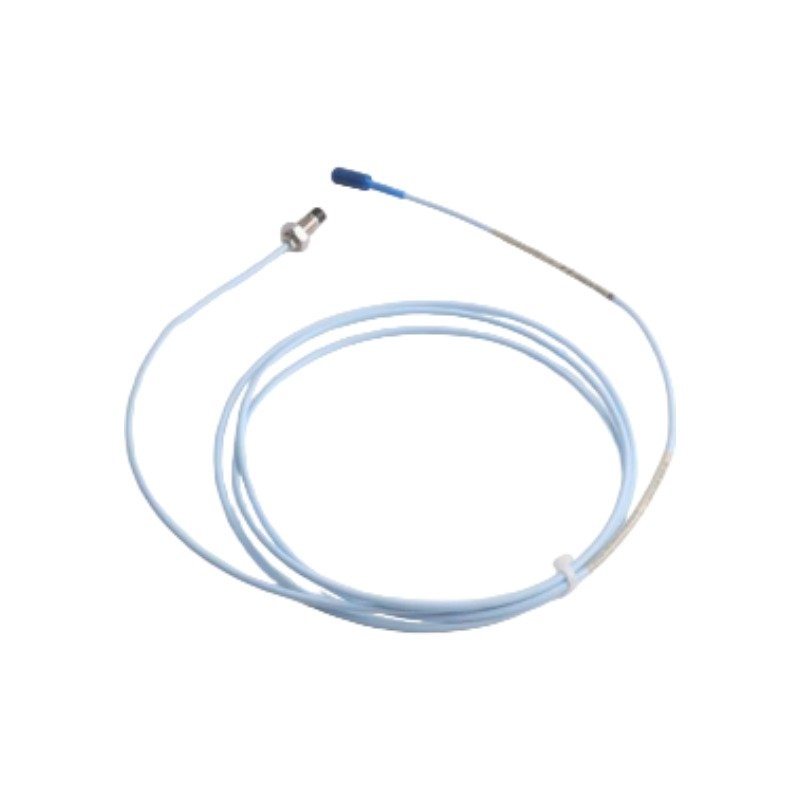

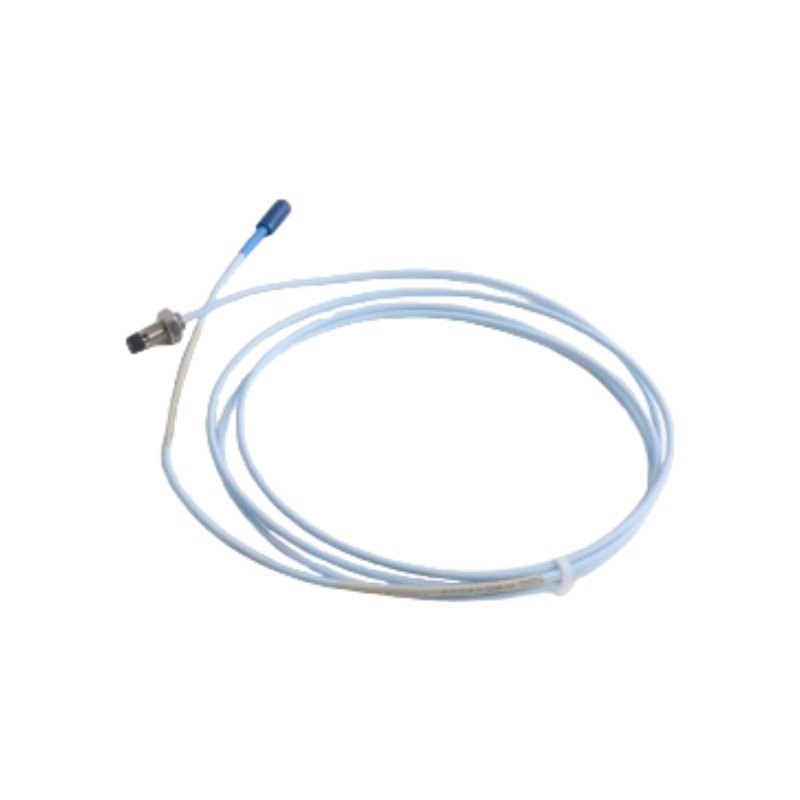

The Bently Nevada 330101-00-08-10-02-00, also cataloged as the Bently Nevada 330101 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for non-contacting vibration, gap, and position measurements within rotating machinery monitoring systems. Consequently, the assembly maintains the precise tracking of fluid-film bearing performance relative to the target shaft. Furthermore, this sensor configuration actively translates physical mechanical displacement into proportional electrical voltage variations. Meanwhile, it interfaces directly with extension cables and Proximitor modules to preserve raw dynamic signal transmission across the system backplane.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

To ensure proper calibration, technicians must strictly adhere to eddy-current probe scaling and gap voltage verification rules during system setup. Therefore, during the initial alignment phase, the field engineer mechanically positions the Bently Nevada 330101 probe tip relative to the shaft surface until the output reads a nominal gap voltage target of -10 VDC. This specific value correlates to the definitive midpoint of the 2.0 mm (80 mils) linear range for standard 200 mV/mil (7.87 V/mm) transducer loops. Additionally, proper mechanical locking prevents structural drift, eliminating signal attenuation and cross-talk suppression issues between adjacent sensors. Conversely, incorrect initial gapping shifts the quiescent operating point completely out of the linear region, which ultimately corrupts the accuracy of critical rotor dynamics information transferred to the 3500 series monitoring platform.

Frequently Asked Questions

Q: How does the installation technician actively validate the physical gap voltage of the 330101 probe?

A: First, the technician connects a digital multimeter to the corresponding Proximitor sensor output or the monitor panel BNC jack. Next, the operator carefully adjusts the probe depth inside the mechanical casing until the multimeter registers a steady target value of -10 VDC, which confirms that the probe is at the center of its linear range.

Q: Can the 330101-00-08-10-02-00 probe operate reliably without an external extension cable?

A: No, this specific model features a 1.0-meter integrated cable option. Therefore, it requires a matching extension cable to reach the total nominal system length of 5.0 meters or 9.0 meters specified by the Proximitor sensor tuning.

Field Installation Guidelines

• Secure the thread assembly by using precise mechanical locking nuts, thereby maintaining steady physical stand-off distance under extreme high-amplitude vibration.
• Verify electrical isolation by checking that the coaxial outer shielding completely insulates from the conduit and machine housing walls, preventing unwanted ground loops.
• Avoid tight bends by maintaining a minimum bend radius of 25.4 mm (1.0 inch) on the integrated probe cable to prevent physical deformation of the internal dielectric layer.
• Ensure finger-tight torque when connecting the ClickLoc miniature coaxial interface; an audible click confirms positive mechanical engagement without requiring specialty installation tooling.
