Description

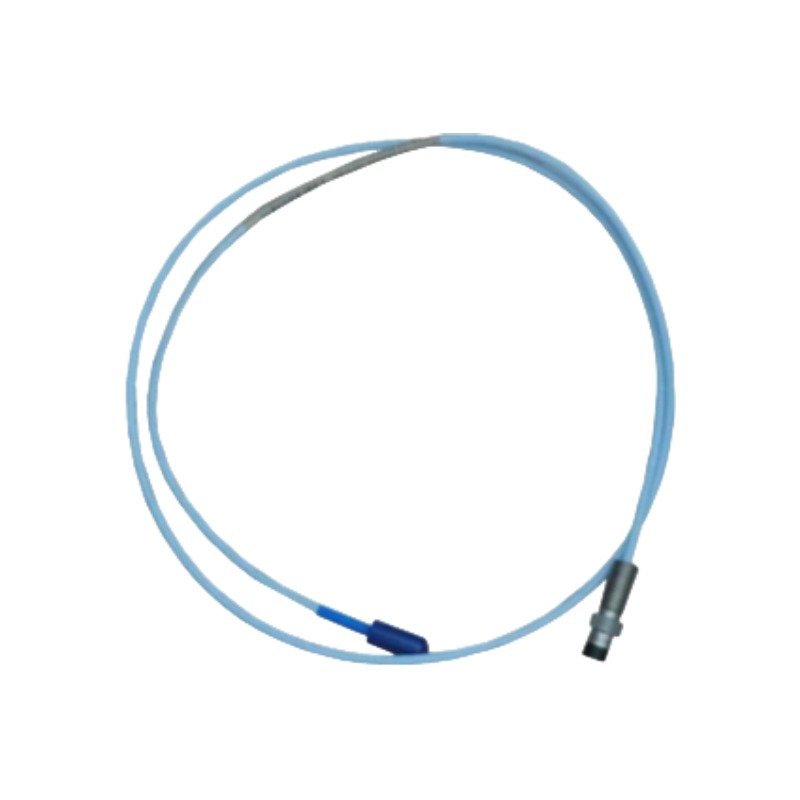

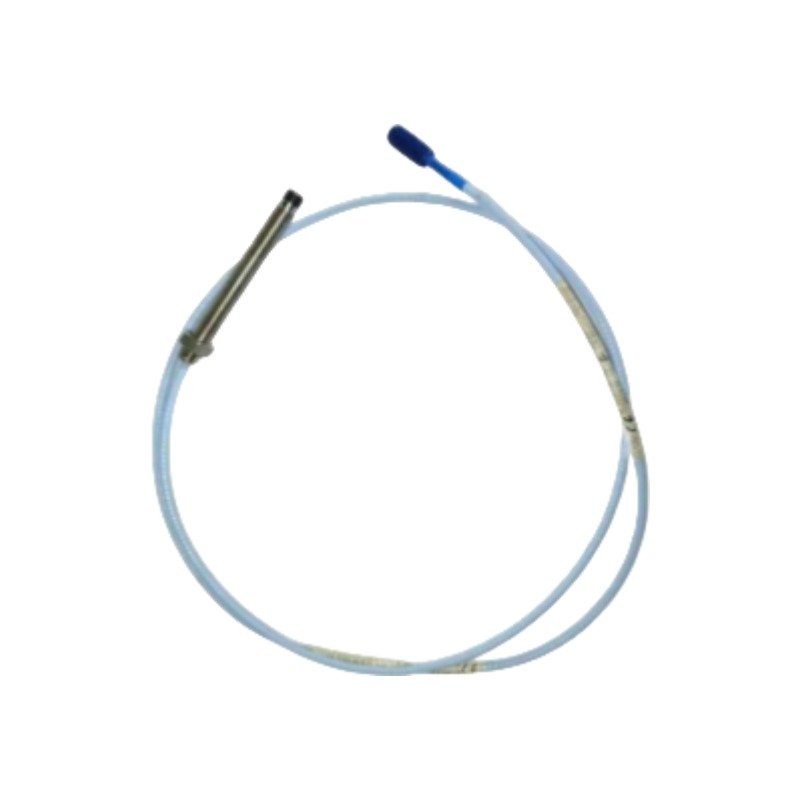

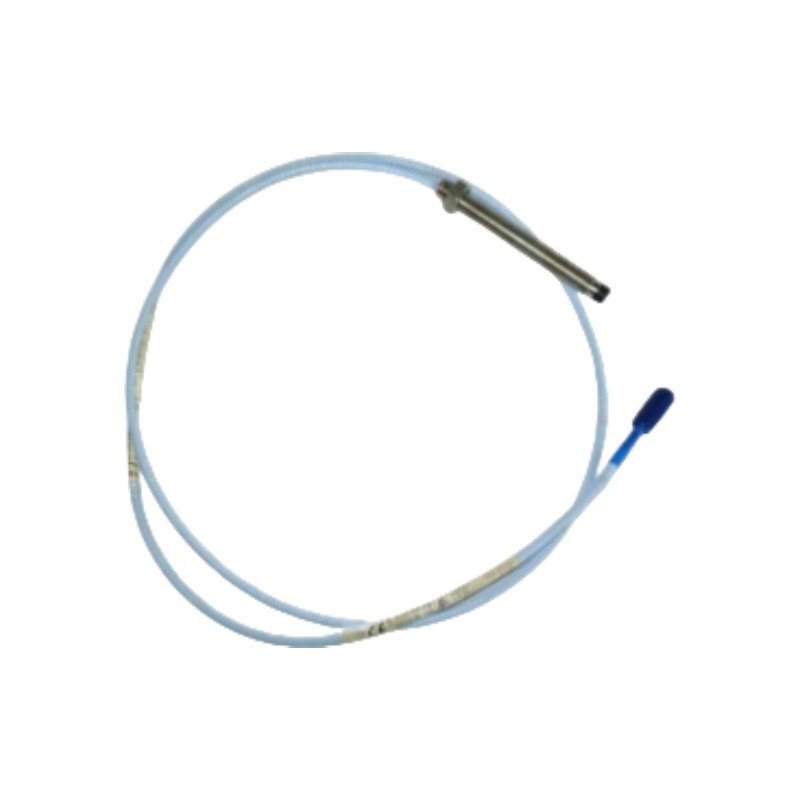

Configured for eddy-current proximity measurement in Bently Nevada 3500 and 3300 Machinery Protection Systems, the Bently Nevada 330101-00-32-10-02-05 (330101 Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• 330101: 3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor.
• -00: Unthreaded length option (0.0 in).
• -32: Overall case length option (3.2 in).
• -10: Total length option (1.0 m / 3.3 ft).
• -02: Miniature coaxial ClickLoc connector, standard cable.
• -05: Multiple Approvals (ATEX/IECEx/CSA/FM/NEPSI).

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The system configuration demands meticulous eddy-current probe scaling to convert physical gap displacements into corresponding electrical voltage potentials. During static calibration, gap voltage validation targets a nominal -10 VDC center-scale position within the linear sensing range, mapping directly to a standard 2.0 mm operational envelope. In rotor dynamics monitoring applications, this precise electrical output provides real-time cross-talk suppression and isolates actual fluid-film dynamic motion from mechanical runout or electrical anomalies. Maintaining accurate voltage-to-distance relationships prevents system degradation and preserves overall structural loop stability.

Frequently Asked Questions

Q: How does the 3.2-inch overall case length affect the mechanical installation depth? A: The 3.2-inch case length establishes the physical envelope available for bracket mounting or threading into a machine casing. Because this specific configuration has an unthreaded length option of 0.0 inches, the entire 3.2-inch cylinder is fully threaded to facilitate fine axial positioning.

Q: What actions prevent cross-talk suppression breakdown when multiple probes are installed nearby? A: Maintaining the standard minimum axial spacing between probe tips is required. If probes are positioned too closely, their electromagnetic fields overlap, which introduces signal modulation and degrades the calibrated scale factor.

Field Installation Guidelines

• Maintain mechanical gap tracking using a calibrated digital voltmeter to verify the target -10 VDC bias voltage during physical installation.
• Route coaxial sensor cables through dedicated conduit pathways to ensure optimal signal integrity and prevent cross-talk suppression anomalies.
• Observe structural clearance limits; ensure a minimum diameter of 30 mm around the probe tip is free from any adjacent conductive materials to prevent side-loading interference.
• Torque the 3/8-24 UNF locking nut to a maximum value of 25 N-m to prevent casing distortion or internal element rupture.
• Inspect the ClickLoc connectors prior to final coupling, and ensure internal connection points remain dry, free of synthetic lubricants, and physically uncontaminated.
