Description

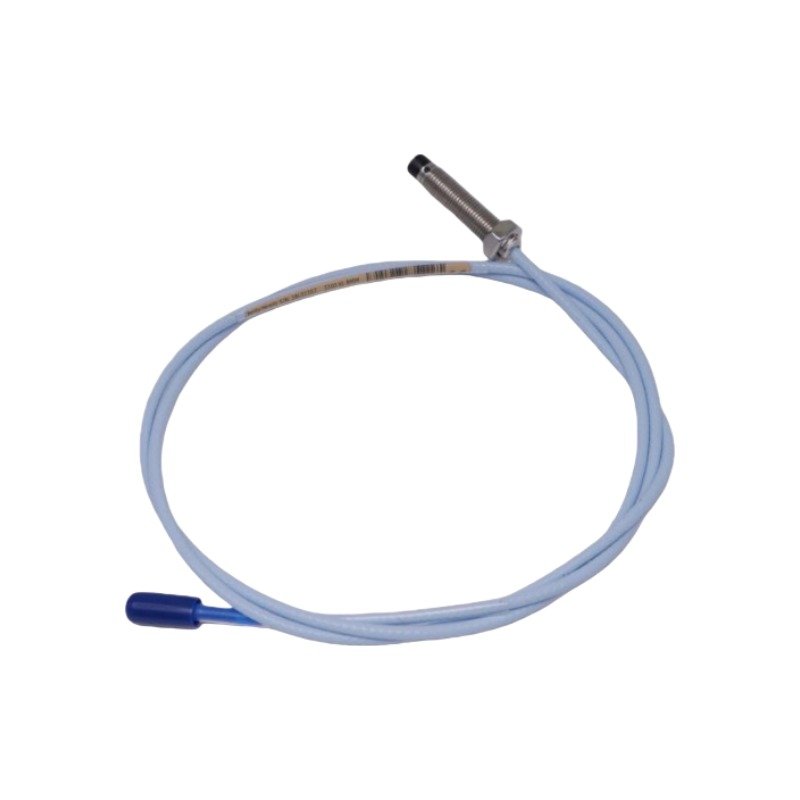

The Bently Nevada 330101-00-28-20-02-05, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for eddy-current proximity measurement within Bently Nevada 3500 and 3300 Machinery Protection Systems platforms.

Suffix Breakdown & Model Matrix

• 330101: 3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor.
• -00: Unthreaded length option (0.0 in).
• -28: Overall case length option (2.8 in).
• -20: Total length option (2.0 m / 6.6 ft).
• -02: Miniature coaxial ClickLoc connector, standard cable.
• -05: Multiple Approvals (ATEX/IECEx/CSA/FM/NEPSI).

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Calibration

The system configuration demands meticulous eddy-current probe scaling to convert physical gap displacements into corresponding electrical voltage potentials. During static calibration, gap voltage validation targets a nominal -10 VDC center-scale position within the linear sensing range, mapping directly to a standard 2.0 mm operational envelope. In rotor dynamics monitoring applications, this precise electrical output provides real-time cross-talk suppression and isolates actual fluid-film dynamic motion from mechanical runout or electrical anomalies. Maintaining accurate voltage-to-distance relationships prevents system degradation and preserves overall structural loop stability.

Frequently Asked Questions

Q: What is the primary cause of an unexpected shift in the nominal gap voltage (-10 VDC target)?

A: Shifts are generally caused by incorrect physical positioning, changes in target material composition relative to the AISI 4140 factory calibration standard, or a loose ClickLoc coaxial connector interface.

Q: Can this 2.0-meter probe be directly connected to a Proximitor sensor without an extension cable?

A: No. The system requires a total electrical length matching the Proximitor sensor calibration (typically 5.0 m or 9.0 m). Connecting a 2.0 m probe directly without the designated extension cable will alter the system capacitance, corrupting the eddy-current probe scaling.

Field Installation Guidelines

• Maintain mechanical gap tracking using a calibrated digital voltmeter to verify the target -10 VDC bias voltage during physical installation.
• Route coaxial sensor cables through dedicated conduit pathways to ensure optimal signal integrity and prevent cross-talk suppression anomalies.
• Observe structural clearance limits; ensure a minimum diameter of 30 mm around the probe tip is free from any adjacent conductive materials to prevent side-loading interference.
• Torque the 3/8-24 UNF locking nut to a maximum value of 25 N-m to prevent casing distortion or internal element rupture.
• Inspect the ClickLoc connectors prior to final coupling, and ensure internal connection points remain dry, free of synthetic lubricants, and physically uncontaminated.
