Description

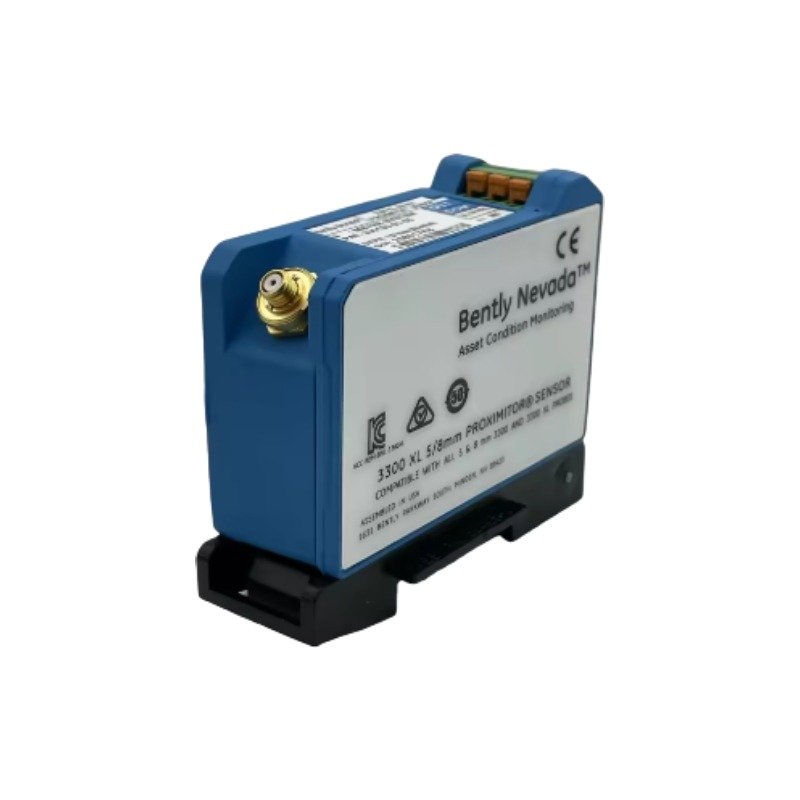

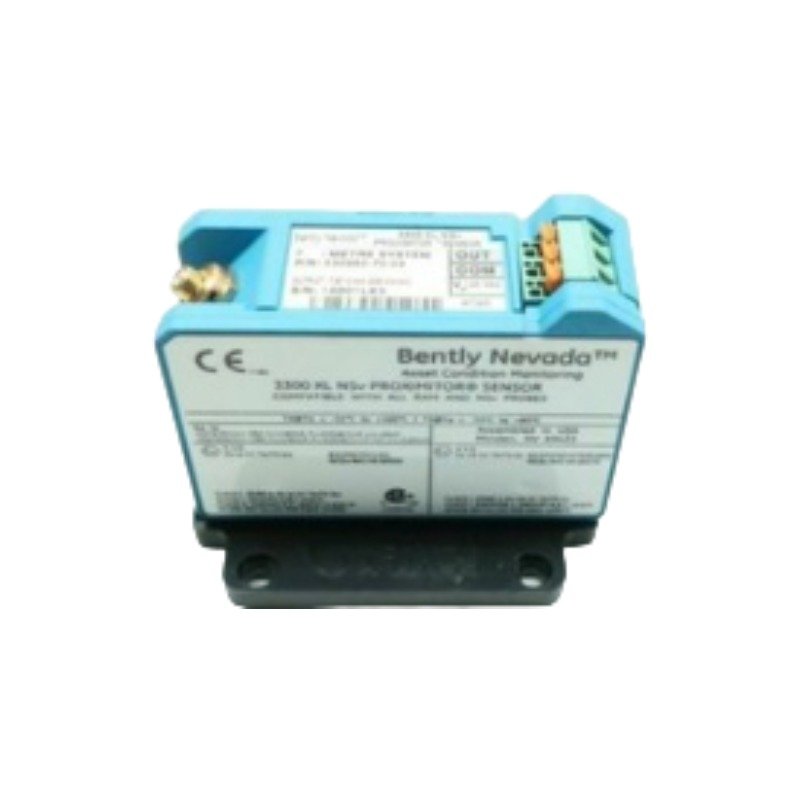

The Bently Nevada 330100-90-01, also cataloged as the 330100 Proximitor Sensor, operates as a dedicated hardware component for non-contacting vibration and position measurements within machine monitoring networks. Specifically, the sensor conditions high-frequency radio frequency (RF) signals from an eddy-current probe system and subsequently converts the physical gap variations into a linear voltage output directly proportional to the distance. Consequently, this design executes the direct transmission of raw dynamic metrics to machinery protection monitors and diagnostic instrumentation without requiring manual field calibration.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 330100-90-01 utilizes precise eddy-current probe scaling to convert target surface displacement into modulated voltage potentials for evaluating complex rotor dynamics. During commissioning, technicians perform gap voltage validation (-10 VDC targets) within the 2.0 mm (80 mils) linear range, thereby verifying optimal positioning relative to the observed shaft or fluid-film bearing surface. Furthermore, the internal electronic design implements active cross-talk suppression matrices; as a result, the hardware minimizes adjacent signal interference when technicians run multiple probe leads through parallel conduits.

Frequently Asked Questions

Q: What specific hardware variables do the “-90” and “-01” option codes define?

A: The “-90” option code designates a 9.0 meters total system length compatibility (probe plus extension cable), while the “-01” suffix specifies CSA/ATEX/IECEx hazardous area approvals for safe deployment in classified industrial zones.

Q: How does a supply voltage more positive than -23.5 VDC affect sensor performance?

A: Operating the hardware at a terminal voltage more positive than -23.5 VDC restricts the upper boundary of the linear range. Consequently, the sensor may experience premature output clipping during high-amplitude dynamic vibration events.

Field Installation Guidelines

• Shielding and Grounding: First, secure the triaxial extension cable using the integrated, gold-plated ClickLoc connectors to achieve an optimal electrical junction. Afterward, verify that the integral isolation plate effectively insulates the aluminum sensor base from structural frame potentials, grounding the outer cable shields solely at the monitor rack terminal block.
• Conduit Separation: Always route the 75 ohm triaxial sensor cables and power output wiring inside dedicated, grounded metal conduits. In addition, avoid running signal conductors parallel to heavy AC power feeds or variable frequency drive (VFD) lines to maintain system fidelity.
• Mechanical Mounting: Install the hardware assembly securely onto a 35 mm DIN rail or attach it directly to an internal instrument panel. For severe installations containing corrosive atmospheric agents or heavy moisture, mount the entire device assembly inside a sealed junction box rated IP54 or higher.
