Description

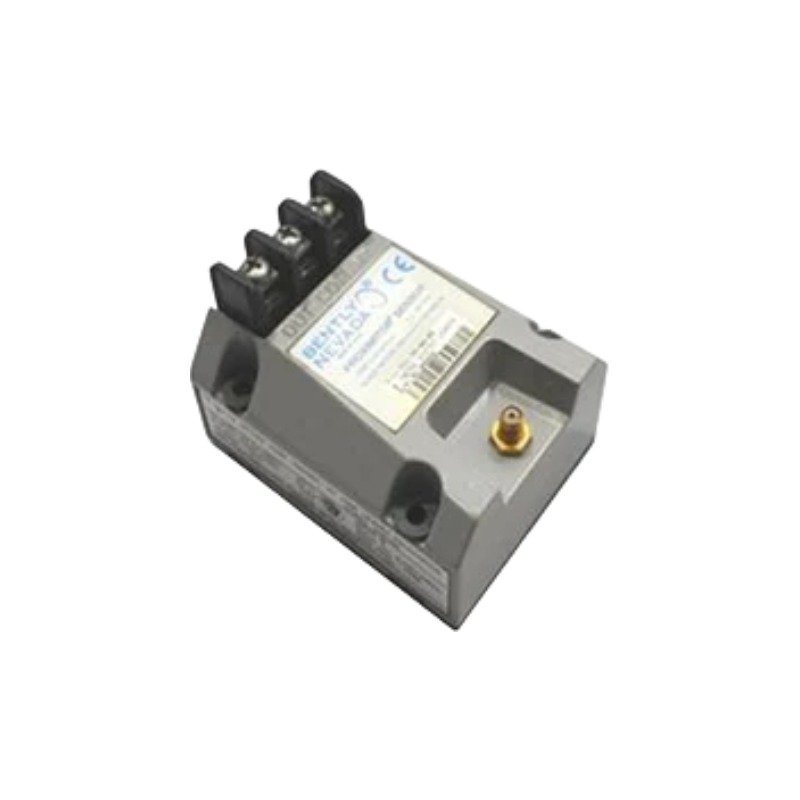

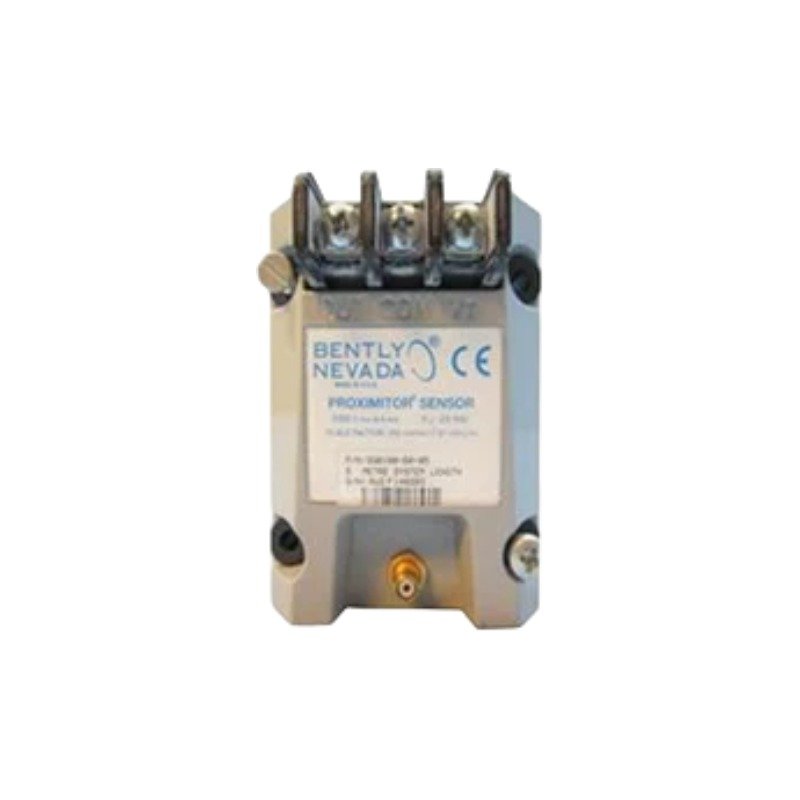

The Bently Nevada 330100-50-03, also cataloged as the 330100 Proximitor Sensor, operates as a dedicated hardware component for eddy-current signal conditioning and non-contact displacement measurement within 3300 Proximity Transducer System platforms.

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous analog voltage directly proportional to the physical gap between the probe tip and the observed conductive target. Consequently, during commissioning, the field technician must perform gap voltage validation (-10 VDC targets) to verify that the transducer operates within the linear midpoint of the calibration curve. Meanwhile, the high-frequency demodulation circuitry tracks high-velocity rotor dynamics, capturing precise metrics for radial vibration, axial thrust position, and phase reference indication. Furthermore, internal cross-talk suppression features actively prevent signal degradation from electromagnetic coupling when technicians install multiple probes in close proximity on the same machine bearing housing.

Frequently Asked Questions

Q: Can technicians hot-swap the Bently Nevada 330100-50-03 sensor while the machinery protection system runs online?

A: No. Operators must isolate and de-energize the DC power supply loop prior to disconnecting or connecting the sensor, because this precaution prevents voltage spikes and inadvertent trip signals in the connected monitoring rack.

Q: What physical constraints govern the field wiring distance for this hardware?

A: To maintain signal integrity without attenuation, technicians must limit the length of the three-conductor shielded triad cable between the Bently Nevada 330100-50-03 and the terminal panel to a maximum of 305 metres (1000 feet).

Field Installation Guidelines

• Mount the sensor housing directly onto a flat, clean, grounded surface using the integrated 4-hole aluminum base plate.
• Next, tighten all coaxial connections between the probe, extension cable, and the Bently Nevada 330100-50-03 to a maximum connector torque of 0.565 N m.
• Install physical insulation sleeves or connector protectors over all coaxial junctions to prevent grounding errors caused by accidental contact with the machine framework.
• Subsequently, route the field wiring through dedicated, grounded metal conduits, keeping the signal lines isolated from high-voltage AC power distribution tracks to minimize ambient noise.
• Finally, terminate the overall cable shield at a single point inside the monitoring panel terminal block, leaving the field end ungrounded to prevent ground loop currents.
