Description

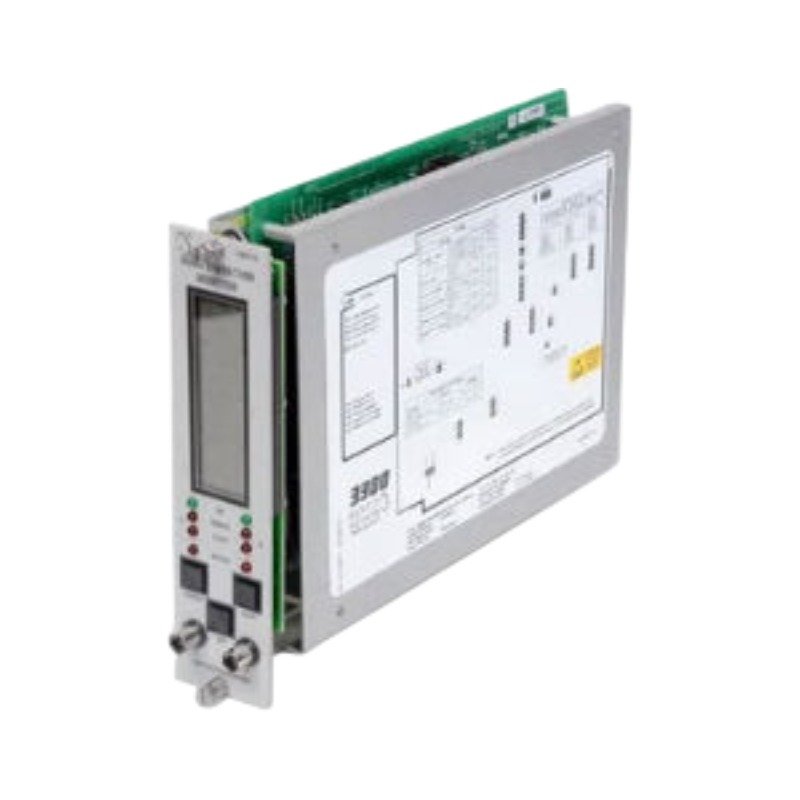

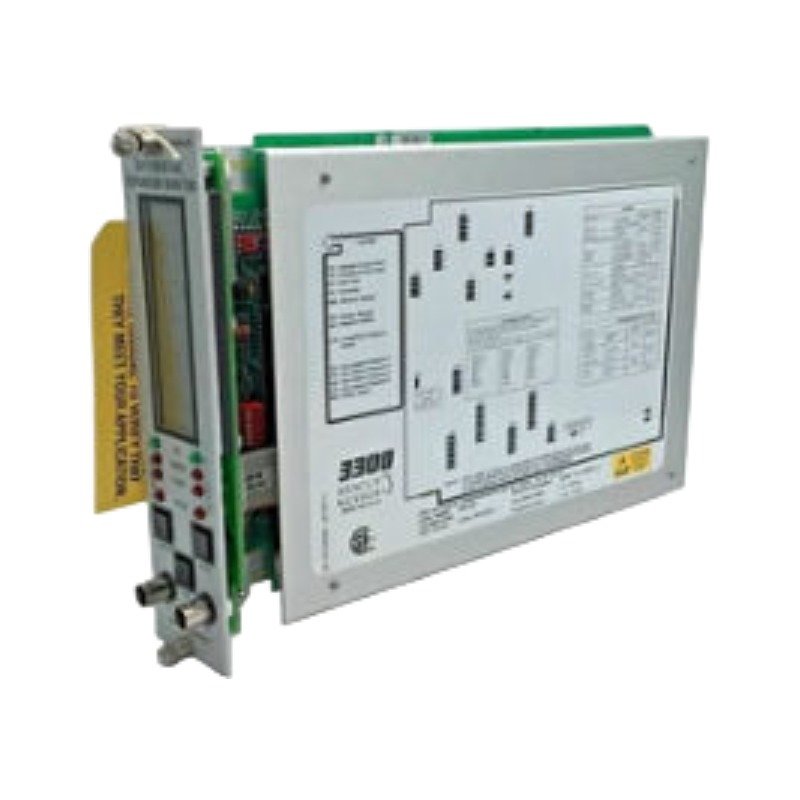

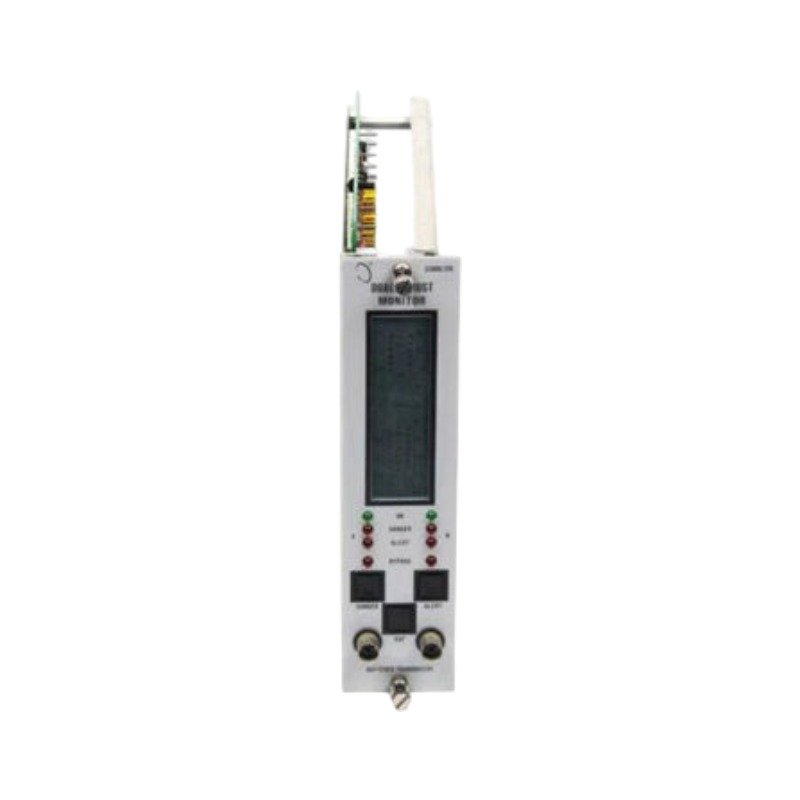

The Bently Nevada 3300/48-01-01-01-00, also cataloged as the 3300/48 Case Expansion Monitor, operates as a dedicated hardware component for continuous dual-channel absolute structural thermal growth tracking within 3300 Monitoring System platforms.

Suffix Breakdown & Model Matrix

• 01: Full-scale range configuration option (Standard millimeter or mil span selection)
• 01: Transducer input selection option (Linear Variable Differential Transformer – LVDT compatibility)
• 01: Alarm relay hardware configuration option (Epoxy-sealed Alert/Danger relays)
• 00: Factory standard agency approval option

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal processor executes strict eddy-current probe scaling or stroke-to-voltage translation parameters based on the paired physical sensor characteristics. During continuous operations, the module conducts ongoing gap voltage validation (-10 VDC targets) or null-point balance tracking to verify that the core of each attached sensor remains within its calibrated linear operating spectrum. Consequently, this tracking eliminates diagnostic errors generated by structural shifting or uneven mechanical sliding. To prevent signal distortion across high-density panel layouts, integrated cross-talk suppression filters isolate adjacent input lines, which preserves data accuracy needed for evaluating rotor dynamics relative to casing changes.

Frequently Asked Questions

Q: How does case expansion tracking differ mechanically from differential expansion tracking?

A: Case expansion measures the absolute physical growth of the outer machine casing relative to the structural foundation via LVDTs, whereas differential expansion measures the relative clearance between the moving rotor face and the stationary casing via proximity probes.

Q: What happens to the system output if the attached LVDT sensor loses connection?

A: An integrated Not OK diagnostic circuit continuously samples the input excitation loop. If an open circuit or cable breakage occurs, the monitor turns off the front-panel OK LED, clamps the recorder loop, and locks out the associated Danger relays within 15 milliseconds to stop unintended machine shutdowns.

Field Installation Guidelines

• Disconnect all primary rack backplane power sources prior to inserting or extracting the monitor card assembly to eliminate voltage transients.
• Run all LVDT excitation and signal wiring through separate grounded metal conduits away from high-current AC lines to prevent magnetic noise pick-up.
• Terminate all shield drain wires directly at the designated backplane chassis ground strip, maintaining a single-point grounding layout to eliminate ground loop current induction.
