Description

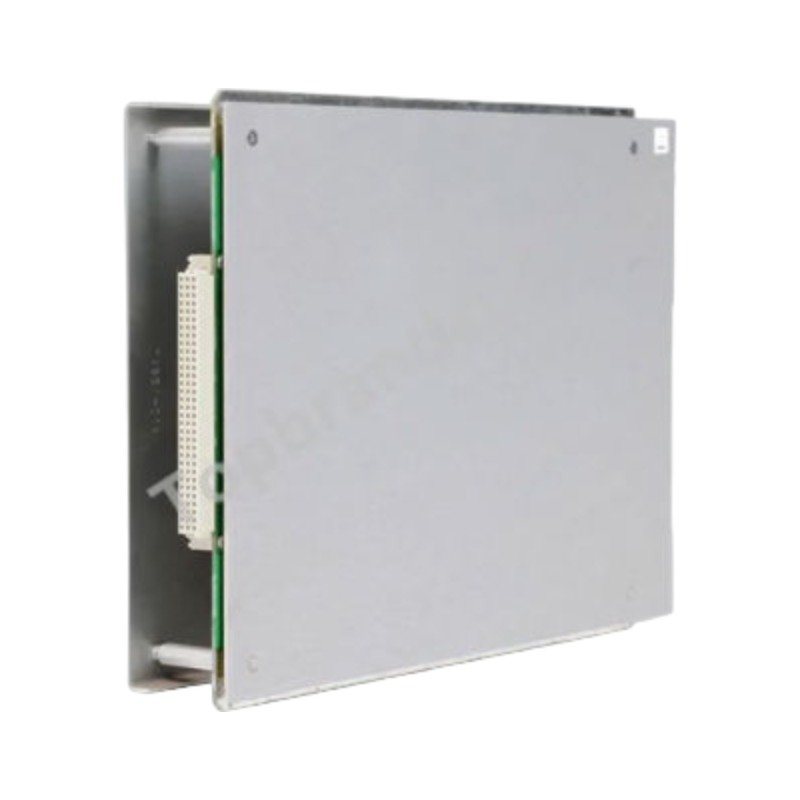

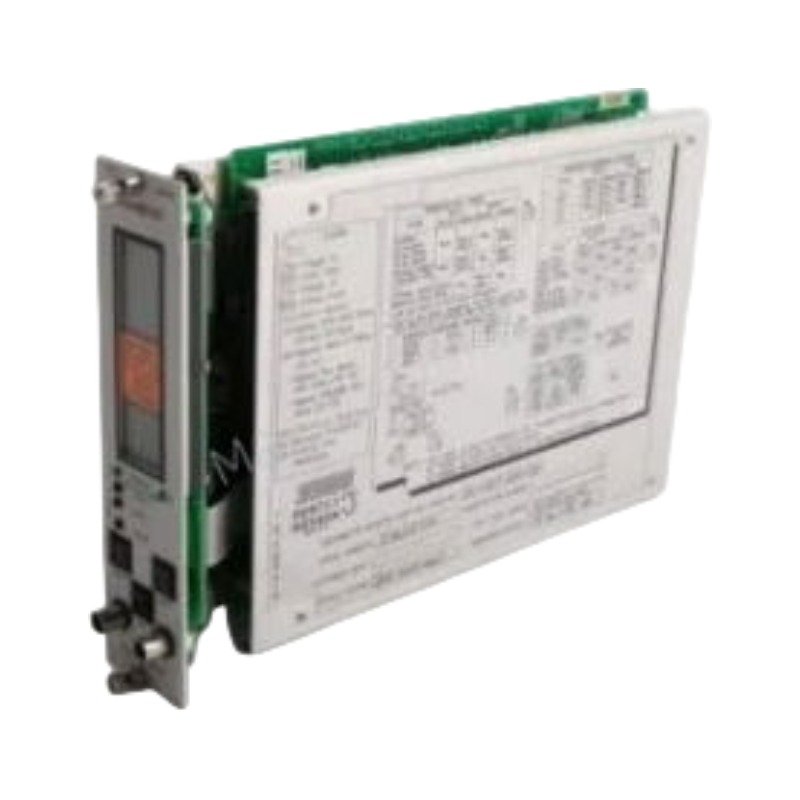

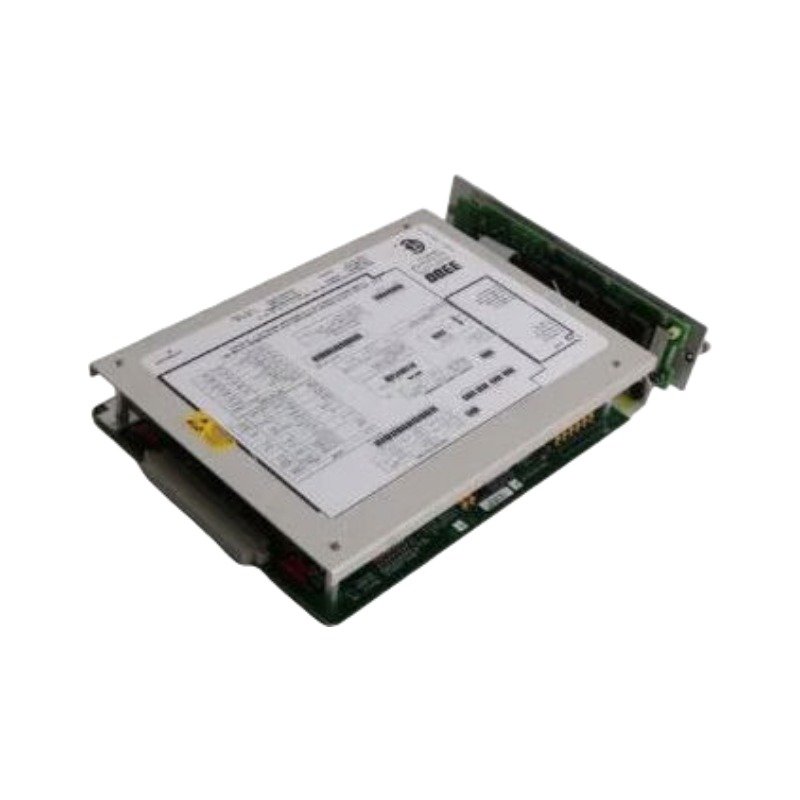

The Bently Nevada 3300/45-02-02-03-00, also cataloged as the 3300/45 Dual Differential Expansion Monitor, operates as a dedicated hardware component for continuous dual-channel relative thermal expansion monitoring within 3300 Monitoring System platforms.

Suffix Breakdown & Model Matrix

• 02: Full-scale range configuration option
• 02: Transducer input selection option (typically pairs with specific proximity probe types)
• 03: Alarm relay hardware configuration option (featuring internal dry contacts)
• 00: Factory standard agency approval option

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The instrument executes precise eddy-current probe scaling to translate raw physical displacement metrics directly into linear relative thermal expansion values. During continuous operations, the input processing loops run gap voltage validation (-10 VDC targets) to verify that the paired proximity probes reside strictly within their calibrated linear measurement zones. Consequently, this monitoring protocol mitigates reading errors generated by environmental thermal drift across the machine casing. To protect signal fidelity across high-density sensor layouts, built-in cross-talk suppression filters minimize adjacent channel interference, ensuring clean data for rotor dynamics verification.

Frequently Asked Questions

Q: What is the mechanical difference between the second suffix “02” in this model and the “01” variant?

A: The second suffix option dictates the specific transducer input compatibility profile. Option “02” configures the internal input conditioning circuitry to interface with a different physical probe diameter or scaling factor than option “01”.

Q: How does the monitor respond if the gap voltage drifts outside the calibrated operational window?

A: An internal Not OK diagnostic routine continuously polls the signal line. If the gap voltage moves beyond preset physical thresholds, the module drops the channel OK status, de-energizes the front-panel LED, and blocks the Danger relays to eliminate false trips.

Field Installation Guidelines

• Disconnect all primary rack backplane power sources prior to inserting or extracting the monitor card assembly to prevent voltage transients.
• Connect all external transducer shield drains directly to the designated chassis ground rail on the rear backplane assembly to suppress electromagnetic noise induction.
• Verify terminal screw tight torque thresholds during final rear I/O block installation to secure stable physical links under continuous mechanical vibration.
