Description

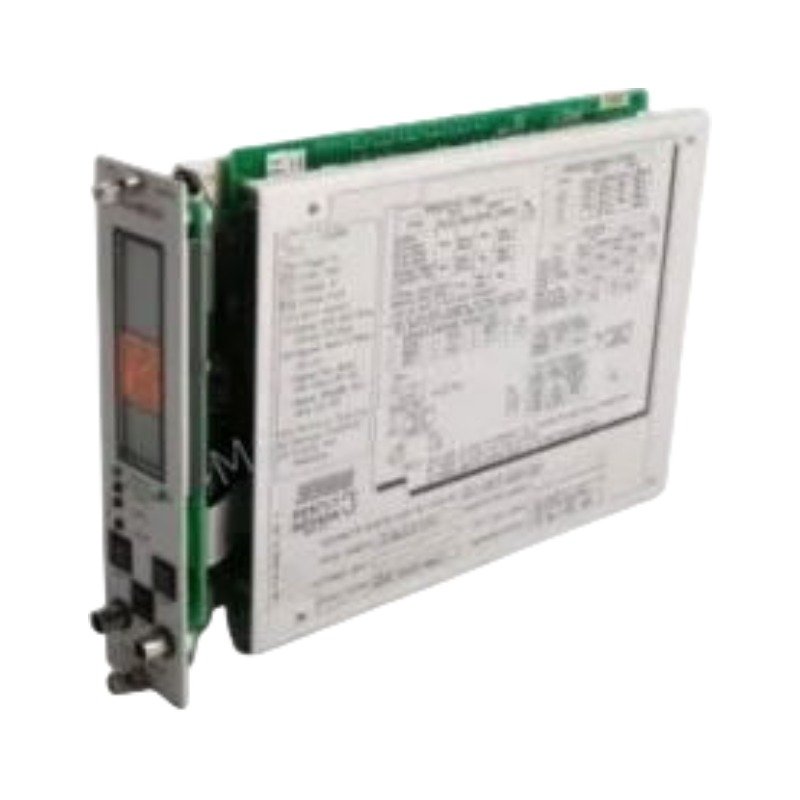

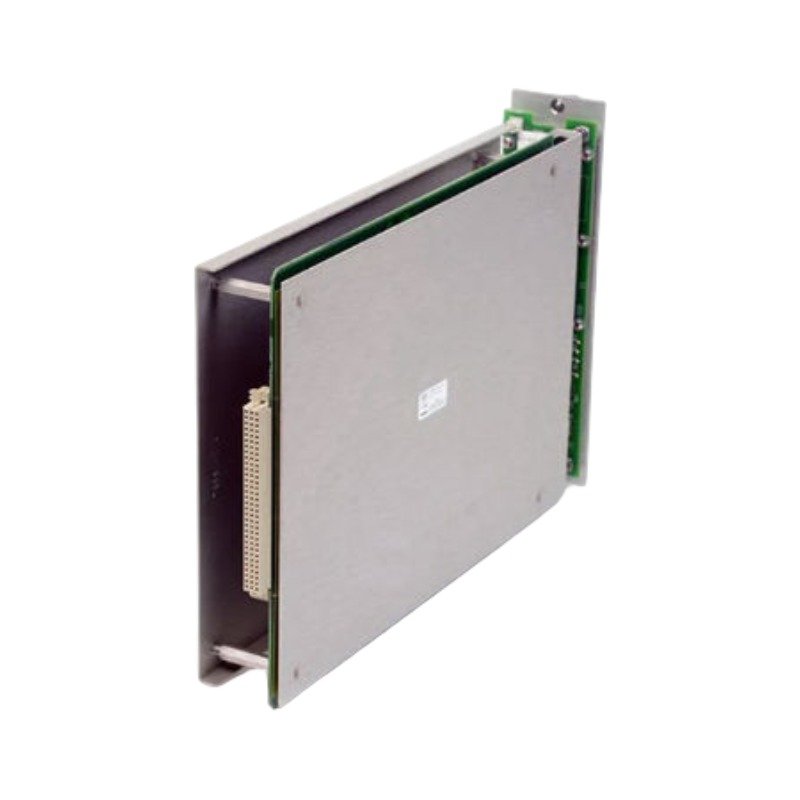

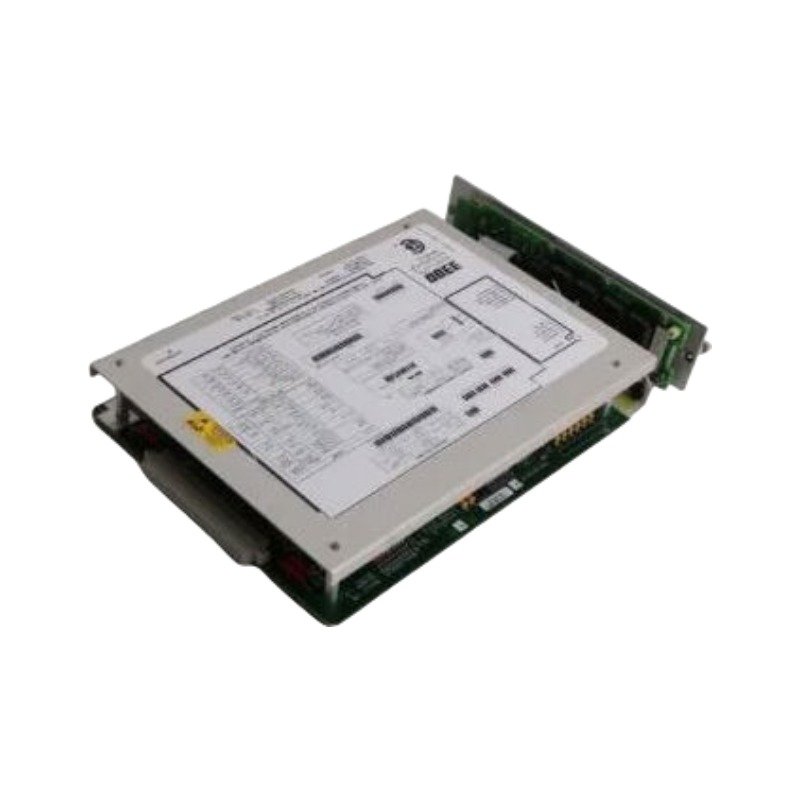

The Bently Nevada 3300/48-02-01-00-00, also cataloged as the 3300/48 Case Expansion Monitor, operates as a dedicated hardware component for continuous dual-channel absolute structural thermal growth tracking within 3300 Monitoring System platforms.

Suffix Breakdown & Model Matrix

• 02: Full-scale range configuration option (Configures the specific physical measurement span)
• 01: Transducer input selection option (Linear Variable Differential Transformer – LVDT compatibility)
• 00: Alarm relay hardware configuration option (No internal relays installed in monitor slot)
• 00: Factory standard agency approval option

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal processor executes strict eddy-current probe scaling or stroke-to-voltage translation parameters based on the paired physical sensor characteristics. During continuous operations, the module conducts ongoing gap voltage validation (-10 VDC targets) or null-point balance tracking to verify that the core of each attached sensor remains within its calibrated linear operating spectrum. Consequently, this tracking eliminates diagnostic errors generated by structural shifting or uneven mechanical sliding. To prevent signal distortion across high-density panel layouts, integrated cross-talk suppression filters isolate adjacent input lines, which preserves data accuracy needed for evaluating rotor dynamics relative to casing changes.

Frequently Asked Questions

Q: Why does this model variation show “00” for the alarm relay hardware option?

A: The “00” designation specifies that this card contains no on-board mechanical relays. Alarms are processed digitally across the backplane to drive a separate, common 3300 system relay module installed elsewhere in the rack chassis.

Q: How does the “02” full-scale option modify the module operation relative to the “01” variant?

A: The “02” suffix alters the internal gain and calibration parameters of the input signal conditioning circuit, establishing a different physical measurement window and matching front-panel scale to fit larger or smaller absolute machine casing displacement spans.

Field Installation Guidelines

• Disconnect all primary rack backplane power sources prior to inserting or extracting the monitor card assembly to eliminate voltage transients.
• Run all LVDT excitation and signal wiring through separate grounded metal conduits away from high-current AC lines to prevent magnetic noise pick-up.
• Terminate all shield drain wires directly at the designated backplane chassis ground strip, maintaining a single-point grounding layout to eliminate ground loop current induction.
