Description

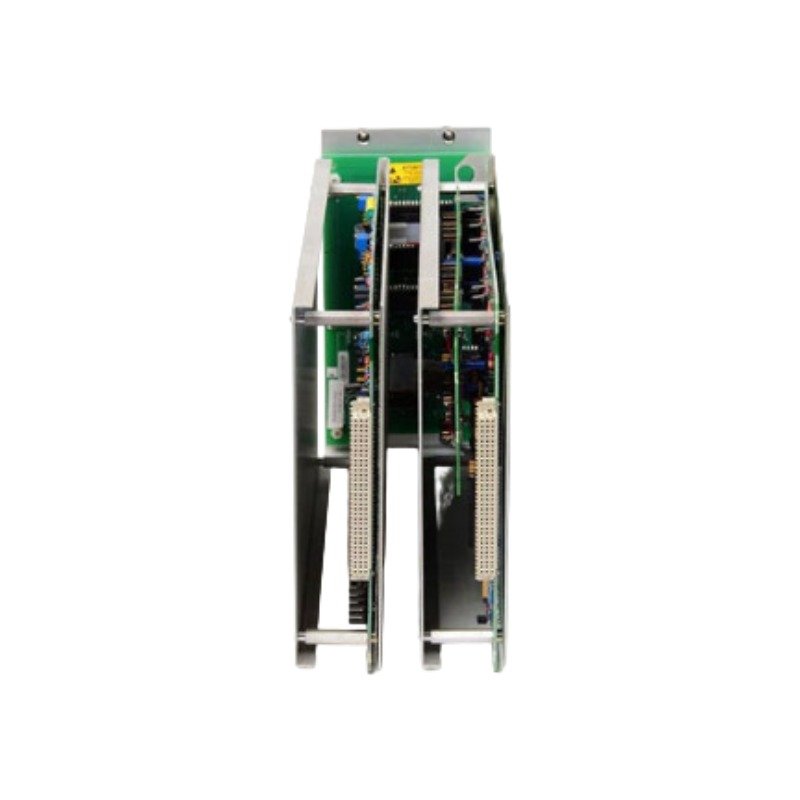

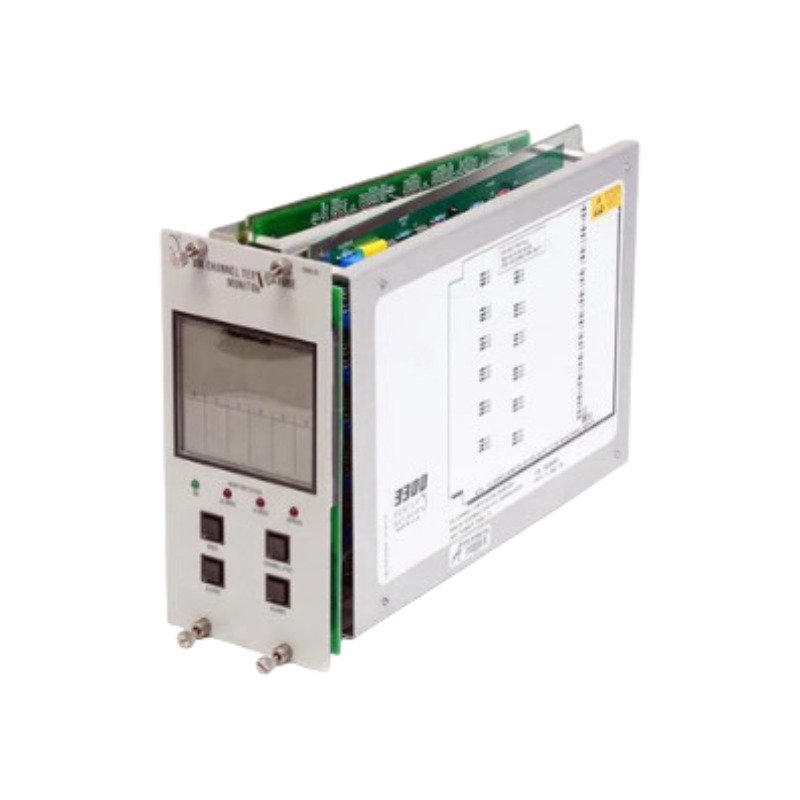

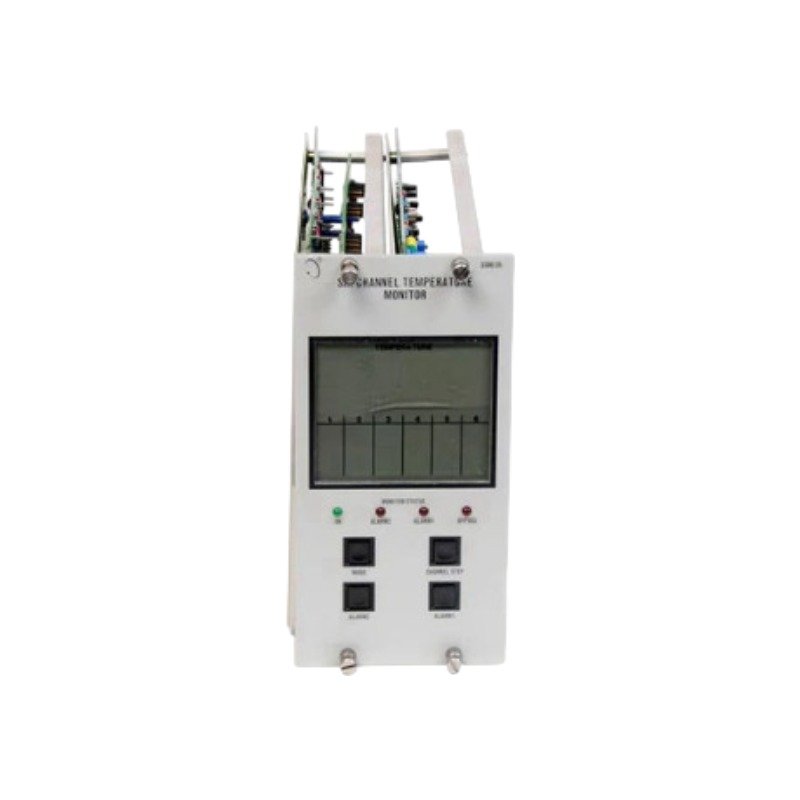

The Bently Nevada 3300/35, also cataloged as the 3300/35 Six-Channel RTD Temperature Monitor, operates as a dedicated hardware component for processing Resistance Temperature Detector (RTD) sensor signals within 3300 Monitoring System platforms. Specifically, the module receives inputs from up to six independent 3-wire or 4-wire RTD channels to execute real-time machine thermal monitoring. Consequently, it tracks temperature variances across critical machinery bearings, winding configurations, and casing zones to protect industrial rotating machinery from thermal overload conditions.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 3300/35 Six-Channel RTD Temperature Monitor complements traditional eddy-current probe scaling configurations by adding crucial thermal validation variables to overall machinery protection strategies. During continuous operation, variations in thrust bearing temperatures correlate directly with shaft axial migration and gap voltage validation targets. Therefore, tracking thermal metrics allows plant engineers to verify the structural integrity of mechanical components alongside raw rotor dynamics parameters. Furthermore, the monitor isolates its internal sensor loops to ensure comprehensive cross-talk suppression, preventing high-frequency line interference from corrupting adjacent vibration and position monitoring cards within the passive system backplane.

Frequently Asked Questions

Q: Does the 3300/35 Six-Channel RTD Temperature Monitor support the hot-swap procedure while the rack is live?

A: No. The 3300 backplane architecture requires full de-energization before inserting or removing the 3300/35 hardware module. Disconnecting the component under power can cause voltage transients that compromise the integrity of adjacent modules.

Q: How do technicians alter the internal channel configuration to change sensor compatibility from Platinum to Copper RTDs?

A: Technicians change the input sensor selection by adjusting physical plug-in jumpers located directly on the internal circuit board assembly. Subsequently, this modification requires a complete monitor recalibration to maintain specified accuracy levels.

Field Installation Guidelines

1. First, isolate the primary rack enclosure fully from external power inputs before attempting installation.
2. Next, line up the module housing with any two adjacent open slots, noting that slots 1 and 2 remain strictly reserved for the system power supply and system monitor.
3. Subsequently, slide the module firmly back along the upper and lower card guides until the rear interface connects completely with the passive backplane.
4. Finally, secure the module by turning the top and bottom captive panel screws clockwise, and terminate the RTD field wiring shields at the central instrumentation ground bus.
