Description

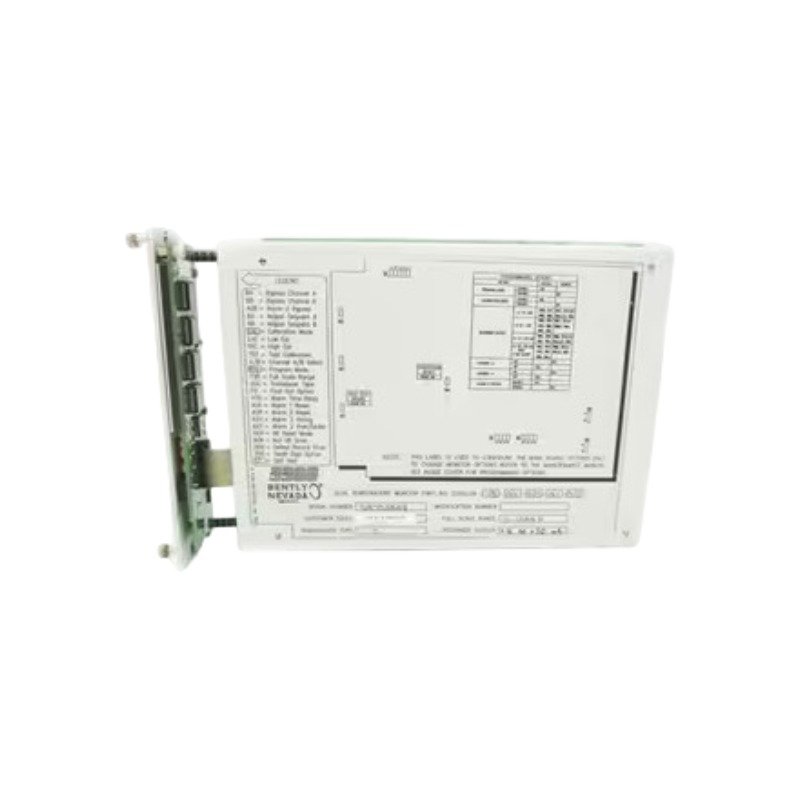

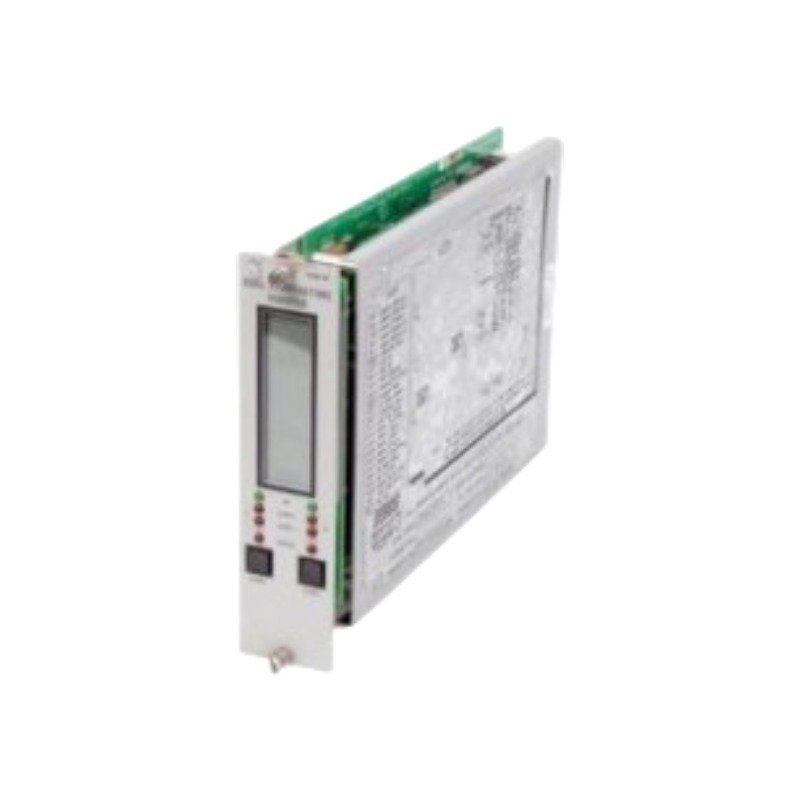

The Bently Nevada 3300/36, also cataloged as the 3300/36 Dual-Channel Temperature Monitor, operates as a dedicated hardware component for processing sensor signals to execute machinery thermal protection within 3300 Monitoring System platforms. Specifically, the module processes inputs from two independent field-installed temperature sensors to measure critical bearing and casing parameters continuously. Consequently, it executes real-time evaluation of machine thermal states, actively signaling the system backplane and driving integrated relays when temperatures cross pre-set hardware limits.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 3300/36 Dual-Channel Temperature Monitor functions alongside traditional eddy-current probe scaling configurations to deliver complete Turbine Supervisory Instrumentation (TSI) correlation metrics. While proximity sensors monitor rotor dynamics and establish precise gap voltage validation targets near -10 VDC, this module tracks corresponding structural heat signatures. Therefore, checking localized bearing temperatures allows operators to identify early oil-film breakdown or thermal expansion anomalies before mechanical rubbing modifies shaft axial constraints. Furthermore, the internal electronic filter stages optimize cross-talk suppression between the dual input loops, keeping high-frequency field transients from distorting the sensitive analog processing lines of neighboring rack instruments.

Frequently Asked Questions

Q: Does the 3300/36 Dual-Channel Temperature Monitor allow hot-swapping while the rest of the instrument rack is energized?

A: No. The 3300 Monitoring System backplane does not isolate individual monitor connections during a live insertion or extraction. Technicians must remove primary rack power before replacing this monitor to eliminate backplane current spikes and prevent accidental machine trip conditions.

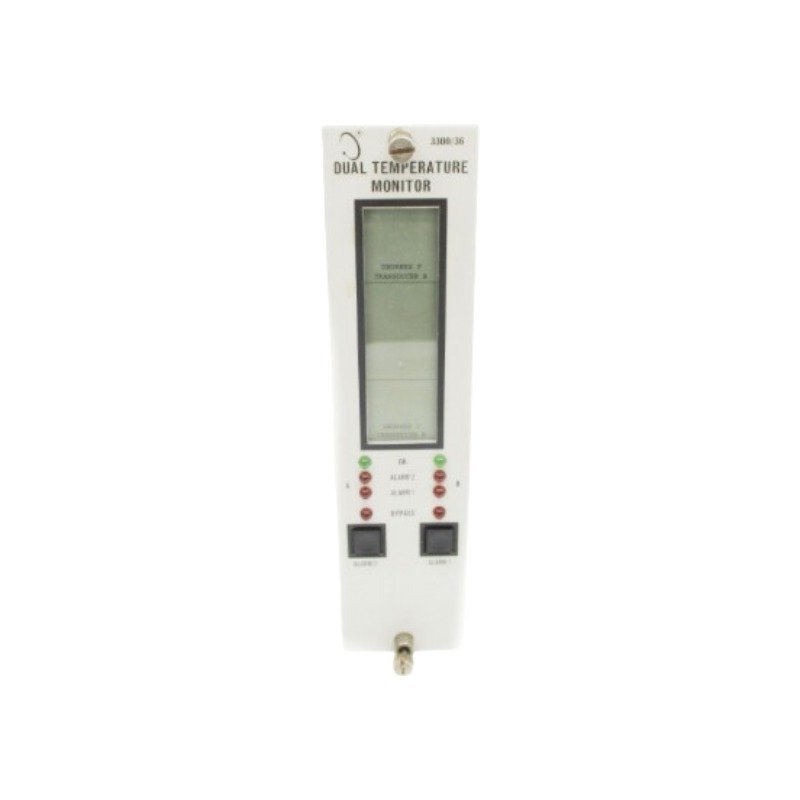

Q: Why does this specific module utilize a 7-segment LCD instead of the high-contrast bargraph layout found on other 3300 series cards?

A: The 3300/36 monitor employs a dedicated 7-segment LCD configuration to provide precise, direct numeric readout of temperature values. Because thermal tracking requires exact engineering unit measurements rather than rapid dynamic percentage trend observation, a digital numeric presentation yields higher functional accuracy for control room inspections.

Field Installation Guidelines

1. First, verify that the 3300 series instrument frame is entirely de-energized prior to handling the internal electronic modules.
2. Next, line up the circuit board edges with the upper and lower plastic card guides inside the rack frame, pushing firmly until the rear connector seats into the backplane.
3. Subsequently, slide the monitor front panel assembly to the left to expose the mounting points, then tighten the top and bottom captive screws to finalize local ground continuity.
4. Finally, route all external RTD or thermocouple signal wires away from high-voltage AC lines, terminating the cable shields at the designated single-point terminal block on the Signal Input/Relay Module.
