Description

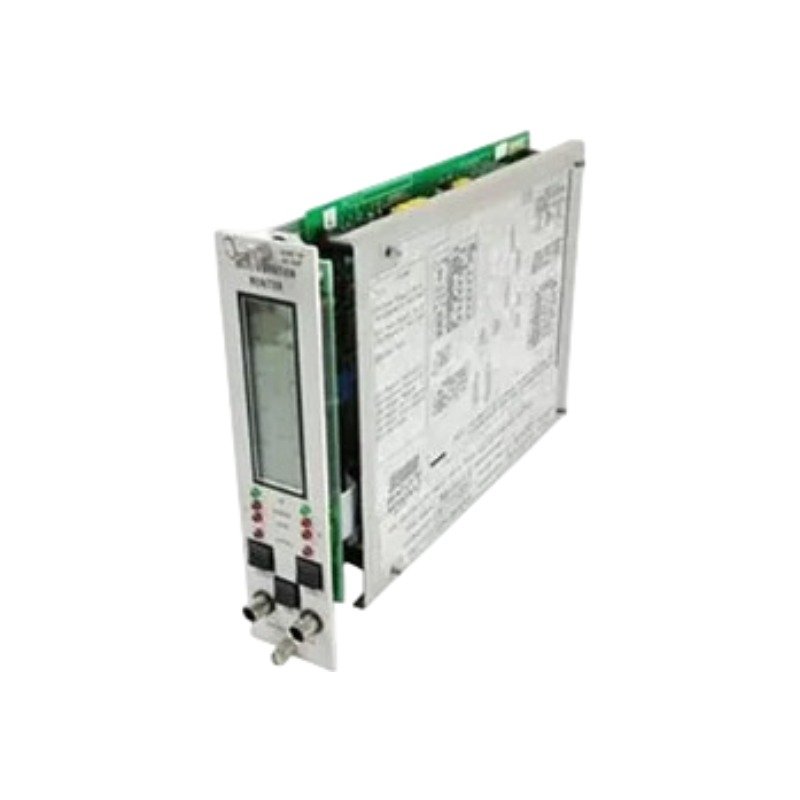

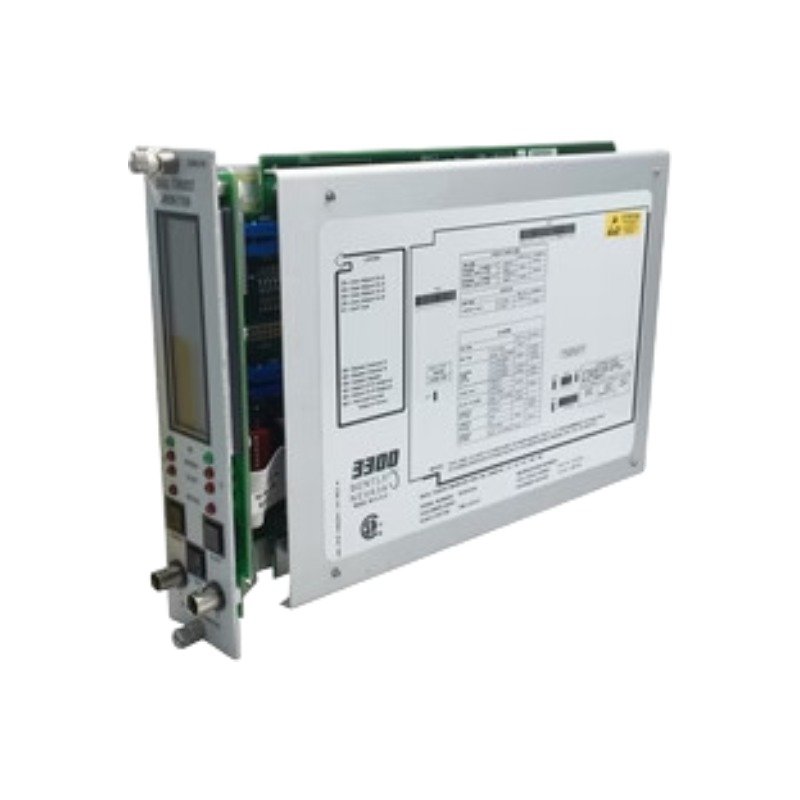

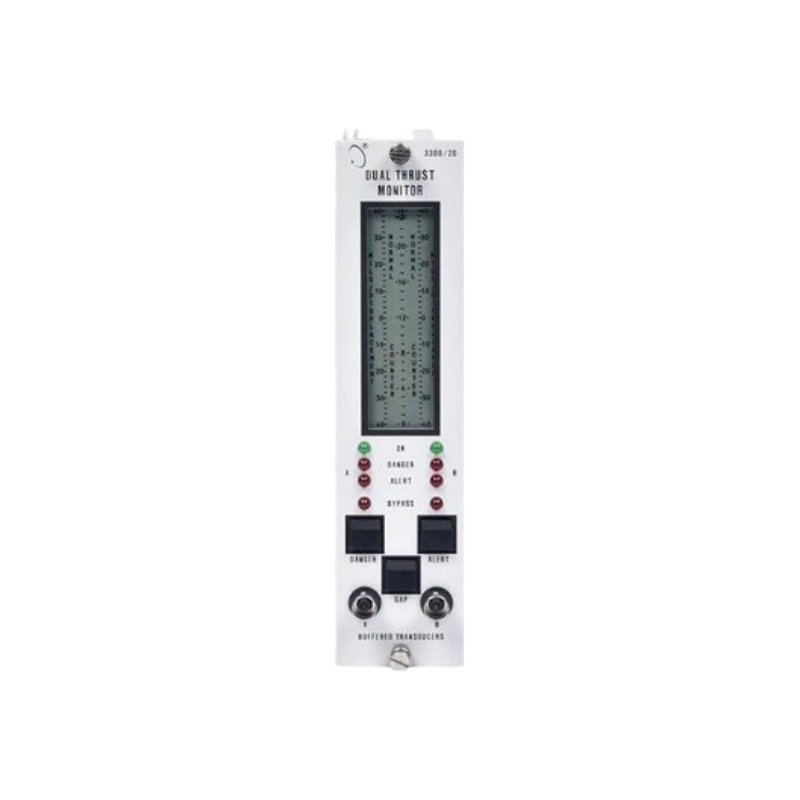

Configured for specific technical task execution in 3300 Monitoring System platforms, the Bently Nevada 3300/20 (3300/20 Dual Thrust Position Monitor) provides direct physical/electrical execution. Specifically, the module processes raw voltage inputs from proximity transducer networks to continuously track the axial displacement of rotating machine shafts. Consequently, it monitors the position relative to internal thrust bearing clearances, actively tripping alarms when displacement crosses pre-configured hardware thresholds to prevent catastrophic machinery contact.

Hardware Specifications

Mechanical Monitoring & TSI Characterization

The 3300/20 Dual Thrust Position Monitor relies heavily on accurate eddy-current probe scaling to convert analog electrical signals into exact engineering units. During ongoing operations, engineers perform gap voltage validation to maintain target levels around -10 VDC, securing the proximity probe within its optimum linear measurement range. This precise measurement directly feeds into complex rotor dynamics assessments, providing early warning signals before physical axial shifting destroys thrust collars. Furthermore, the integrated circuitry enforces cross-talk suppression between the dual monitoring channels, preventing high-frequency interference from distorting the adjacent proximity probe readings inside the rack assembly.

Frequently Asked Questions

Q: Does the 3300/20 Dual Thrust Position Monitor support hot-swapping during active machinery operation?

A: No. Modifying or replacing the 3300/20 card while the rack remains energized can introduce electrical transients. Technicians must isolate power to prevent unintentional alarm actuation or component degradation before extracting the module from its backplane interface.

Q: How do technicians adjust the input sensitivity from 200 mV/mil to 100 mV/mil?

A: Technicians change input sensitivity settings by configuring physical hardware jumpers located directly on the main internal circuit board. They must completely de-energize the monitor rack, remove the 3300/20 module, and position the jumpers according to the sensor specifications before restoring power.

Field Installation Guidelines

1. First, slide the 3300/20 monitor chassis board directly into any available rack position, ensuring it avoids slots 1 and 2 which remain exclusively reserved for the system power supply and system monitor modules.
2. Next, carefully push the module backward until the multi-pin rear connector aligns and seats completely within the passive backplane assembly.
3. Subsequently, slide the front panel assembly to the left, then firmly tighten the upper and lower panel screws to establish robust mechanical ground continuity to the main rack frame.
4. Finally, route the three-conductor shielded triad cables from the Proximitor sensors, terminating the shield drains exclusively at the designated system ground point to prevent ground loops.
