Description

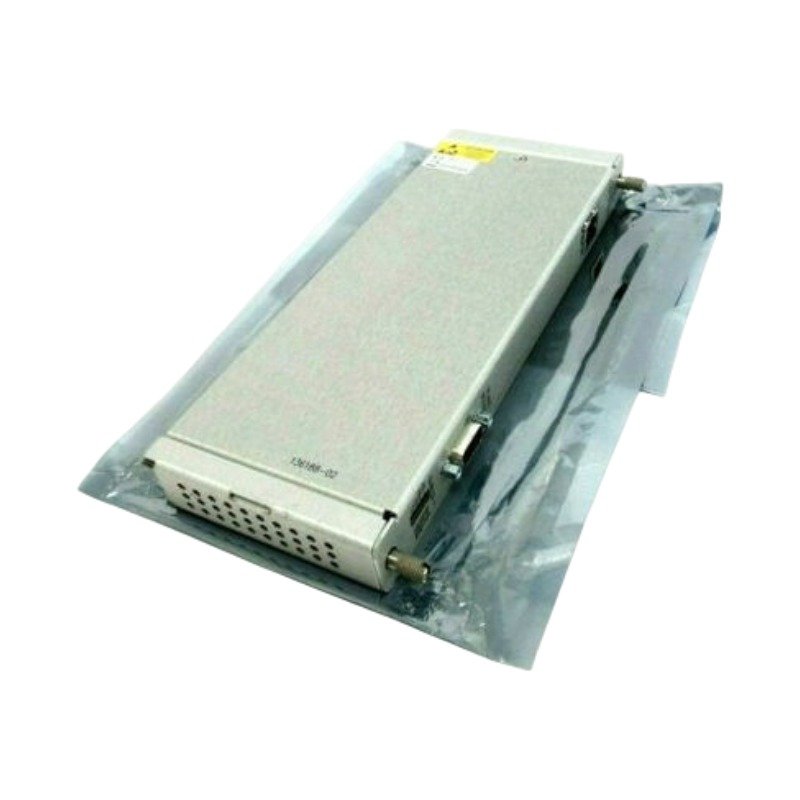

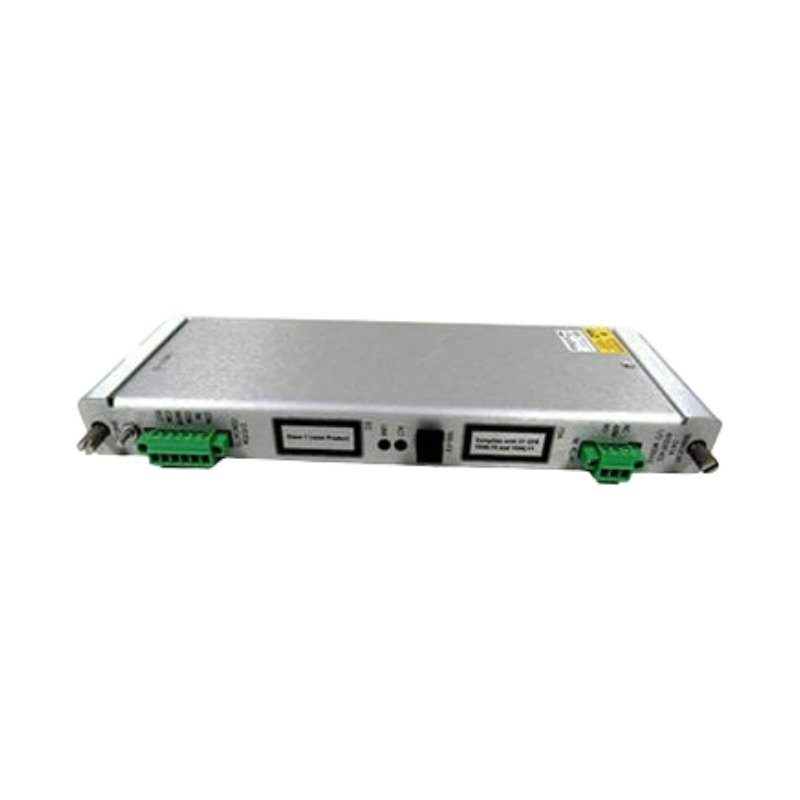

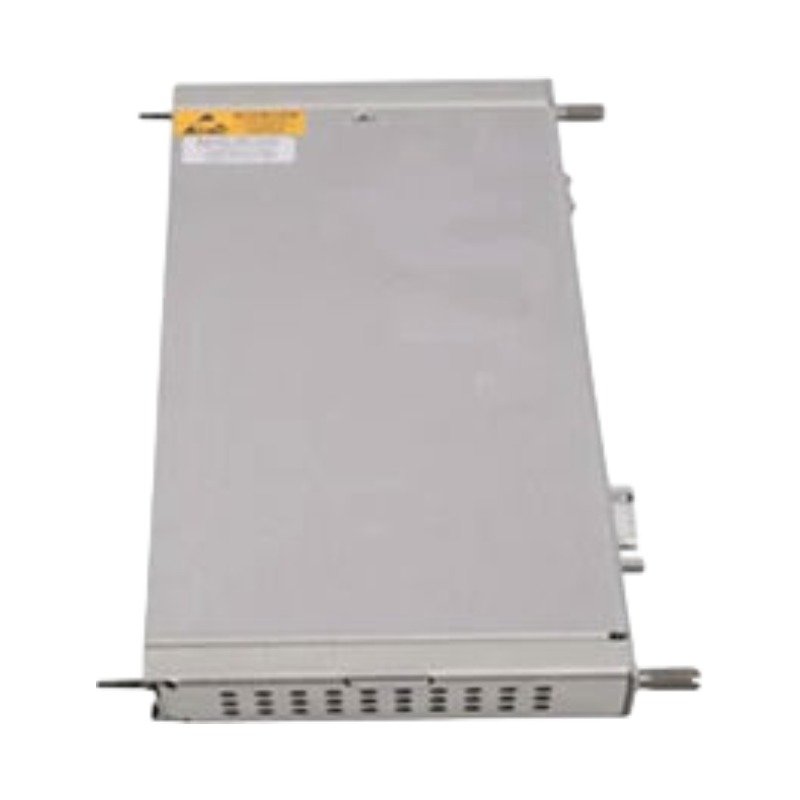

Configured for continuous radial vibration monitoring in rotating machinery assemblies, the Bently Nevada 3300/16-14-01-03-00-00-00 (3300/16 Dual Vibration Monitor) provides direct physical/electrical execution of transducer input processing. Furthermore, this hardware processes signals from two independent proximity probe channels simultaneously to evaluate dynamic mechanical shaft motion.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Analysis

The processing core translates raw AC/DC voltage inputs from Proximitor sensors based on precise eddy-current probe scaling configurations. During operation, the device continuously monitors gap voltage validation (-10 VDC targets) to ensure the transducer remains centered within its linear calibration window. Consequently, this precise electrical mapping allows the system to capture real-time rotor dynamics data, including micro-inch shaft displacement, while internal filtration networks execute aggressive cross-talk suppression to eliminate signal bleed between concurrent channels.

Frequently Asked Questions

Q: How does the 3300/16 monitor respond if a transducer circuit fails?

A: The hardware continuously analyzes bias voltages; therefore, if an open or short circuit occurs, it activates a “NOT OK” status indicator and clamps the affected channel to prevent false machine trips.

Q: Can the internal alarm setpoints be adjusted without removing the module?

A: Yes, authorized personnel can modify the alert and danger threshold levels from the front panel interfaces or via the rack communication network while the system is operating.

Field Installation Guidelines

First, ensure the module keying pegs align precisely with the designated backplane slot configuration before inserting the hardware. Then, slide the card smoothly along the guide rails and apply firm pressure to engage the rear multi-pin connector blocks safely. Afterward, lock the module in place by tightening the upper and lower captive mounting screws securely. Finally, terminate all coaxial transducer cables using proper shielding practices, keeping signal lines separate from high-voltage conduit to prevent electromagnetic interference from skewing rotor displacement readings.
