Description

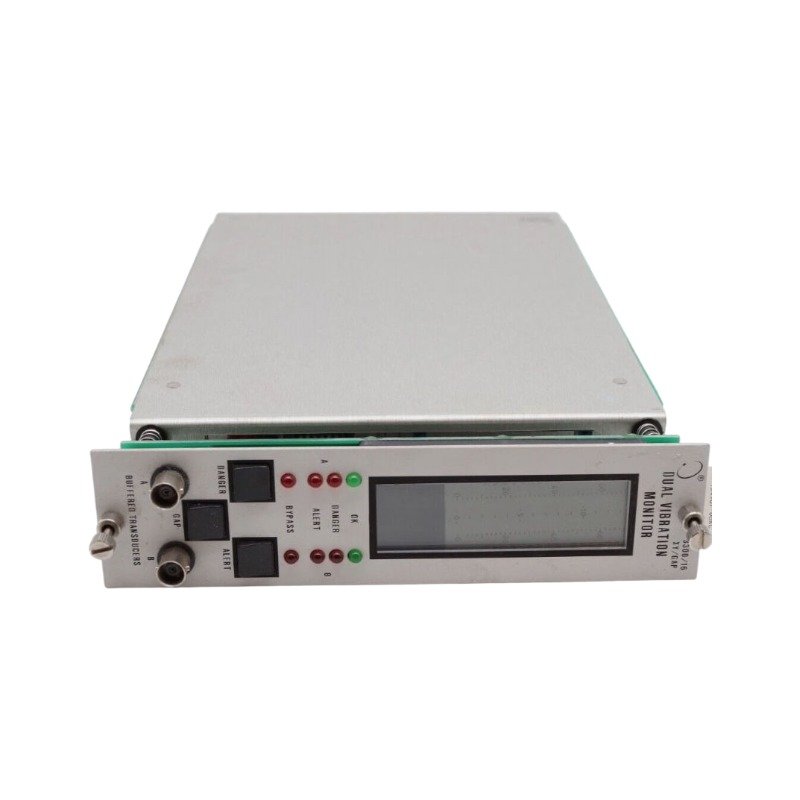

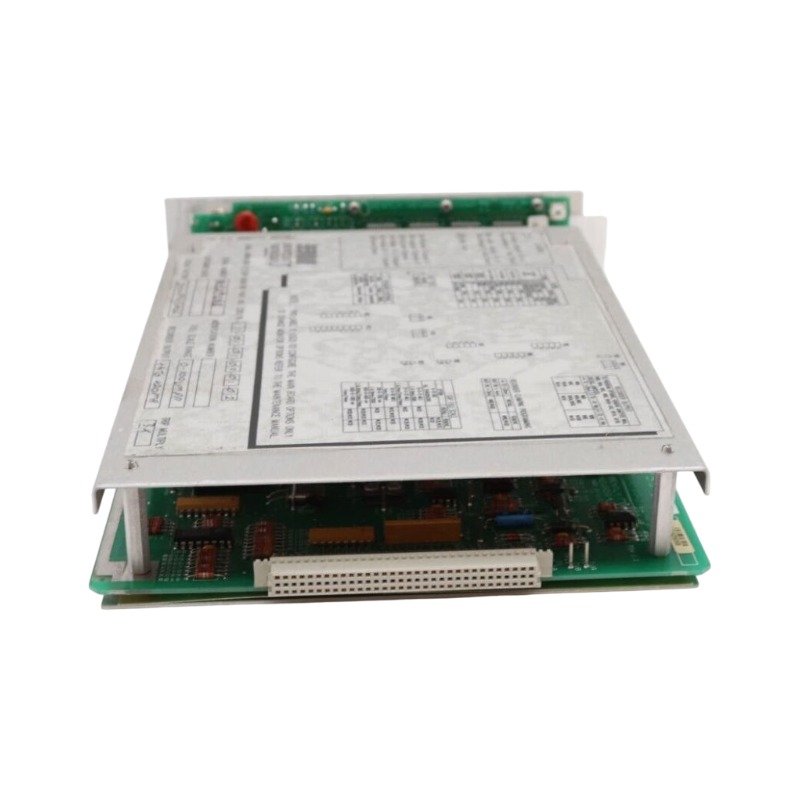

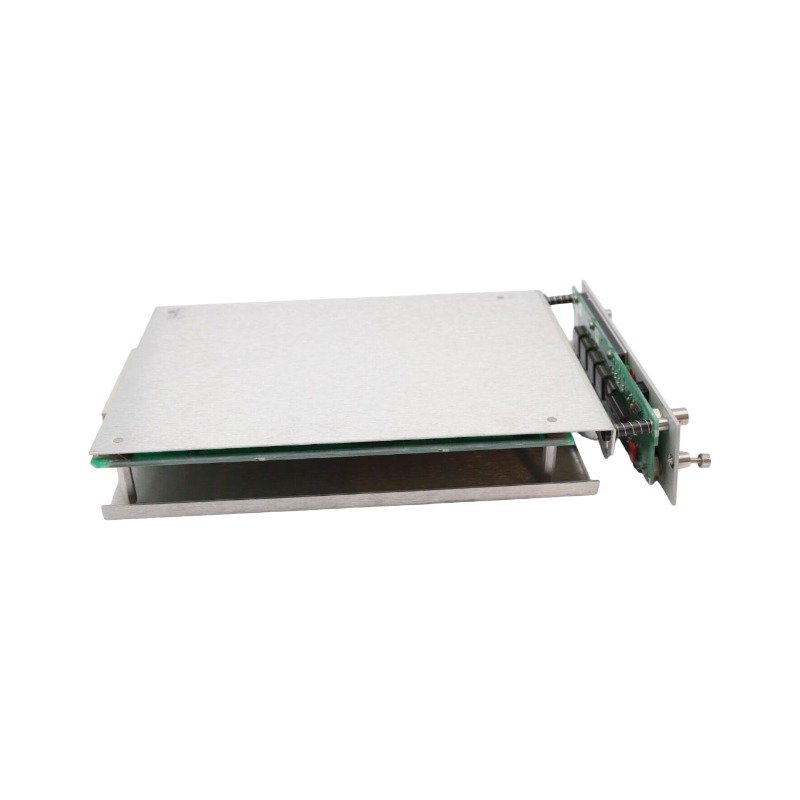

Configured for continuous radial vibration monitoring in rotary machinery shafts, the Bently Nevada 3300/16-15-01-01-00-00-01 (3300/16 Dual Vibration Monitor) provides direct physical/electrical execution. This hardware component processes signals derived from proximity transducer systems, converting dynamic voltage inputs into real-time vibration amplitudes displayed on its front panel. The module drives analog outputs and activates internal relay circuits when predefined vibration setpoints are breached, ensuring immediate hardware protection independent of external processing networks.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The Bently Nevada 3300/16-15-01-01-00-00-01 utilizes specialized internal circuitry for eddy-current probe scaling, matching the 8.0 V/mm linear sensitivity of standard 5 mm and 8 mm Proximitor sensor systems. During commissioning, the system enforces a gap voltage validation procedure targeting a nominal -10 VDC baseline, which ensures that the physical probe tip remains positioned in the center of the calibrated linear range. To minimize mechanical anomalies within complex rotor dynamics, the module integrates electronic cross-talk suppression filters, isolating individual channel frequencies and preventing mutual inductive interference between closely mounted vertical and horizontal transducers.

Frequently Asked Questions

Q: How does the module indicate transducer circuit failures?

A: The module continuously monitors the input bias voltage. If the probe signal shifts outside the designated -3 VDC to -18 VDC window, the NOT OK LED illuminates, and the channel bypasses alarm execution to avoid false trips.

Q: Can this monitor be installed or removed while the 3300 rack is powered?

A: Yes. The hardware design supports hot-swap functionality, allowing field personnel to insert or remove the monitor without disrupting the power distribution or operation of adjacent modules within the same rack chassis.

Q: What is the purpose of the individual channel bypass switches on the circuit board?

A: The physical slide switches enable maintenance personnel to isolate specific channels during validation procedures, preventing the accidental triggering of machinery trip relays during testing.

Field Installation Guidelines

• Chassis Insertion: Slide the module firmly along the upper and lower plastic chassis guides until the backplane connectors fully engage with the rack motherboard. Secure the dual front-panel captive screws to achieve absolute physical grounding.
• Transducer Shielding: Terminate the coaxial or twisted-pair transducer shield lines directly at the designated chassis ground busbar on the rear terminal block. Do not terminate shield lines at both ends to prevent the formation of ground loops.
• Wiring Separation: Route low-voltage transducer input cables through dedicated, isolated conduits. Keep them separate from high-voltage AC power lines and switched relay output lines to eliminate electromagnetic noise injection.
• Terminal Torque: Tighten all rear terminal block terminal screws to a maximum rating of 0.56 N-m to prevent thread stripping and maintain gas-tight electrical contact.
