Description

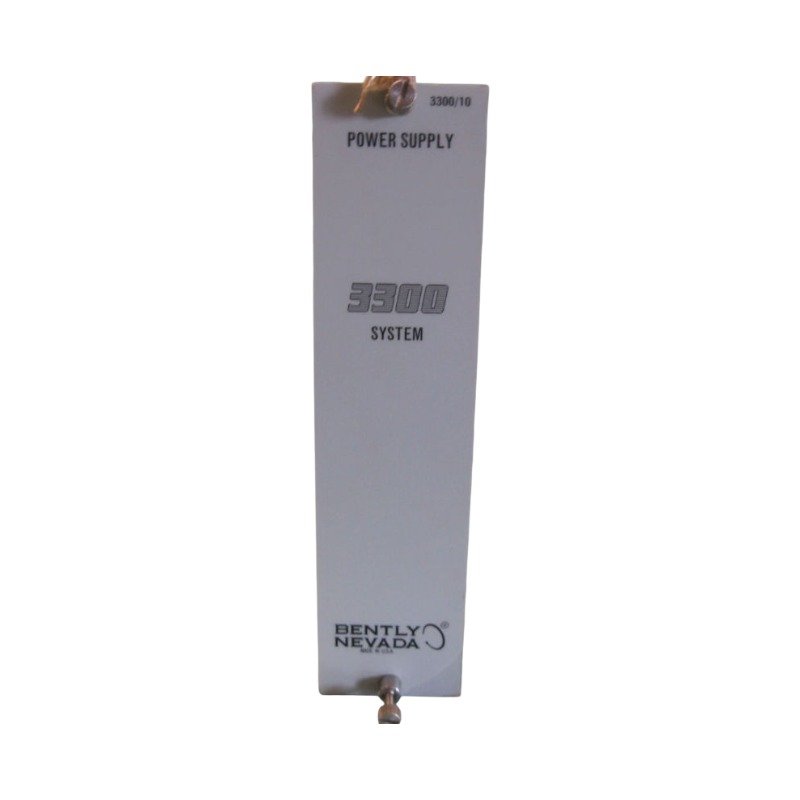

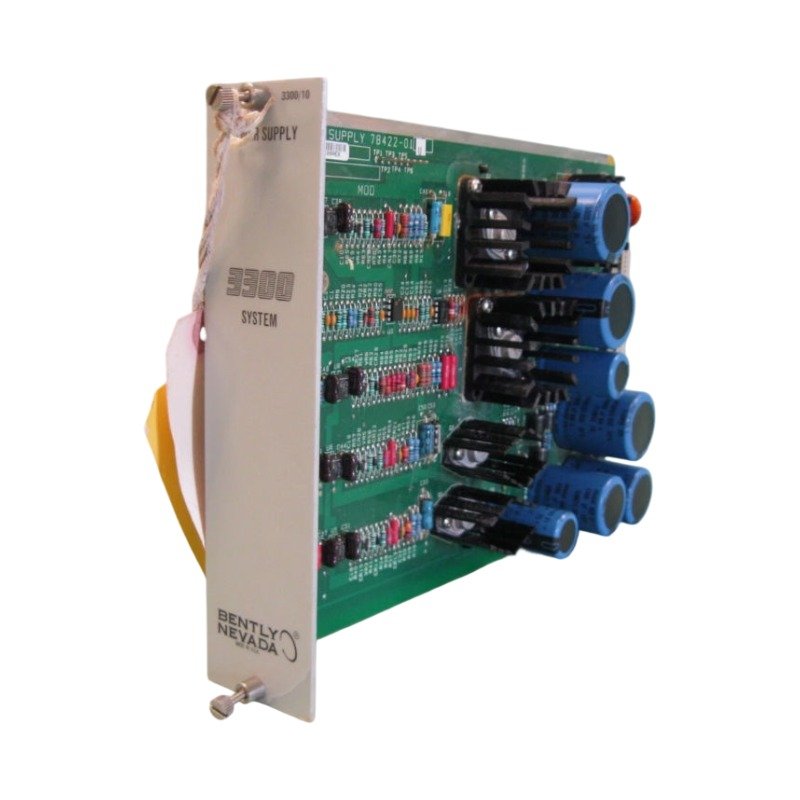

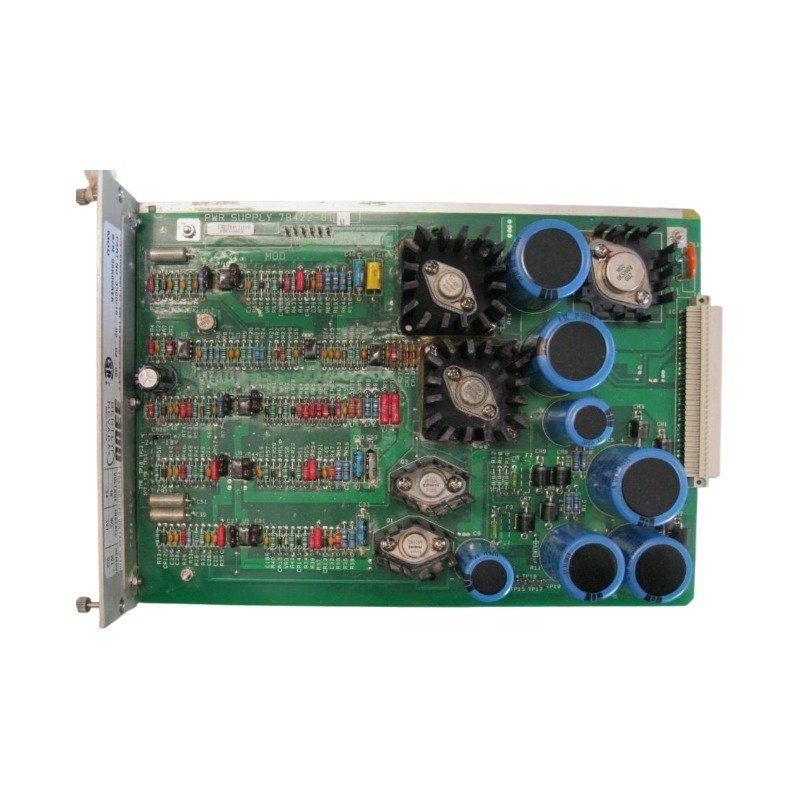

The Bently Nevada 3300/10-02-02-00, also cataloged as the 3300/10 power supply module, operates as a dedicated hardware component for primary rack voltage regulation within machinery monitoring networks. Consequently, it executes direct power conversion to supply isolated backplane voltages to adjacent monitoring modules.

Hardware Specifications

Transducer Power and Gap Voltage Validation Support

The power module actively outputs a strictly regulated -24 VDC bus to energize connected eddy-current proximity probes. Therefore, this stable excitation source enables the adjacent vibration monitors to execute accurate gap voltage validation (-10 VDC targets) without power-induced signal drift. Additionally, the internal circuit design suppresses signal cross-talk across the rack backplane by maintaining physical component separation between the digital logic bus (+5 VDC) and the analog transducer power lines.

Frequently Asked Questions

Q: What specific backplane voltages does the 3300/10 module generate?

A: The module directly converts incoming mains power to output +5 VDC for internal logic execution, along with +15 VDC, -15 VDC, and -24 VDC to drive analog sensing loops.

Q: Does the module architecture permit live hot-swapping?

A: Removing the primary power supply while the chassis is energized immediately drops backplane power, which triggers a direct loss of machinery protection states. Therefore, operators must disconnect main input power before initiating module extraction.

Field Installation Guidelines

First, verify the incoming AC or DC mains voltage matches the rear chassis input configuration before attempting module insertion. Then, slide the hardware into the designated power slot, applying even, direct pressure to seat the backplane connector pins fully. Afterward, tighten the top and bottom captive screws to secure the unit against environmental mechanical vibration. Finally, technicians must confirm proper shield termination at the rack earth bus bar, as incorrect grounding directly compromises the noise floor of the eddy-current measuring loops.
