Description

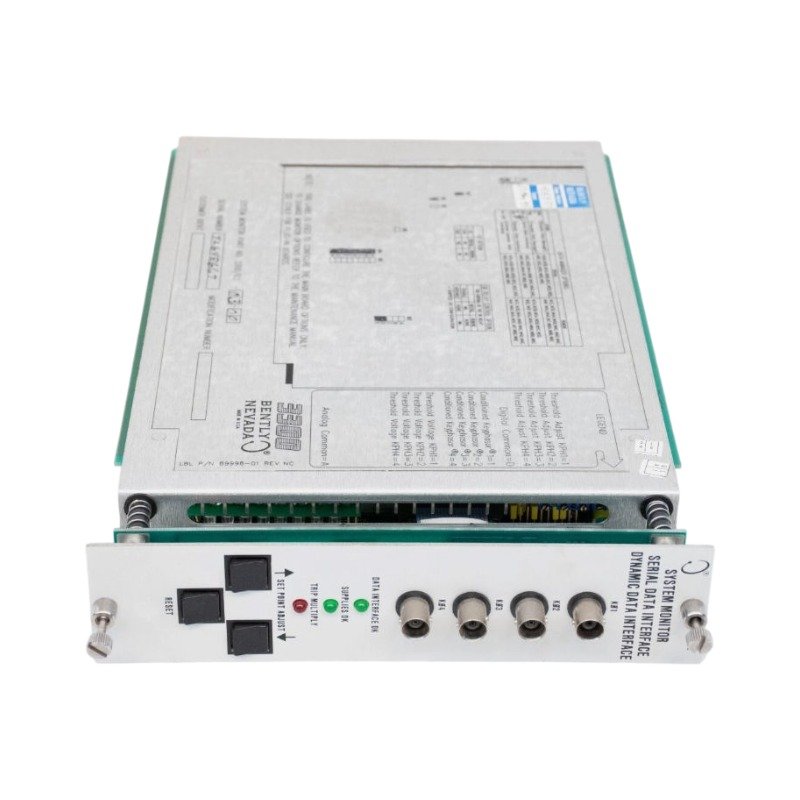

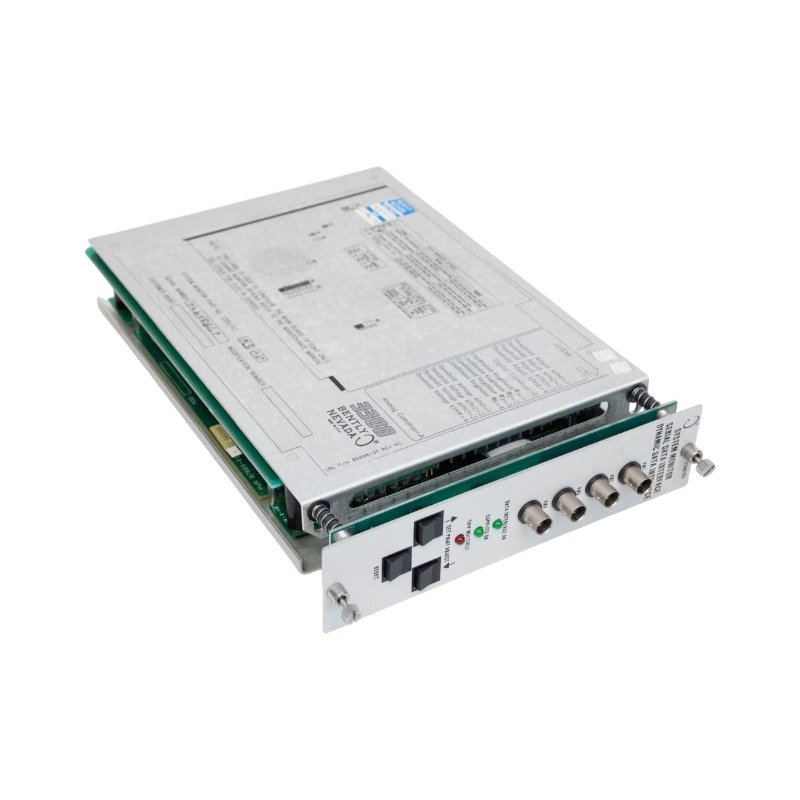

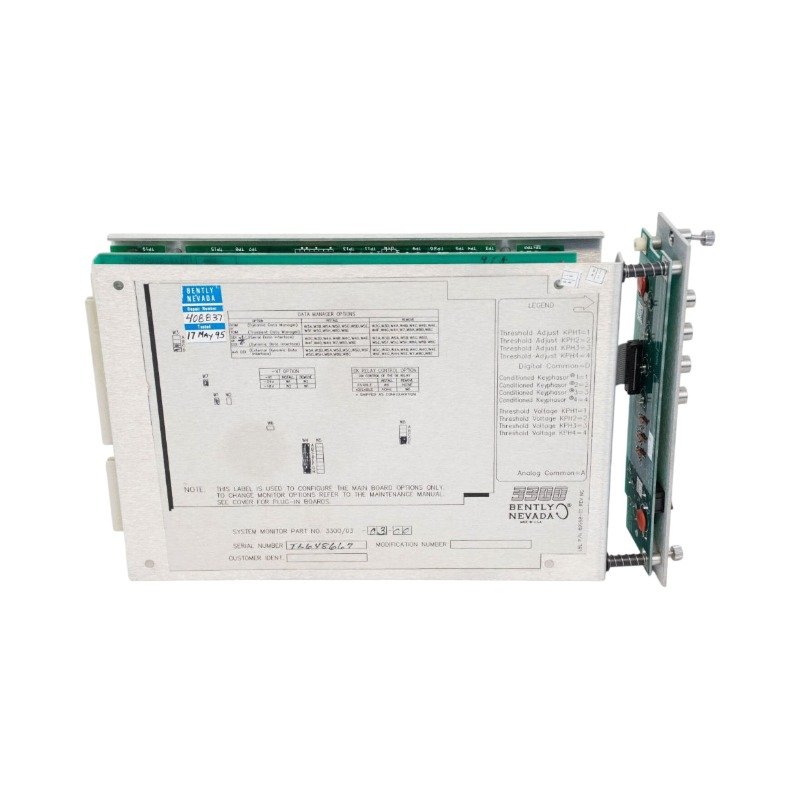

The Bently Nevada 3300/03-03-00 functions as the centralized System Monitor module designed for legacy 3300 Series Machinery Protection Systems. It integrates basic system orchestration alongside serial communication capabilities, allowing data sharing with host diagnostic networks.

Suffix Breakdown & Model Matrix

The alphanumeric options dictate the exact data interface capability and safety approval standards of the monitoring node:

• 03 (Type Option): Dual capability configuration featuring both Serial Data Interface (SDI) and Dynamic Data Interface (DDI) firmware architecture.
• 03 (Internal Barrier Option): Keyphasor safety barriers included for explosion-proof galvanic separation.
• 00 (Agency Approval Option): Standard industrial manufacturing configuration without unique hazardous-area regional stamps.

Hardware Specifications

Multi-Channel Communication and Rotor Dynamics Reference

The dual-mode firmware architecture continuously gathers proportional data points from secondary racks. Consequently, the module manages static registers for standard PLC polling alongside high-fidelity waveforms optimized for deeper predictive maintenance suites.

While individual vibration channels focus on eddy-current probe scaling and continuous gap voltage validation (-10 VDC targets), this supervisor coordinates up to four input phase references. Capturing these pulses establishes a rock-solid time-sync marker across the backplane, helping adjacent cards accurately plot 1X/2X vector amplitudes and transient rotor dynamics parameters.

Frequently Asked Questions

Q: What is the primary difference between the SDI and DDI communication paths on this module? A: The Serial Data Interface (SDI) handles static data packet transfers (such as alarm bits, overall values, and sensor OK states) to plant DCS platforms. The Dynamic Data Interface (DDI) delivers uncompressed 12-bit dynamic waveform values required by condition monitoring systems.

Q: Can this 3300/03-03-00 model be hot-swapped into a live, running machinery protection rack? A: No. Because the system monitor drives common rack parameters, power distribution tracks, and the master system OK trip loops, removing it while under load will interrupt backplane functions and drop the common safety relays.

Field Installation Guidelines

• Slot Configuration Rule: Slide the module only into Slot 2 of the 3300 chassis. It must sit directly beside the primary AC or DC power supply unit to mate with the master bus pathways.
• Jumper Verification Check: Confirm the internal barrier circuit jumpers match local sensor excitation requirements (-18 VDC vs -24 VDC options) prior to physical panel deployment.
• Backplane Screw Torquing: Fully secure the front faceplate panel screws, tightening them to 0.68 N-m to verify frame ground continuity and prevent hardware shifting from local deck vibrations.
• Communication Length Bounds: Limit the RS-232 serial hookups to a max distance of 30 meters. For longer structural runs up to 1200 meters, use the RS-422 interface lines to prevent signal degradation.
