Description

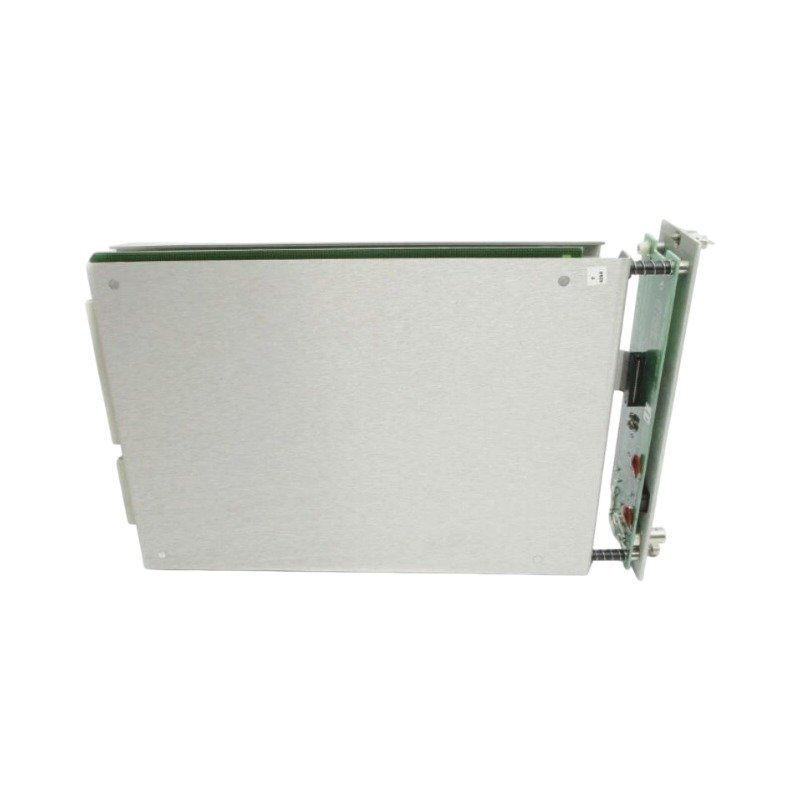

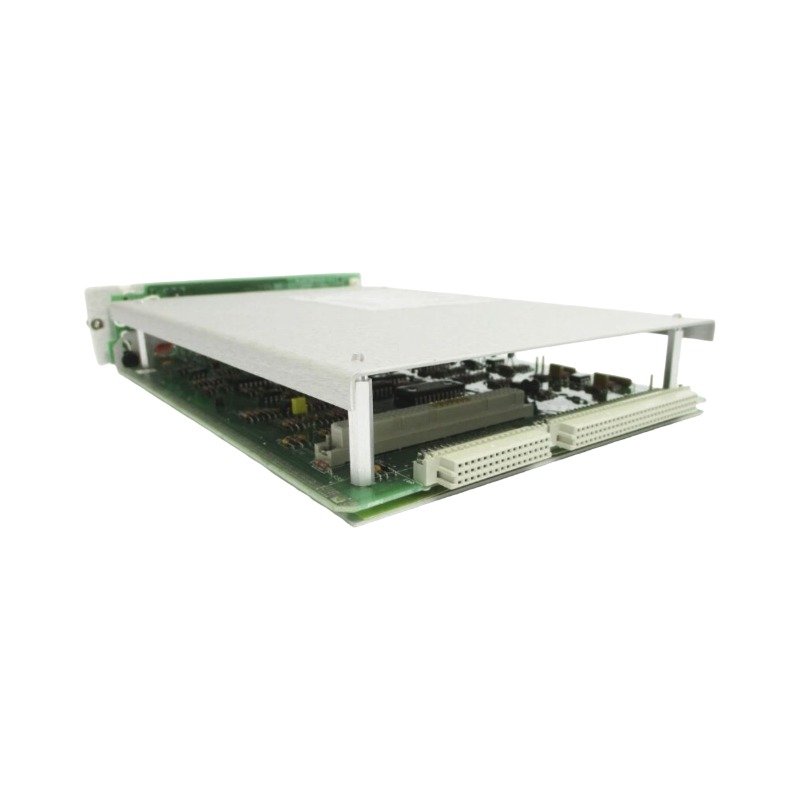

The Bently Nevada 3300/01-01-00 functions as the primary, centralized System Monitor module designed for legacy 3300 Series Machinery Protection Systems. It sits in the dedicated leftmost monitor slot of the system chassis, acting as the structural supervisor that manages rack power utilities, displays global diagnostic events, and orchestrates common alarm relay strings.

Suffix Breakdown & Model Matrix

The alphanumeric variable matrix specifies the physical configuration and diagnostic capabilities engineered into this specific monitor module:

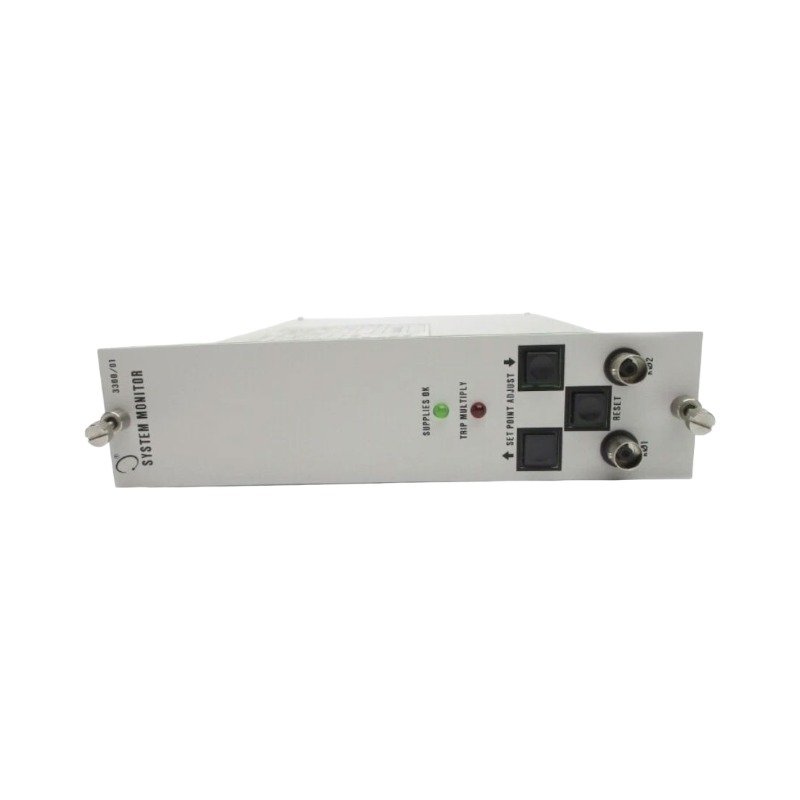

• 01 (Display Option): Includes a physical front-panel LCD/LED display window providing direct readout of common rack parameters and diagnostic fault codes.
• 01 (System Relay Option): Form C Single-Pole Double-Throw (SPDT) System OK Relay configured for Normally Energized (NE) operation, providing a fail-safe hardware trip path if a monitor error is detected.
• 00 (Agency Approval Option): Standard industrial manufacturing compliance without special regional hazardous-area certifications.

Hardware Specifications

Centralized Bus Supervision and Rotor Dynamics Integrity

The 3300/01-01-00 sits directly on the rack’s internal communications backplane to continuously monitor the health of all secondary cards. Consequently, it maintains dedicated data pathways that isolate separate monitoring slots, minimizing cross-talk suppression risks when nearby cards perform critical eddy-current probe scaling.

While individual vibration cards provide ongoing gap voltage validation (-10 VDC targets) for proximity sensors, the 3300/01 supervisor scans for system-level errors. If a fault is found, it immediately flashes error codes to prevent false trips during high-amplitude rotor dynamics events.

Frequently Asked Questions

Q: What is the main operational difference between a Normally Energized (NE) and Normally De-energized (ND) OK relay configuration?

A: The standard 01-suffix designated Normally Energized relay drops out immediately if the rack loses complete power or experiences an internal component failure. This setup establishes a fail-safe protection loop that alerts operators to system hardware issues.

Q: Can this System Monitor be mounted in any universal slot inside a 3300 chassis?

A: No. The 3300/01-01-00 requires a dedicated slot configuration. It must be installed in Slot 1 (directly to the right of the primary power supply module) to properly interface with the global data bus and control lines.

Field Installation Guidelines

• ESD Protection Protocol: Always wear a grounded static-dissipative wrist strap before sliding the monitor into the rack to safeguard the exposed edge connectors and microprocessors.
• Chassis Alignment: Slide the module smoothly along the Slot 1 guide rails. Firmly press the faceplate until the rear multi-pin plug seats completely into the backplane socket.
• Captive Screw Securement: Tighten the upper and lower front-panel captive retention screws to exactly 0.68 N-m. This step secures the card and confirms grounding path continuity through the metal chassis.
• Power-Up Verification: When powering the unit on, verify that the display runs its automatic LED lamp test and completes its internal 2-second inhibit cycle before monitoring live field alarms.
