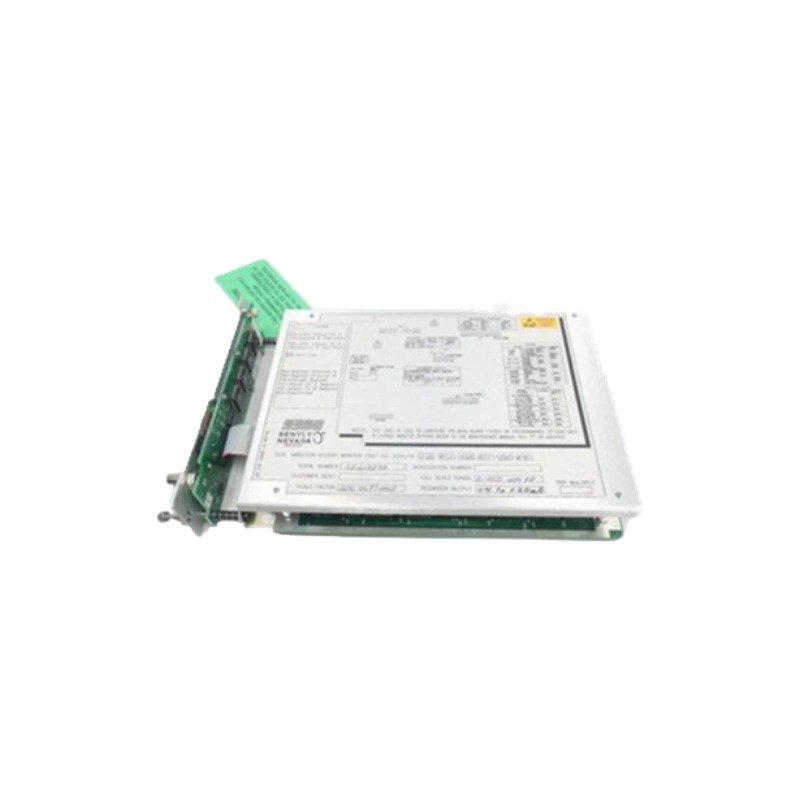

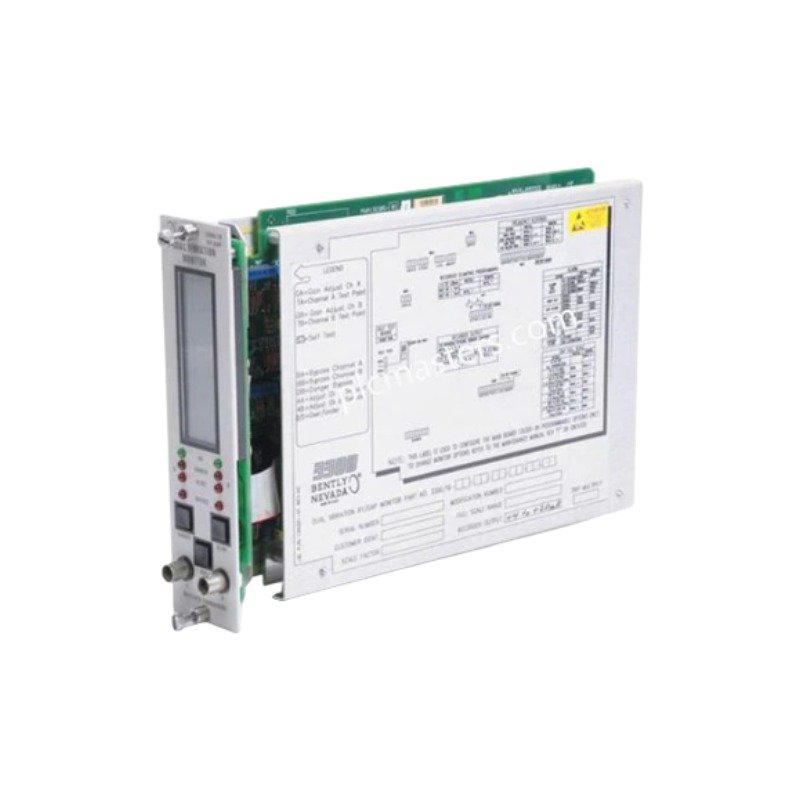

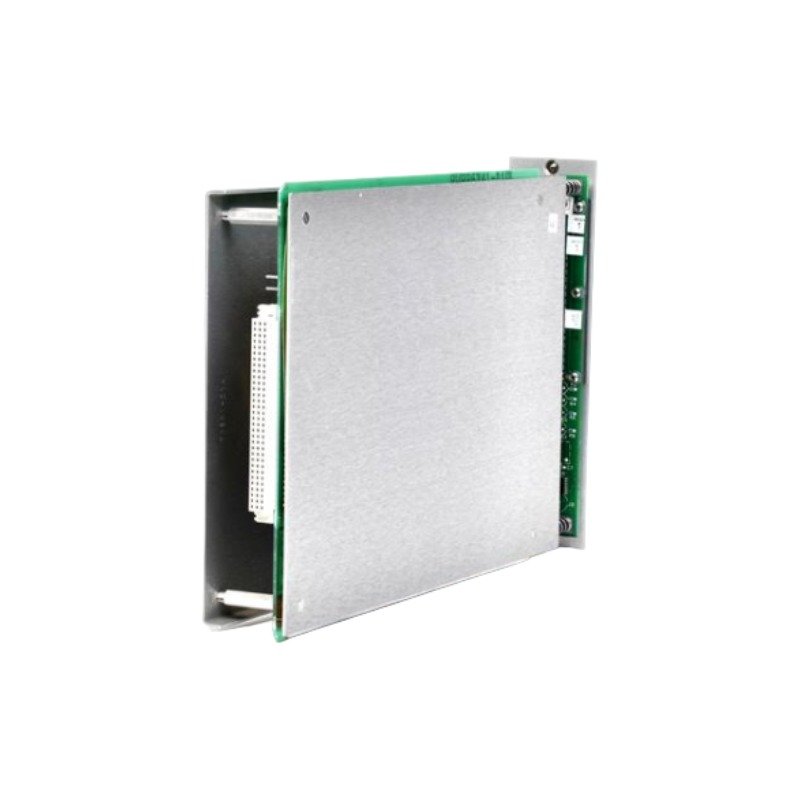

Bently Nevada 3300/16-12-01-02-03-02-00 3300 Series XY/Gap Dual Vibration Monitor
Purchase authentic Bently Nevada 3300/16-12-01-02-03-02-00 XY/Gap Dual Vibration Monitors. Brand New in original factory packaging with Original Stock and Global Shipping.
Description
Configured for continuous radial vibration processing and shaft gap monitoring in 3300 Series machinery protection racks, the Bently Nevada 3300/16-12-01-02-03-02-00 (3300/16 Dual Vibration Monitors) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
| Option | Specification |
|---|---|
| 3300/16 | Base model: XY/Gap Dual Vibration Monitor |
| -12 | Full-Scale Range Option: 0-150 um pp |
| -01 | Transducer Input Option: 3300 8 mm, 3300 XL 8 mm, or 7200 5 mm and 8 mm Proximitor Sensor (200 mV/mil) |
| -02 | Alarm Relay Option: Hermetically-sealed relays |
| -03 | Agency Approval Option: Factory Mutual (FM) / CSA / NRTL / C |
| -02 | Safety Barrier Option: Internal safety barriers |
| -00 | Trip Multiply Option: None |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3300/16-12-01-02-03-02-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 1.2 kg |
| Dimensions | 19.8 x 16.2 x 10.8 cm |
| Operating Temp | 0 deg C to +65 deg C |
| Power Consumption | 1.0 W typical (Backplane bus draw) |
| Product Type | Dual Vibration Monitors |
| Input Channel Count | 2 independent channels (Accepts two Proximitor inputs) |
| Full-Scale Range | 0-150 um peak-to-peak |
| Transducer Compatibility | 5 mm and 8 mm proximity probes (200 mV/mil sensitivity) |
| Relay Type | Hermetically-sealed alarm relays |
| Barrier Architecture | Internal safety barriers |
Eddy-Current Probe Scaling and Rotor Dynamics
The Bently Nevada 3300/16-12-01-02-03-02-00 converts incoming RF signals from dual eddy-current proximity probes into continuous voltage outputs. By conditioning signals at a standard sensitivity of 200 mV/mil, the module tracks peak-to-peak vibration while simultaneously extracting static gap voltages. Consequently, this precise signal processing enables immediate detection of rotor dynamic instability, shaft misalignment, and bearing sleeve wear across 3300 system monitor racks.
Frequently Asked Questions
Q: How does this monitor handle gap voltage validation during routine machinery inspection?
A: Technicians connect a multimeter to the front-panel coaxial buffered outputs, which allows direct verification of the DC bias gap voltage without interrupting dynamic vibration monitoring.
Q: What advantage do internal safety barriers provide within field installations?
A: Internal barriers limit electrical energy sent to hazardous areas, which eliminates the need for separate external galvanically isolated barriers inside the monitor cabinet.
Field Installation Guidelines
- First, slide the 3300/16-12-01-02-03-02-00 module firmly into the designated slot of the 3300 rack chassis and tighten the front retaining screws.
- Next, wire the field cable leads from the Proximitor sensors to the corresponding terminals on the rear terminal block.
- Additionally, ground the field cable shields at the dedicated rack grounding bus to eliminate electrical noise and suppress signal cross-talk.
- Finally, apply rack power, perform a channel zero check, and verify proper reading execution on the front panel display.
