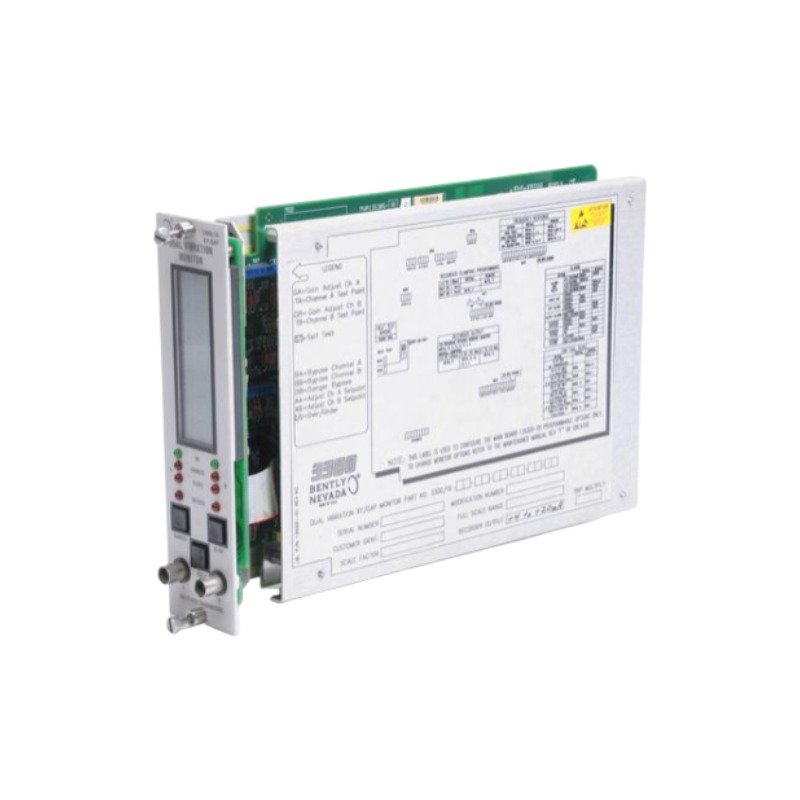

Bently Nevada 3300/16-02-01-01-00-00-02 XY/GAP Dual Vibration Monitor
Bently Nevada 3300/16-02-01-01-00-00-02 Dual Vibration Monitor. Brand New Original Stock available for Global Shipping.
Description
The Bently Nevada 3300/16-02-01-01-00-00-02, also cataloged as the 3300/16 XY/GAP Dual Vibration Monitor, operates as a dedicated hardware component for continuous radial shaft vibration and gap voltage processing within 3300 Machinery Monitoring System racks.
Suffix Breakdown & Model Matrix
| Option Code | Breakdown Description |
|---|---|
| 3300/16 | Base Model: XY/GAP Dual Vibration Monitor |
| -02 | Full-scale Range Option: 0 – 5 mils peak-to-peak (pp) |
| -01 | Transducer Input Option: 3300 8 mm, 3300 XL 8 mm, or 7200 5 mm/8 mm Proximitor Sensor (200 mV/mil) |
| -01 | Alarm Relay Option: No Relays |
| -00 | Agency Approval Option: Not required |
| -00 | Safety Barrier Option: None |
| -02 | Trip Multiply Option: 3X multiplier |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3300/16-02-01-01-00-00-02 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 8 kg (Shipping Weight) |
| Dimensions | Standard 3300 System Rack Slot Module Width |
| Operating Temp | 0 deg C to +65 deg C |
| Power Consumption | Backplane powered from 3300 System Rack Power Supply |
| Transducer Input Sensitivity | 200 mV/mil (7.87 V/mm) nominal |
| Full-Scale Measurement Range | 0 – 5 mils pp |
| Relay Configuration | No Relays installed (-01 option) |
| Trip Multiply Feature | 3X scaling factor execution |
Rotor Dynamics & Gap Voltage Processing
The 3300/16-02-01-01-00-00-02 monitor conditions dual-channel dynamic signals from proximity transducers to track rotor dynamics across orthogonal shaft axes. Integrated circuitry validates DC gap voltage targets (typically -10 VDC at mid-range) while maintaining eddy-current probe scaling accuracy across the 0 – 5 mils pp measurement window. The module provides built-in signal filtering to prevent cross-talk suppression failures between adjacent channels.
Frequently Asked Questions
Q: Can the 3300/16-02-01-01-00-00-02 monitor drive local alarm relays?
A: No, this unit is configured with Option -01 (No Relays), requiring alarm outputs to be routed across the 3300 backplane to a central relay module.
Q: Which proximity probes are compatible with the Transducer Input Option -01 configuration?
A: The Option -01 configuration accepts 200 mV/mil inputs from 3300 8 mm, 3300 XL 8 mm, and 7200 series 5 mm and 8 mm Proximitor Sensors.
Q: How does the Trip Multiply option (-02) affect alarm threshold limits during startup?
A: The 3X trip multiply setting temporarily scales alarm thresholds by a factor of 3 to accommodate transient vibration spikes during machine coast-up or resonance crossing.
Field Installation Guidelines
- Insert the 3300/16-02-01-01-00-00-02 directly into its assigned slot within the 3300 series rack, ensuring rear backplane connectors seat securely before tightening retaining screws.
- Connect shield wiring from proximity transducer extension cables to designated chassis ground terminals on the rear backplane to prevent electrical noise coupling.
- Confirm that static DC gap voltage reads -10.0 VDC (±0.5 VDC) at installation midpoint before engaging operational monitoring.
- Avoid routing proximity probe signal wiring parallel to high-voltage AC cables to prevent induced inductive interference.
Additional information
| Weight | 8.00 kg |
|---|---|
| Dimensions | 64 × 94 × 71 mm |
