Description

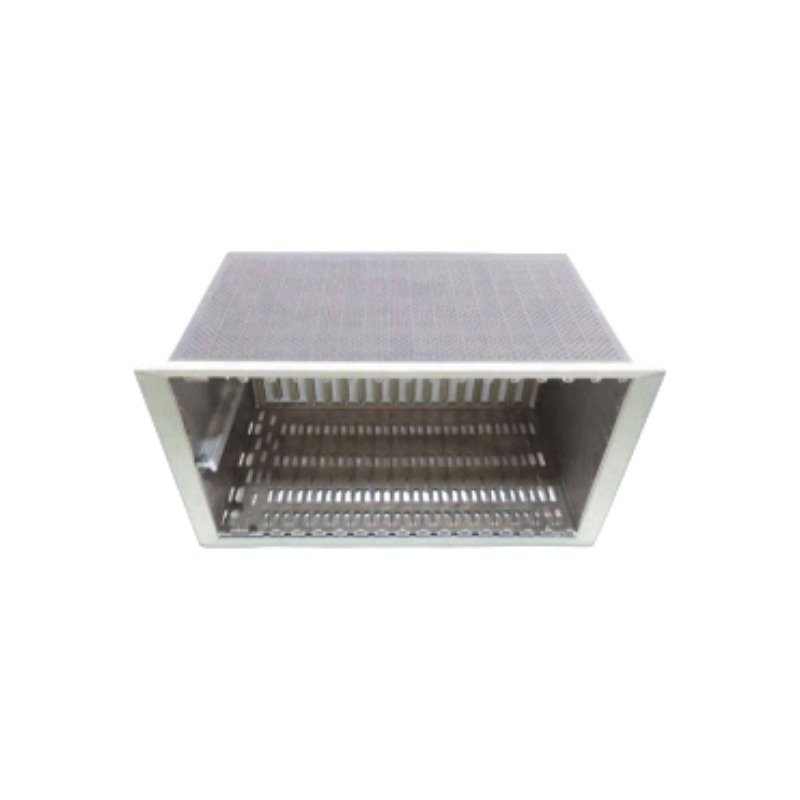

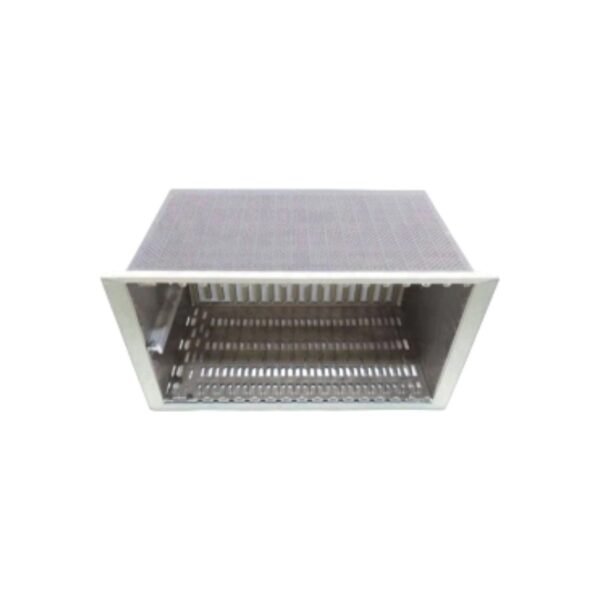

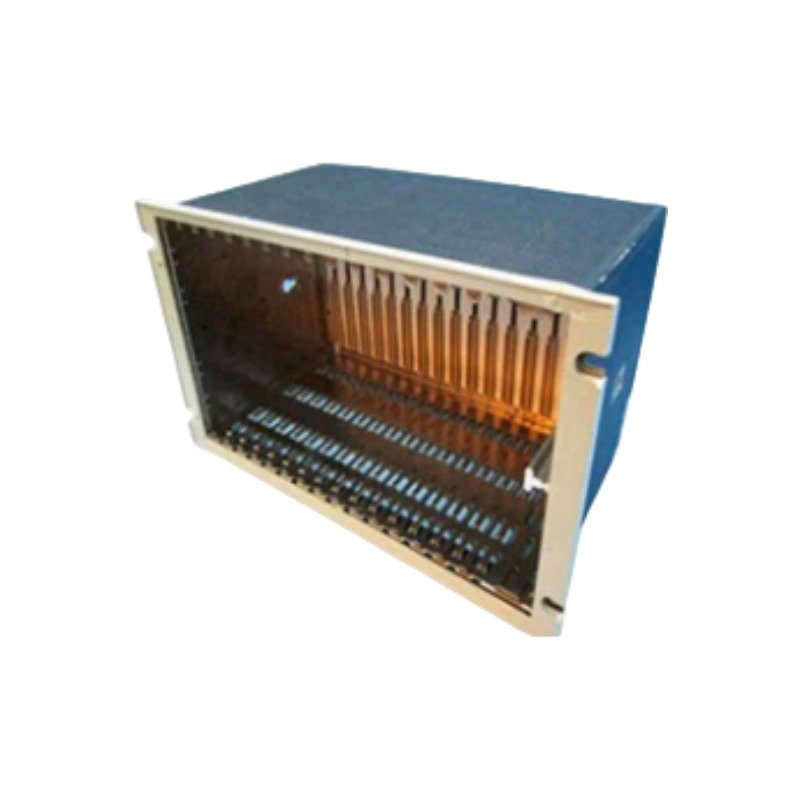

The Bently Nevada 3300/05-26-00-00, also cataloged as the 3300/05 System Rack, operates as the primary structural and electrical framework for the 3300 machinery protection system platform. Specifically, this hardware assembly establishes the mechanical mounting infrastructure and the common backplane data/power bus lines necessary to integrate, power, and interconnect the system monitor, power supplies, and individual plug-in functional monitoring modules.

Suffix Breakdown & Model Matrix

The complete alphanumeric product code structures the specific hardware selection factory-installed into this system rack assembly:

Hardware Specifications

Machinery Monitoring and Transducer Interface Dynamics

The processing hardware executes real-time eddy-current probe scaling to accurately translate physical displacement into precise electrical potentials. Consequently, gap voltage validation enforces an operational baseline of -10 VDC for standard proximity sensors, which ensures that the transducer maintains its linear range during high-frequency rotor dynamics observations. Furthermore, dynamic signal isolation circuitry constrains cross-talk suppression to under -60 dB across adjacent measurement paths, thereby preventing electrical resonance interference from corrupting critical vibration calculations.

Frequently Asked Questions

Q: How does the 3300/05 backplane handle internal power distribution from the power supply module?

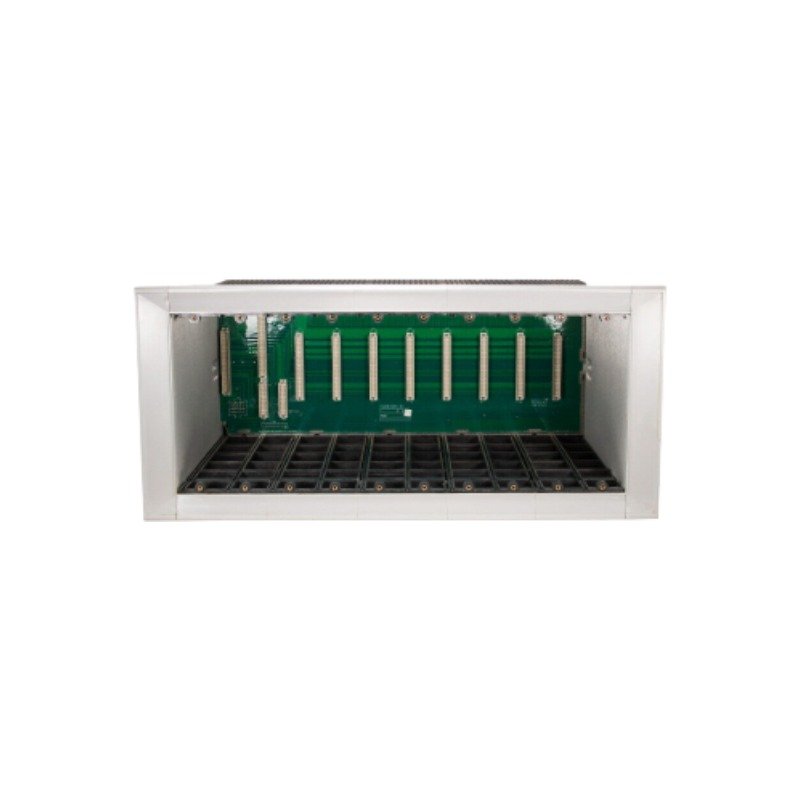

A: The backplane incorporates heavy-gauge copper traces to route high-current +5 VDC logic rails and -24 VDC transducer power lines safely across all slots. Consequently, this multi-layered printed circuit assembly prevents voltage sags and isolates digital processing noise from sensitive analog input tracks.

Q: What specific hardware characteristic defines the Suffix 26 Panel Mount configuration?

A: The Suffix 26 design includes an integrated perimeter bezel on the front faceplate of the chassis frame. Consequently, installation technicians can slide the rack directly into an instrument panel cutout and secure it from the front, forming a flush-mounted finish suitable for control room console integration.

Field Installation Guidelines

1. Panel Cutout and Chassis Mounting: Prepare a clean, rectangular cutout matching the designated 19-inch panel installation dimensions. Slide the rack into the cutout opening, ensure the front integrated flange seats tightly against the outer panel surface, and secure the frame using standard mounting fasteners.
2. Shield and Drain Wire Isolation: Guide all field sensor wiring through the rear terminal blocks. Next, ensure that the outer shield braids do not touch the chassis frame at intermediate junctions, and instead terminate the drain wires solely at the designated terminal pins to block stray eddy-current loops.
3. Thermal Clearance Requirements: Mount the rack assembly to allow completely unhindered vertical air convection. Specifically, maintain a minimum open envelope space of 88 mm (2U) above and below the rack boundary lines to prevent excessive heat buildup around the interior card components.
