Description

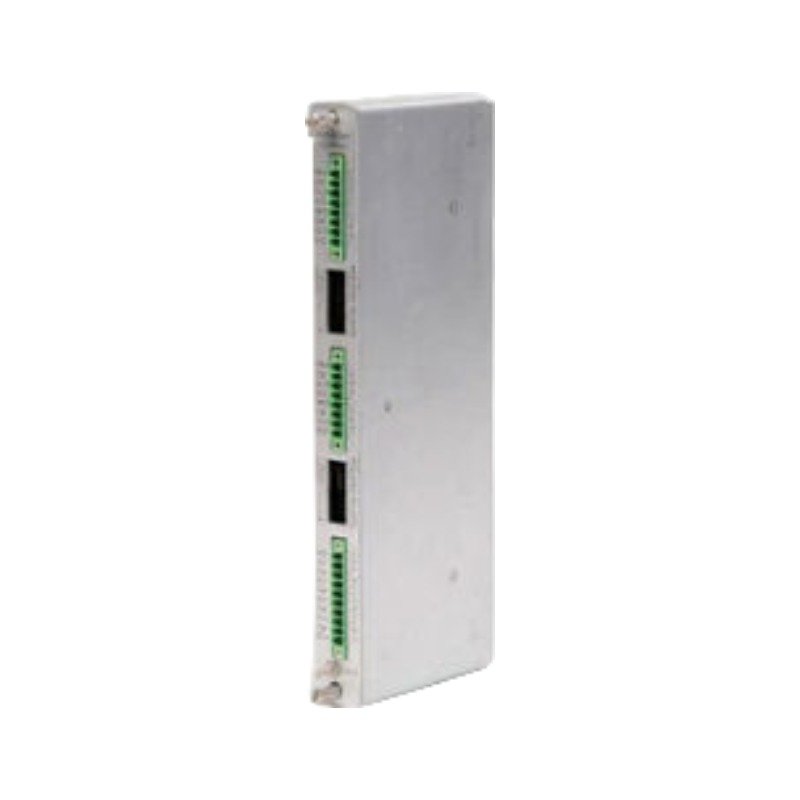

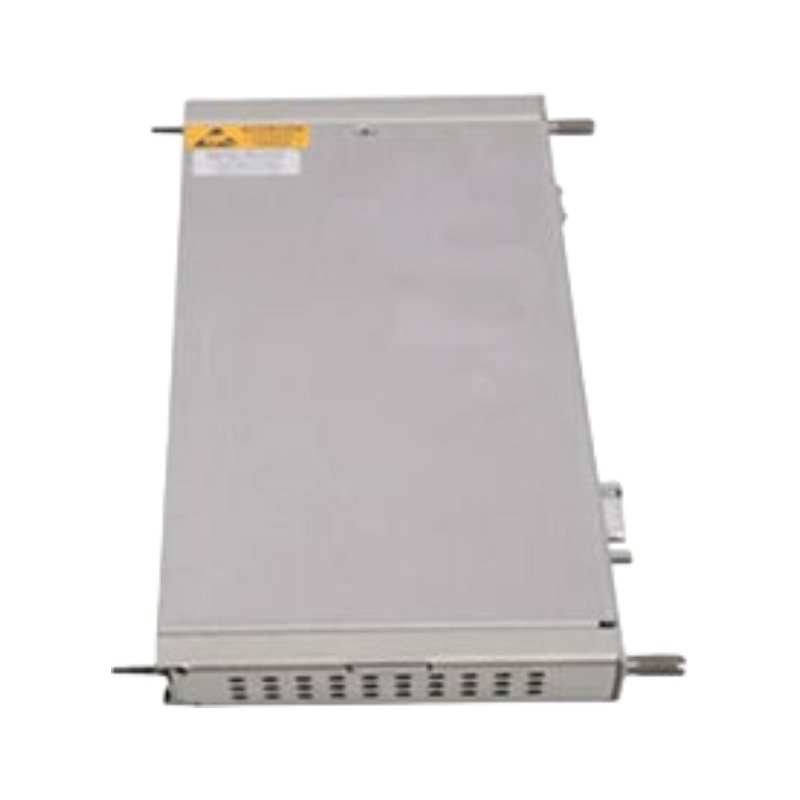

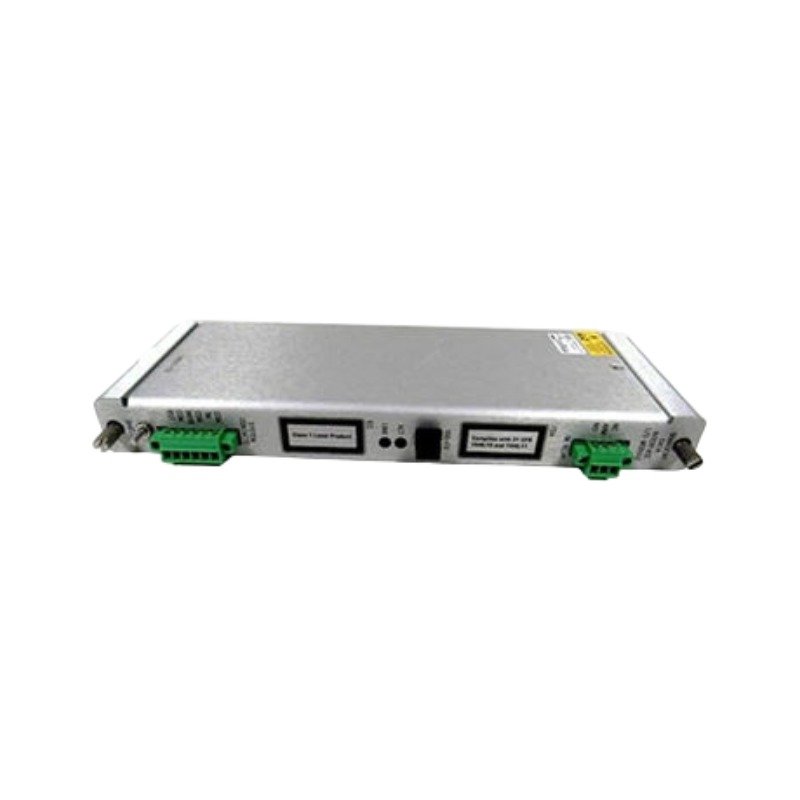

The Bently Nevada 176499-02, also cataloged as the 176499-02 Electronic Overspeed Detection Monitor, operates as a dedicated hardware component for continuous rotational velocity evaluation and machine trip safety execution within 3500 Machinery Protection System platforms.

Hardware Specifications

Hardware-Level Voting and Rotor Dynamics Speed Processing

The module implements hardware-layer Triple Modular Redundant (TMR) 2oo3 voting logic across three discrete speed channels. Consequently, this configuration isolates the overspeed decision matrix from individual probe disruptions, minimizing the potential for false mechanical trips. While auxiliary monitoring modules in adjacent chassis slots maintain independent eddy-current probe scaling configurations, this dedicated speed processor provides constant gap voltage validation (-10 VDC targets) across its coupled proximity probes to ensure input circuit health. Furthermore, integrated low-pass filtering networks achieve high-efficiency cross-talk suppression, preventing inductive pulse interference from corrupting sub-harmonic rotor dynamics analysis.

Frequently Asked Questions

Q: Does the 176499-02 monitor module support online hot-swap operations while the machinery remains running?

A: Yes, personnel can remove or insert individual 176499-02 modules within a TMR system rack while the remaining redundant units continue processing active transducer inputs. This allows for live hardware replacement without interrupting overspeed protection loops.

Q: How do field technicians handle a 176499-02 module that triggers a “Configuration Failure” (Event 301) diagnostic alert?

A: Technicians must establish a physical communication link via the rack interface and download a fresh configuration file using the 3500 Rack Configuration Software. If the internal logic registers continue to indicate a failure post-download, personnel must replace the module.

Field Installation Guidelines

• Slot Placement Constraints: Install the 176499-02 card into designated TMR-compatible monitor positions within the 3500/05 rack, typically keeping the three redundant modules in sequential, contiguous slots.
• Cable Shield Continuity: Conclude the braided signal shields exclusively at the main system chassis grounding bus bar. Terminating the shields at both ends introduces ground loops that can compromise microvolt pulse accuracy.
• Terminal Screw Tightening: Secure the corresponding rear I/O block terminal connections using a calibrated torque tool adjusted to exactly 0.56 N-m to mitigate mechanical vibration loosening.
• Proximity Gap Optimization: Adjust the physical mounting gap of the field speed sensors to ensure the resting DC output registers within the linear operating range, matching the required gap voltage calibration baseline.
