Description

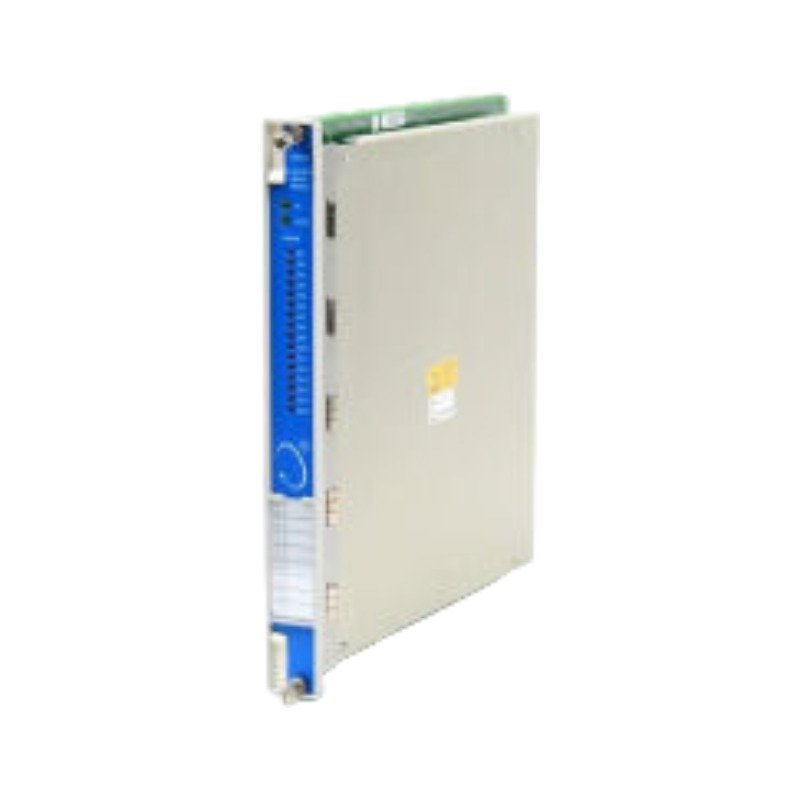

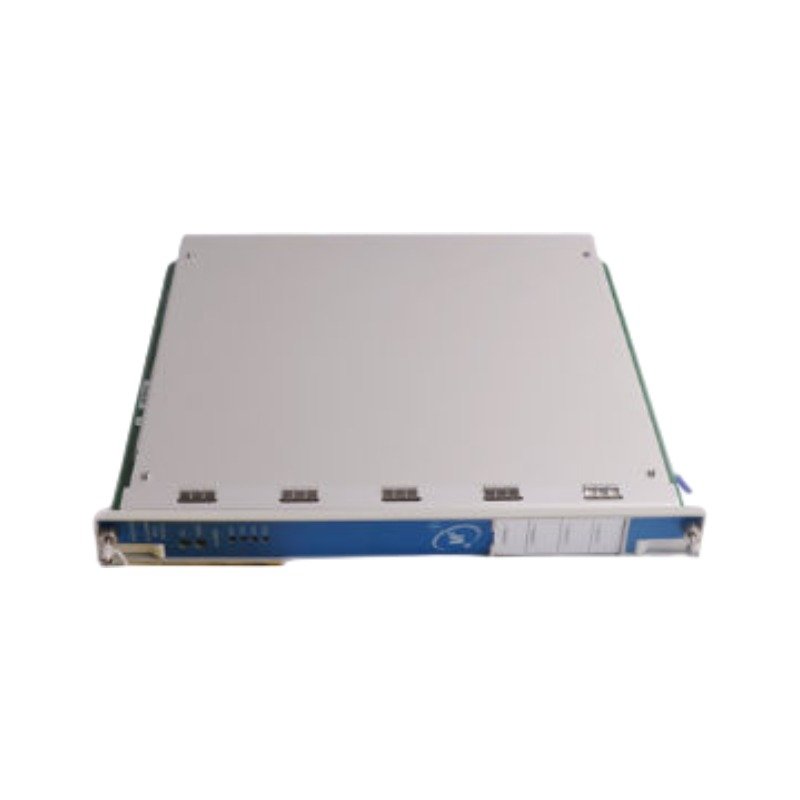

Configured for high-reliability emergency trip execution and alarm voting logic within 3500 Machinery Protection System racks, the Bently Nevada 149986-02 (149986-02 4-Channel Relay Control Module) provides direct physical/electrical execution.

Hardware Specifications

Machinery Monitoring and Relay Drive Logic Integration

The control card processes digitized alarm states directly from the 3500 rack backplane bus, driving external machinery shutdown loops based on precise hazard parameters. Consequently, this discrete execution bypasses software-layer latencies to guarantee fast trip responses. While adjacent instrumentation units handle dynamic eddy-current probe scaling and continuous gap voltage validation (-10 VDC targets), this module concentrates purely on complex Boolean voting logic (AND/OR combinations). Furthermore, the internal layout incorporates dedicated shielding paths to deliver cross-talk suppression, preventing inductive switching transients from corrupting microvolt-level rotor dynamics measurement loops.

Frequently Asked Questions

Q: Does the 149986-02 module house the physical field wiring terminals on its faceplate?

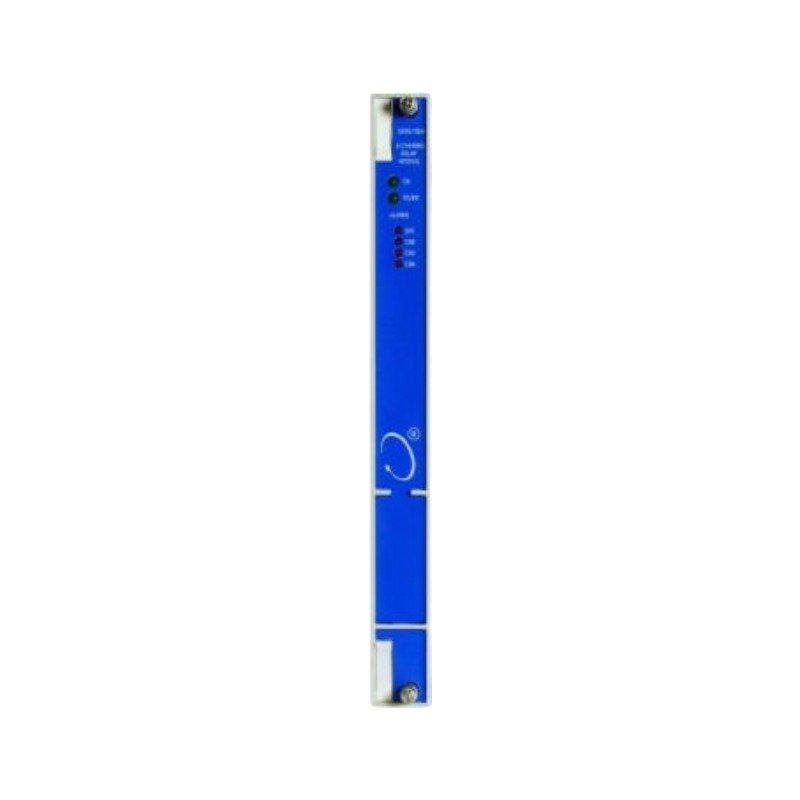

A: No, the 149986-02 operates strictly as the front-slot main processor card containing the drive intelligence and status LEDs. Personnel must pair this card with a matching rear-slot I/O module (such as the 125720 series) to access the physical screw terminal connection blocks.

Q: How do technicians alter the operational state of a relay channel between Normally Energized and Normally De-energized configurations?

A: Technicians use the 3500 Rack Configuration Software utility to set the baseline state. The software updates the onboard logic parameters, changing how the circuit board energizes the selected coil during active operation.

Field Installation Guidelines

• Chassis Slot Selection: Place the module into any available full-height universal slot located to the right of the Slot 2 Transient Data Interface (TDI) position.
• ESD Prevention Protocol: Always wear a grounded static-dissipative wrist strap connected to the dedicated chassis grounding plug before handling the circuit card edge connections.
• Voltage Spacing Limitations: When deploying the card in ATEX/IECEx Zone 2 hazardous areas, limit the switched terminal voltage to 30 VDC or 30 Vac maximum to satisfy safety creepage and clearance metrics.
• Fastener Torque Rating: Engage the top and bottom front-panel captive retention screws completely, torquing them to 0.68 N-m to verify frame ground continuity and prevent vibration dislodgement.
