Description

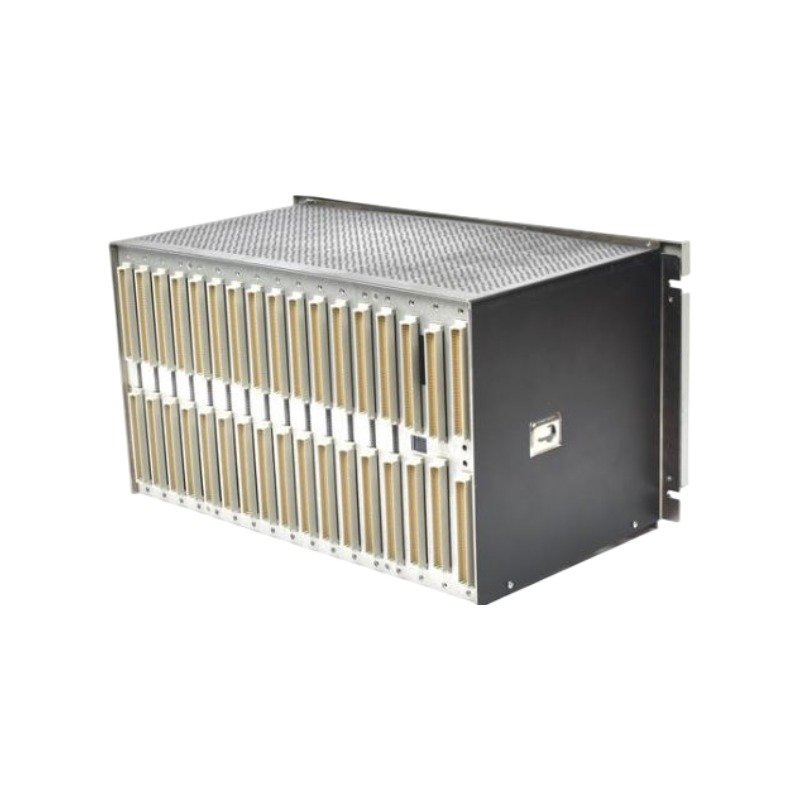

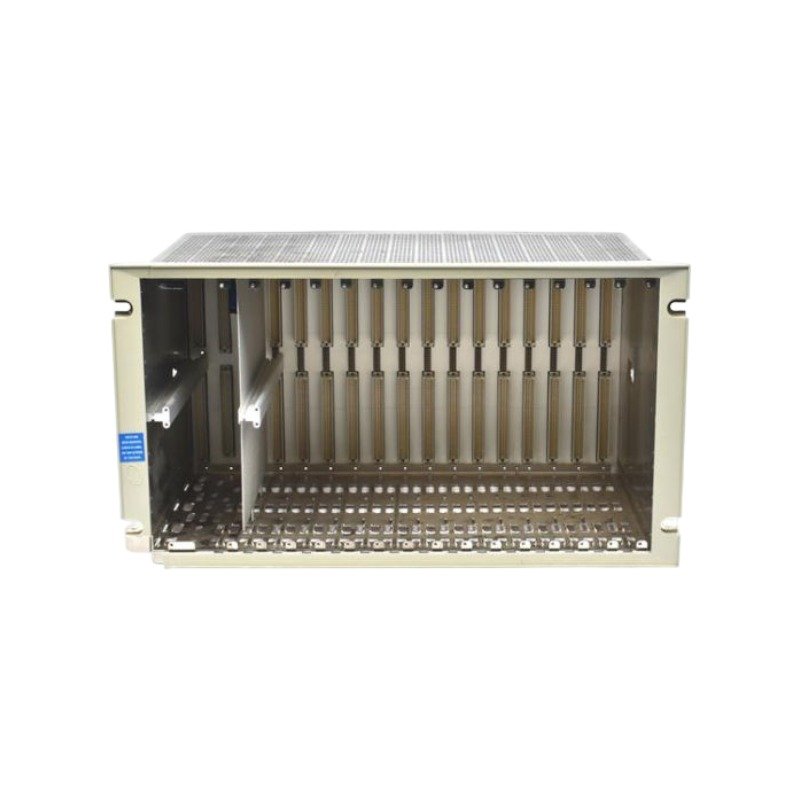

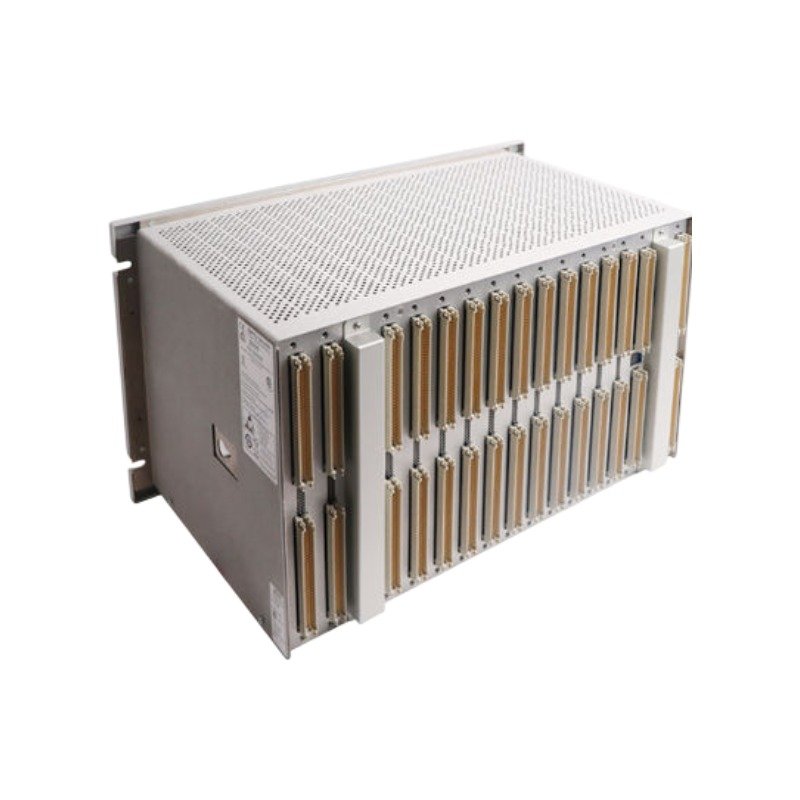

The Bently Nevada 3500/05-02-04-01-00-00, also cataloged as the 3500/05 12-Inch Mini-Rack Assembly, operates as a dedicated hardware component for mechanical structural housing, internal bus data transmission, and power distribution within 3500 Machinery Protection System platforms.

Suffix Breakdown & Model Matrix

The alphanumeric matrix structural layout specifies the physical chassis volume, mounting parameters, and agency regulatory compliance markers for this specific asset assembly:

• 02 (Rack Size Option): 12-inch Mini-Rack chassis structural profile featuring 7 usable module slots.
• 04 (Mounting Option): Panel Mount configuration optimized for Mini-Rack dimensions (rear-side I/O module access).
• 01 (Agency Approval Option): CSA-C-US certification for Class I, Division 2 hazardous area installations.
• 00 (Reserved Option): None.
• 00 (European Compliance Option): No CE mark certification requirement designated.

Hardware Specifications

Backplane Power Distribution and Rotor Dynamics Infrastructure

The integrated multilayer backplane establishes physical point-to-point data pathways linking the instrumentation nodes. Consequently, the copper architecture maintains absolute isolating paths to handle independent eddy-current probe scaling configurations without risk of adjacent loop cross-talk. The structural power distribution paths deliver clean, low-ripple VDC lines directly to individual slots, validating stable input supply levels to achieve uncorrupted gap voltage validation (-10 VDC targets). Furthermore, the physical chassis design implements massive built-in grounding planes to ensure systemic cross-talk suppression during high-frequency transient rotor dynamics recording windows.

Frequently Asked Questions

Q: How many power supply modules can the 3500/05 Mini-Rack accommodate simultaneously?

A: The Mini-Rack chassis retains two dedicated physical power slots on the far-left side of the backplane structure. This architecture supports either a single power supply configuration or a dual, redundant power supply module arrangement to prevent rack blackout.

Q: Do the 7 usable slots include the physical positions dedicated to the Power Supply and Rack Interface Modules?

A: No, the 7 usable slots are completely independent from the infrastructure slots. The Power Supply modules and the 3500/22M Rack Interface Module occupy separate, dedicated hardware slots situated on the extreme left boundary of the chassis.

Field Installation Guidelines

• Panel Cutout Execution: Machine a rectangular opening measuring exactly 205.7 x 271.8 mm into the instrument panel enclosure to accept the Mini-Rack body.
• Clamping Frame Securement: Tighten the integrated side panel mounting clamps evenly using a calibrated screwdriver to secure the frame against the panel face plate.
• Earth Module Integration: Install a 3500/04-01 Internal Barrier Earthing Module into a dedicated position if the instrumentation loop employs internal intrinsic safety barriers.
• Rear Access Boundary Maintenance: Preserve a minimum open clearance depth of 130 mm directly behind the rear backplane interface to allow unhindered field wiring termination and I/O module swapping.
