Description

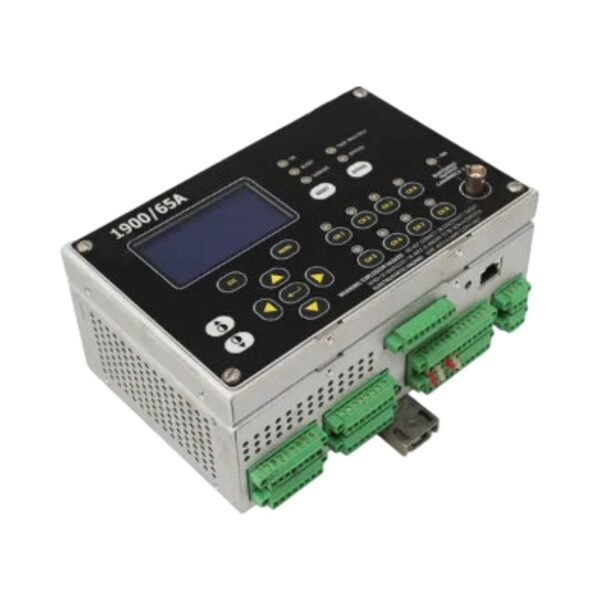

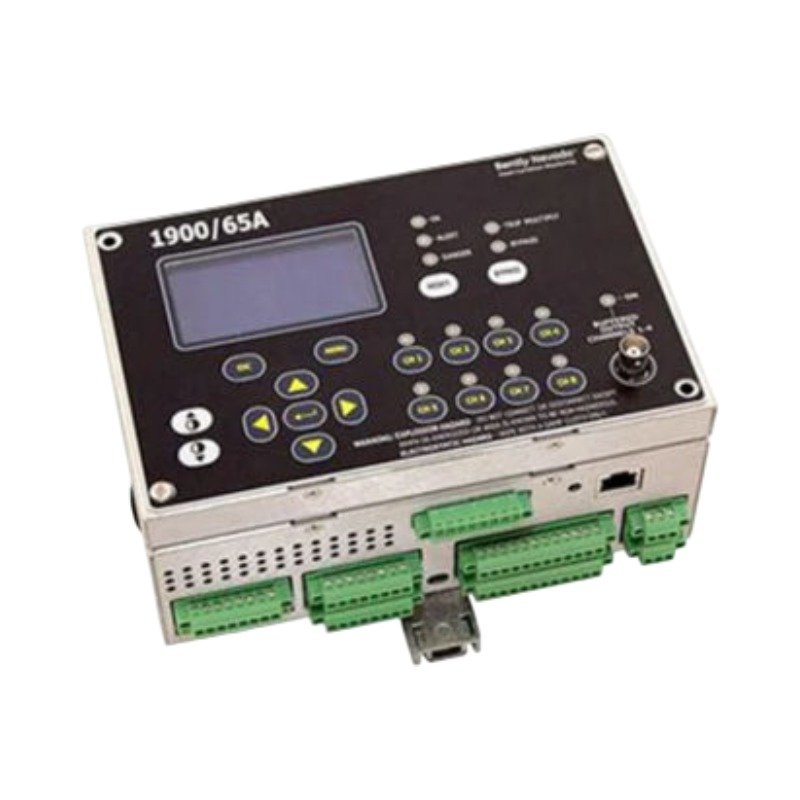

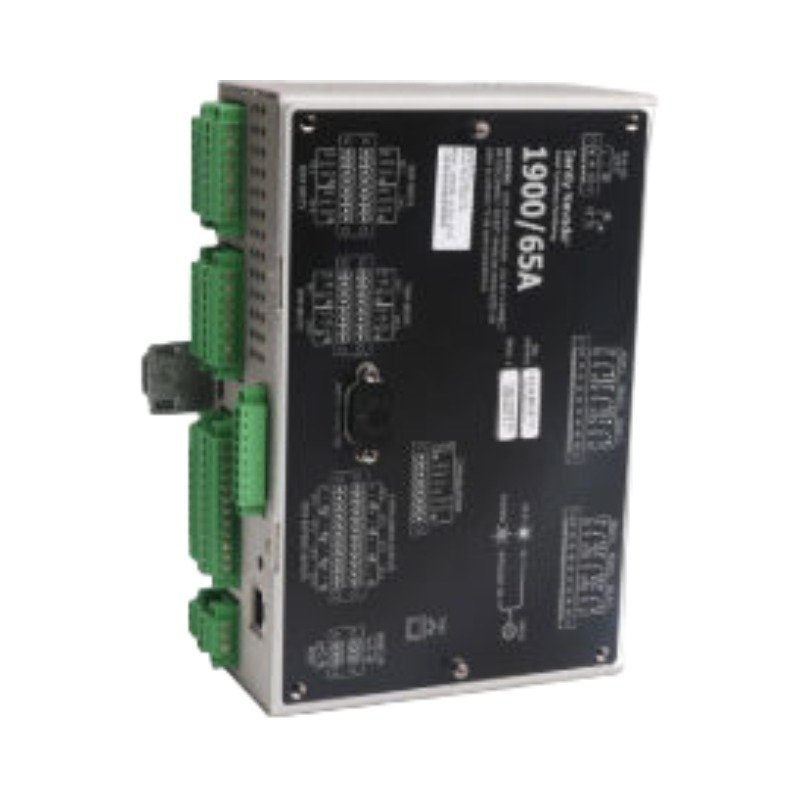

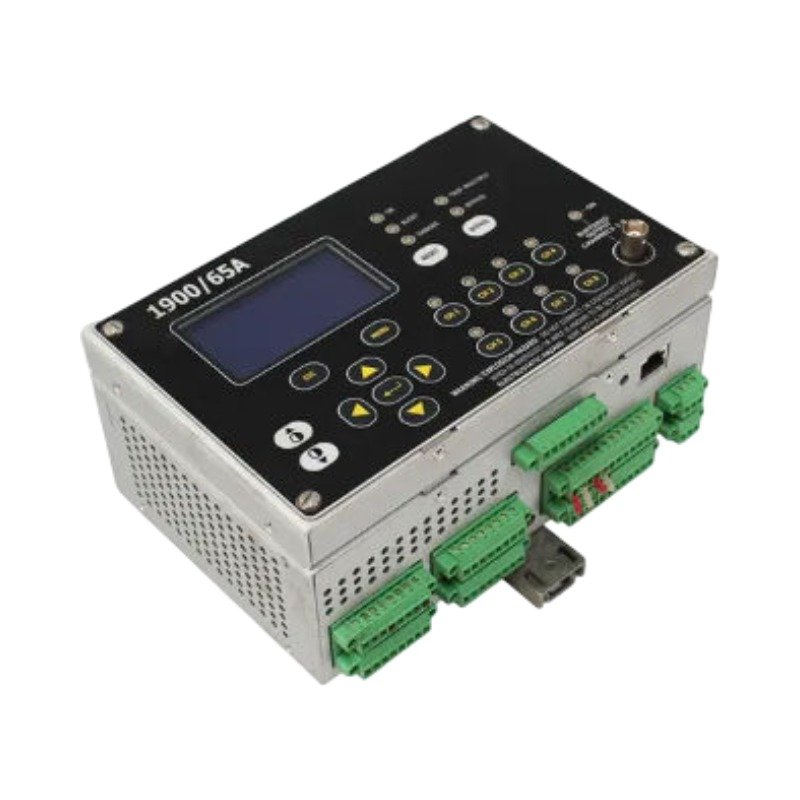

The Bently Nevada 172323-01, functioning as the core processor component for the 1900/65A General Purpose Equipment Monitor, operates as a standalone hardware module for continuous machinery vibration and temperature tracking. Unlike chassis-restricted systems, this compact architecture handles localized asset defense on smaller, non-critical machine trains. Consequently, the independent monitor manages signal parsing and emergency shutdown execution directly at the machine skids without relying on central backplane processing loops.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The configuration software modifies the active front-end inputs to enable precise eddy-current probe scaling configurations alongside structural casing sensors. Therefore, the internal processor handles immediate gap voltage validation (-10 VDC targets) for dynamic proximity tracks while simultaneously assessing raw inputs from 2-wire or 3-wire accelerometers. Furthermore, the localized terminal configuration provides strict cross-talk suppression between high-frequency vibration lines and adjacent thermal inputs. As a result, this separation stabilizes structural monitoring layers to ensure dependable calculation of rotor dynamics and mechanical thermal trends.

Frequently Asked Questions

Q: Can maintenance teams execute live hot-swap procedures on the 172323-01 standalone unit?

A: No, this device operates as an independent, self-contained monitoring controller rather than a plug-in rack card. Therefore, field engineers must isolate the main 24 VDC field supply wire block and power down the module completely before performing any hardware replacement actions.

Q: How do the six onboard programmable relays behave during sensor fault conditions?

A: The internal logic evaluates sensor validity independently from machine alerts. Consequently, if a field cable breaks, the system triggers Not OK fault status registers to inhibit accidental safety shutdowns while preserving the remaining relay interlocks for active tracking loops.

Field Installation Guidelines

1. Bolt the integrated bracket assembly onto a secure panel face or click the chassis layout onto a rigid 35 mm DIN-rail track inside a clean enclosure.
2. Tighten the localized terminal block wiring screws to a torque rating of 0.6 N-m to verify secure electrical connectivity and avoid intermittent instrumentation faults.
3. Keep delicate low-voltage sensor input paths and 4-20 mA links segregated from adjacent alternating current power feeds by a minimum distance of 300 mm.
4. Establish a single-point operational instrument ground by terminating all incoming coaxial shield leads cleanly at the internal chassis ground rail.
