Description

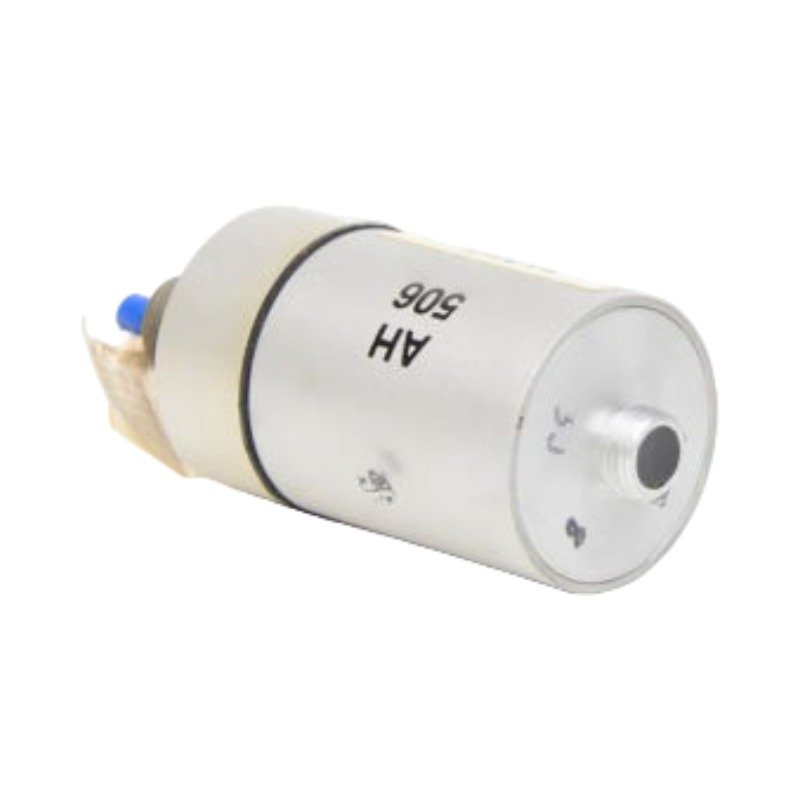

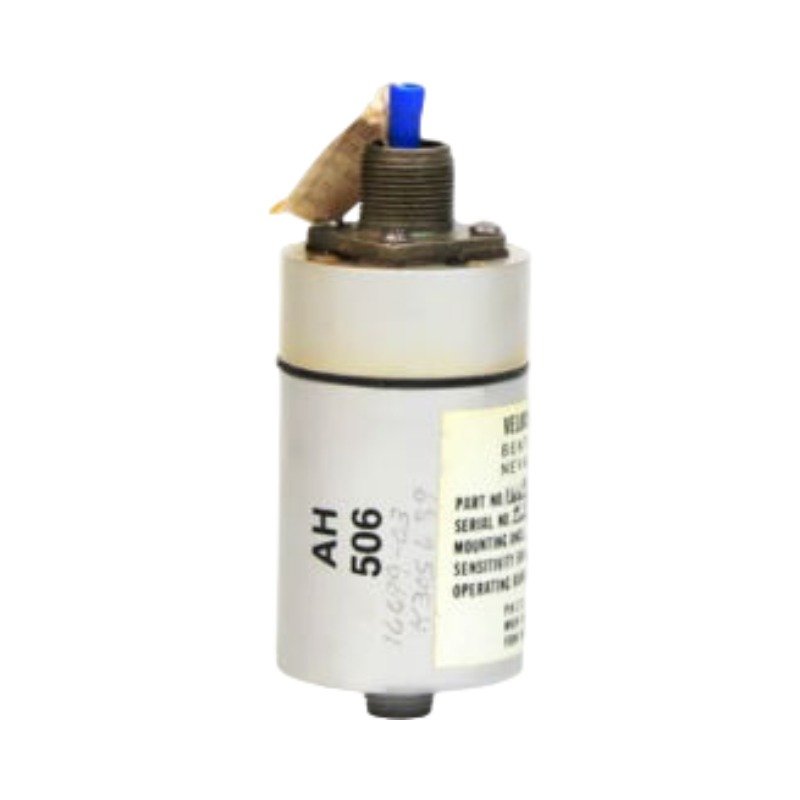

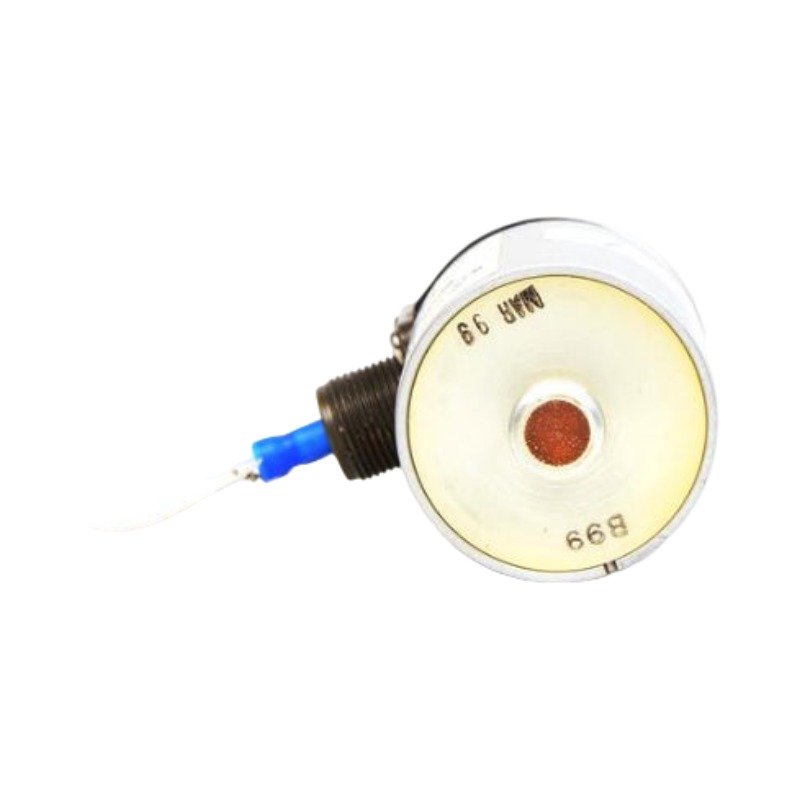

The Bently Nevada 16699-03, also cataloged as the Bently Nevada 16699 Velocity Seismoprobe, operates as a dedicated hardware component for absolute casing and structural vibration velocity tracking within machinery protection networks. The self-generating, moving-coil sensor converts mechanical casing motion directly into a proportional analog voltage output. Consequently, this design provides localized diagnostic monitoring layers with immediate telemetry updates, eliminating processing packet latency across rotating machinery loops.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The transducer mechanics incorporate a suspended spring-mass coil moving through a permanent magnetic field to facilitate precise eddy-current probe scaling configurations during simultaneous casing-to-shaft validation. Therefore, the self-generating design produces reliable voltage waves directly from velocity changes, allowing operators to execute background loop validation without drawing current from active external rails. Furthermore, the thick stainless steel outer casing delivers strict cross-talk suppression against external electromagnetic interference. As a result, this shielding protects weak low-frequency instrumentation tracks to secure clean structural signal tracking across complex rotor dynamics.

Frequently Asked Questions

Q: Does this passive velocity seismoprobe require external excitation voltage to operate?

A: No, the transducer uses an internal electromagnetic induction matrix that acts completely passive. Consequently, it requires a 0.0 W power profile and drives output tracking telemetry directly down the sensor loop lines into the matching rack monitor cards without an external supply.

Q: What mounting limits apply to the 16699-03 configuration code?

A: The -03 suffix specifies a vertical orientation matrix requiring the sensor body to stand upright at a 90 deg angle relative to a horizontal reference line. Mounting the transducer outside the permitted +/-2.5 deg variance tilts the internal suspension mechanism, shifting calibration parameters and skewing accuracy profiles.

Field Installation Guidelines

1. Thread the sensor body directly onto the prepared structural surface, ensuring that the vertical alignment remains locked within the strict 90 deg requirement.
2. Torque the physical mounting stud base to a target mechanical threshold of 13.5 N-m to maintain rigid physical coupling with the machine casing frame.
3. Fasten field wiring connections cleanly at the top-mounted 3-screw terminal block, capping terminal points with insulating sleeves to block moisture intrusion.
4. Separate external transducer signal links from active alternating current power lines by a minimum clearance boundary of 300 mm to suppress inductive noise coupling.
